Orlando LS, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Navigation System
Navigation System

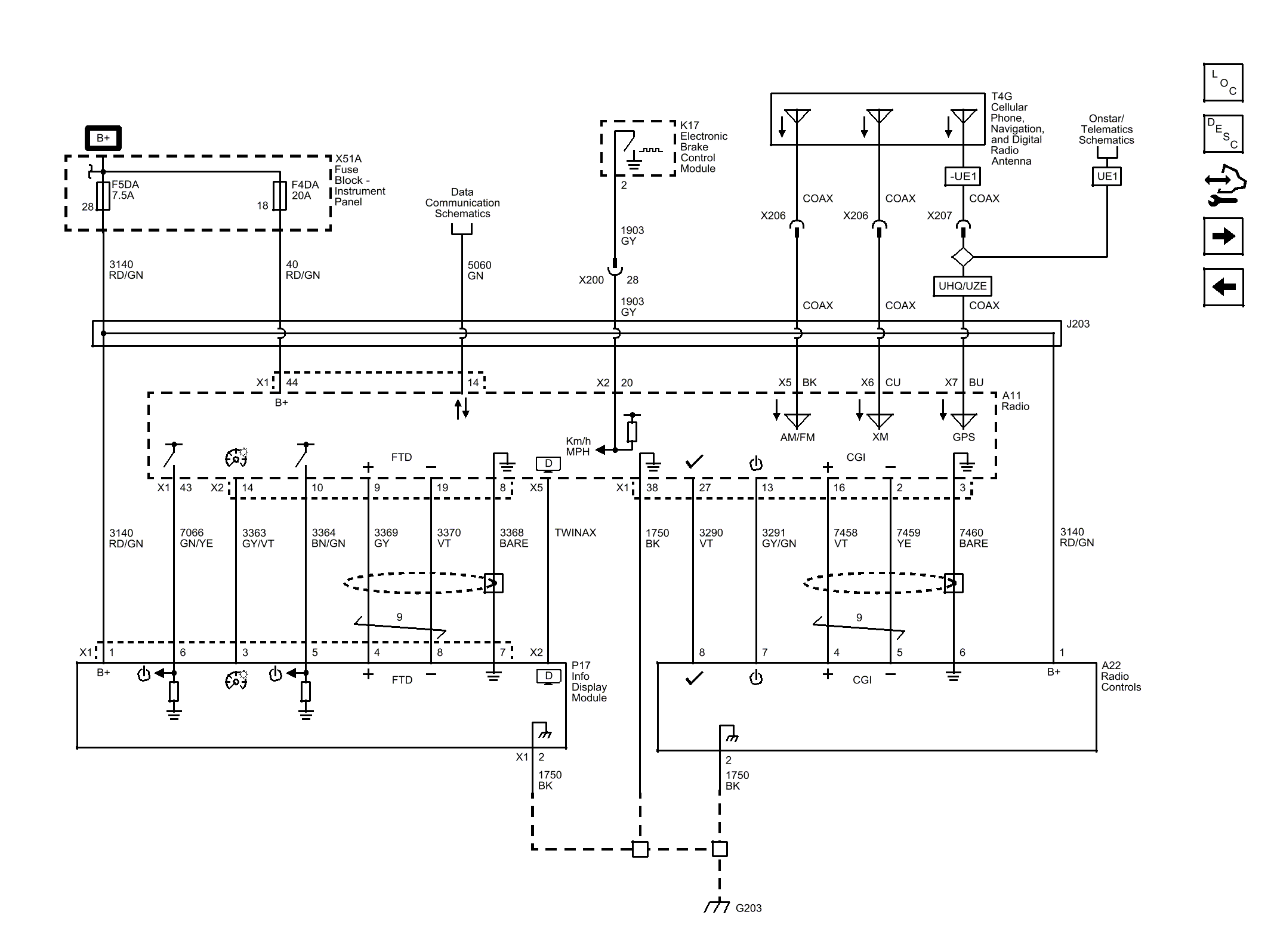

Fig 1: Navigation System Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
