Local Interconnect Network (LIN) Serial Data

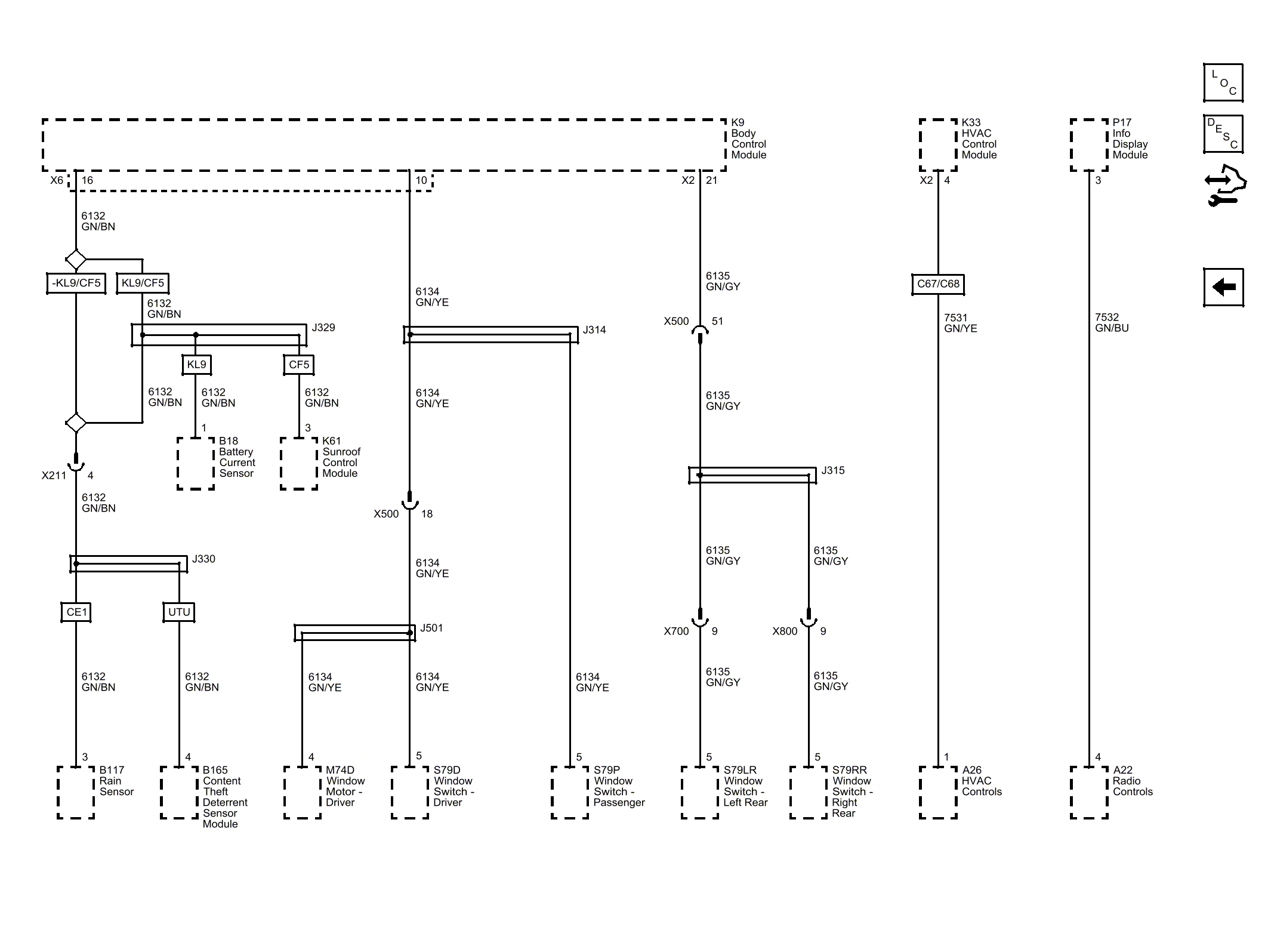

Fig 1: Local Interconnect Network (LIN) Serial Data Wiring Schematics

GM3255463

Courtesy of GENERAL MOTORS COMPANY
