Radio Volume Compensator Interior Noise Microphone Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

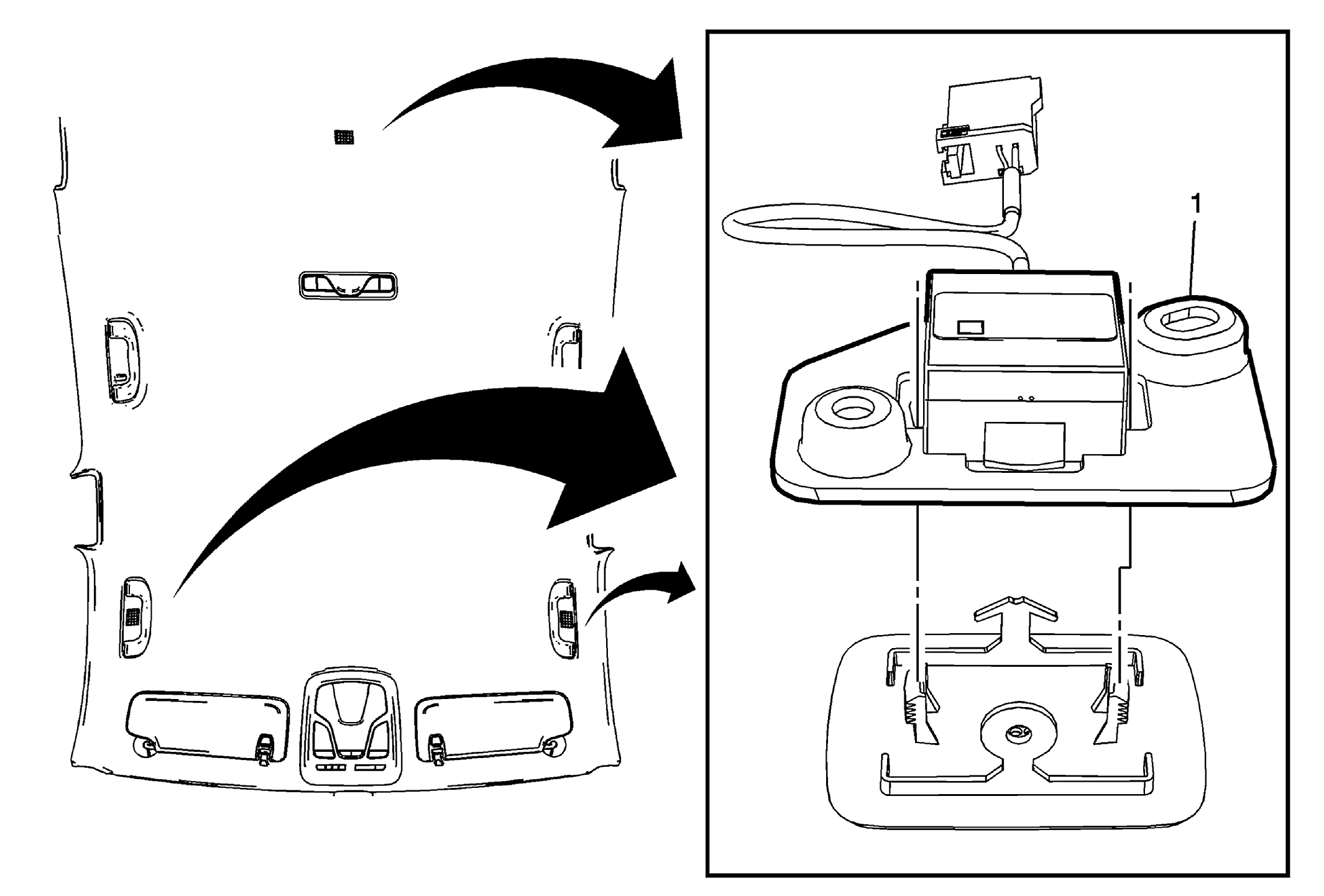

Fig 1: Radio Volume Compensator Interior Noise Microphones

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (With Sunroof) , Headlining Trim Panel Replacement (Without Sunroof) .
1	Radio Volume Compensator Interior Noise Microphone (Qty: 3) Procedure Disconnect the electrical connectors. Unsnap the microphone from the grille.

Callout

Component Name

Preliminary Procedure
Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (With Sunroof) , Headlining Trim Panel Replacement (Without Sunroof) .

Radio Volume Compensator Interior Noise Microphone (Qty: 3)

Procedure

Disconnect the electrical connectors.
Unsnap the microphone from the grille.
