Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

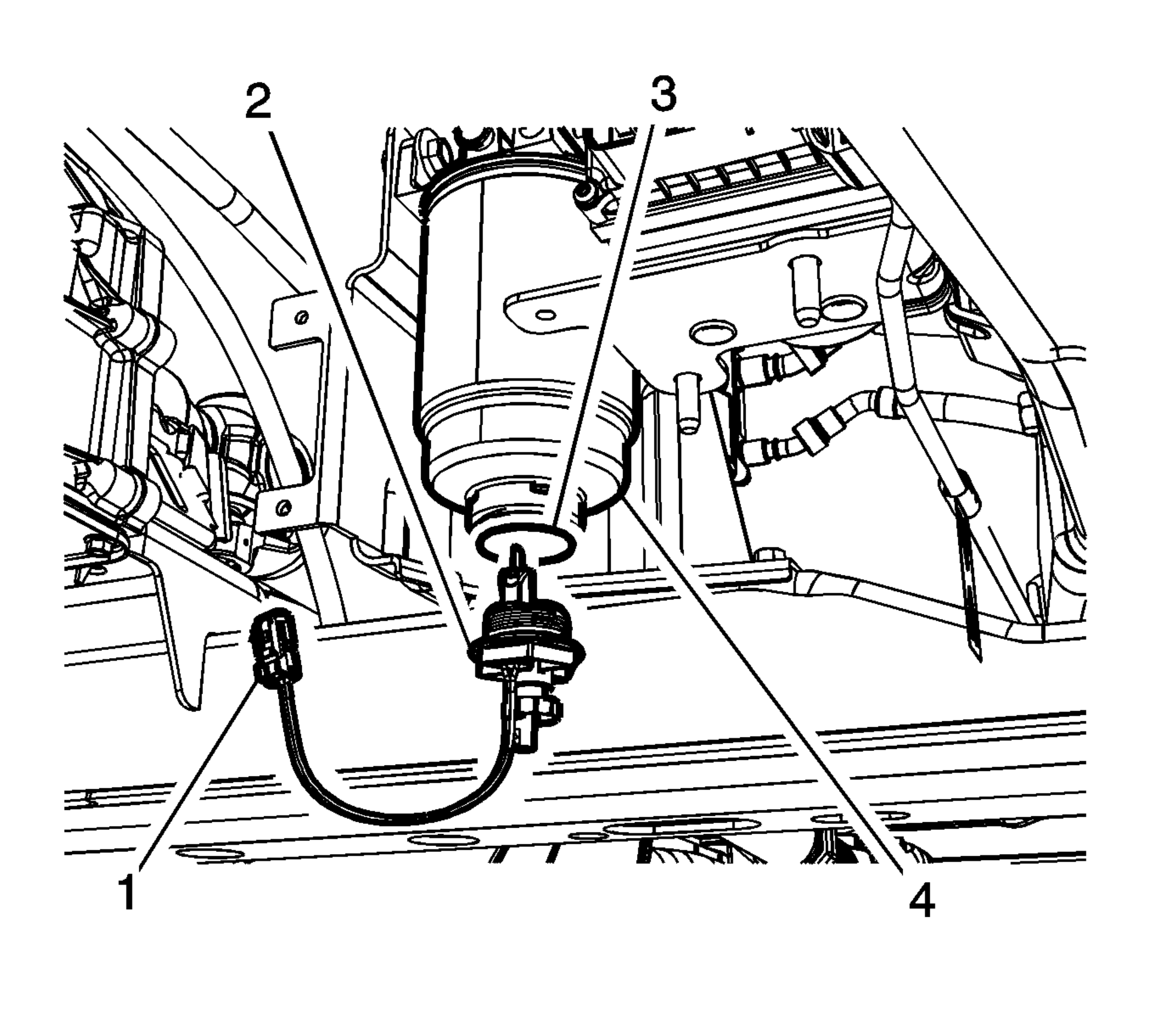

  2. Fig 1: Water in Fuel Indicator Sensor
    GM2742322Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector (1).
  3. Disconnect the rubber drain hose.
  4. Remove the water in fuel indicator sensor (2) and o-ring (3) from the fuel filter (4).
