Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

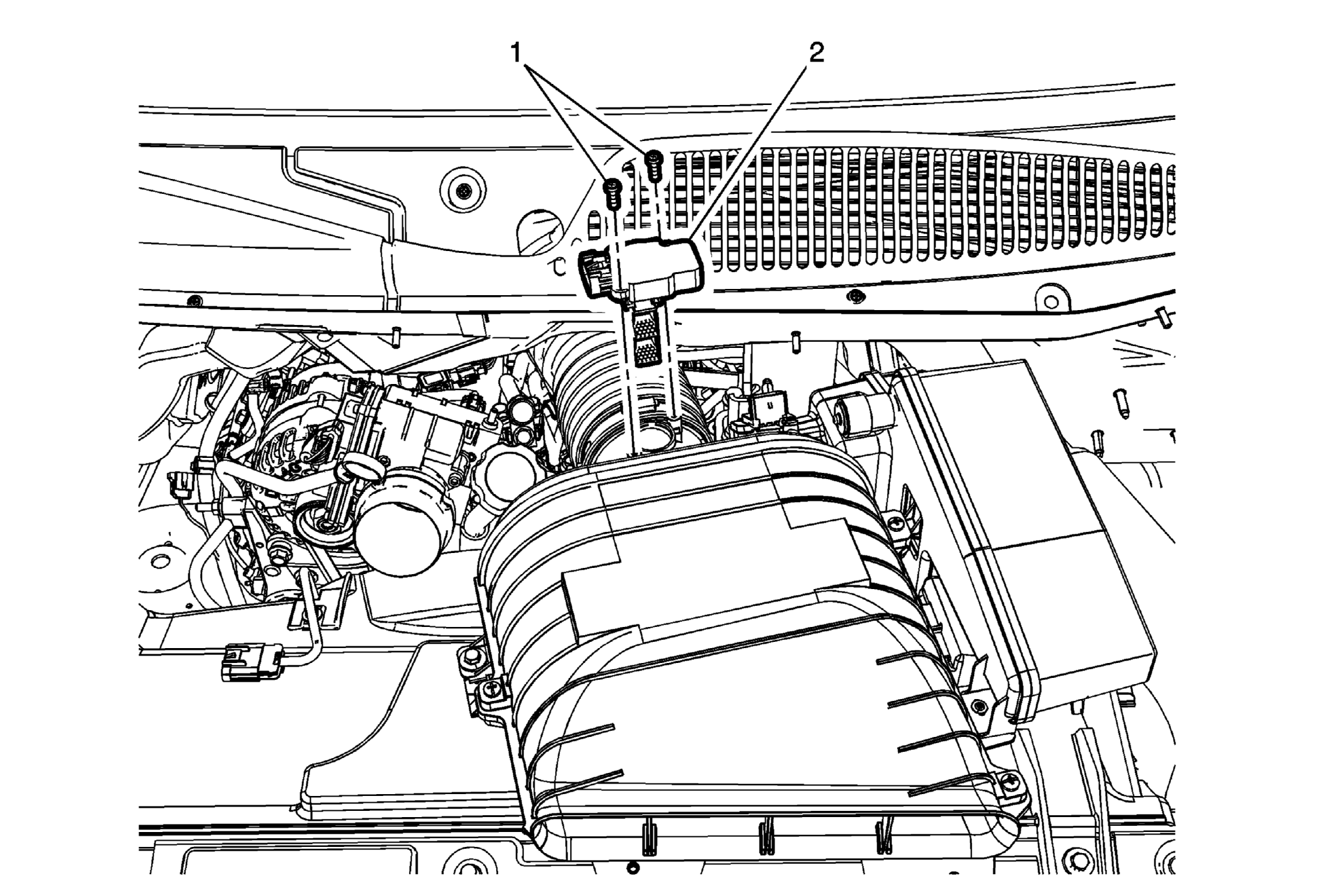

Fig 1: Mass Airflow Sensor With Intake Air Temperature Sensor
GM2853355Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor with Intake Air Temperature Sensor Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the harness connector from the sensor.
Tighten
8 (71 lb in)
2 Mass Airflow Sensor with Intake Air Temperature Sensor
Procedure
Disconnect the electrical connector.
