Installation Procedure

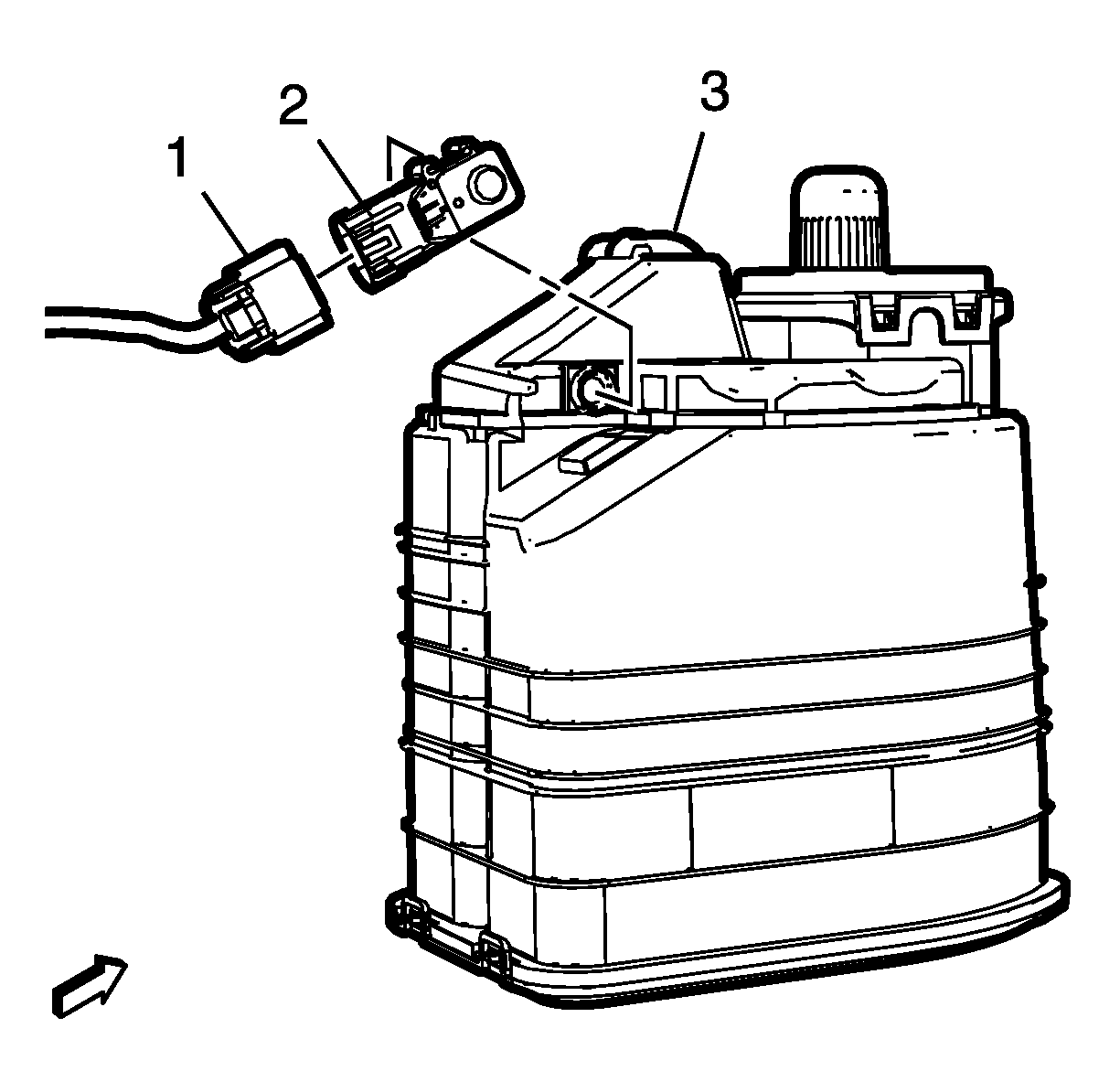

    Fig 1: Fuel Tank Pressure Sensor Electrical Connector And Fuel Tank Pressure Sensor
    GM3398186Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank pressure sensor (2) to the evaporative emission canister (3)
  2. Connect the fuel tank pressure sensor electrical connector (1) to the fuel tank pressure sensor (2).
  3. Raise the fuel tank to its original position.
    4. Fig 2: Fuel Tank Straps
    GM2028244Courtesy of GENERAL MOTORS COMPANY
  4. Install the 2 fuel tank straps (1).
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the 2 fuel tank strap bolts (2) and tighten to 22 (16 lb ft).
  6. Remove the suitable adjustable jack.

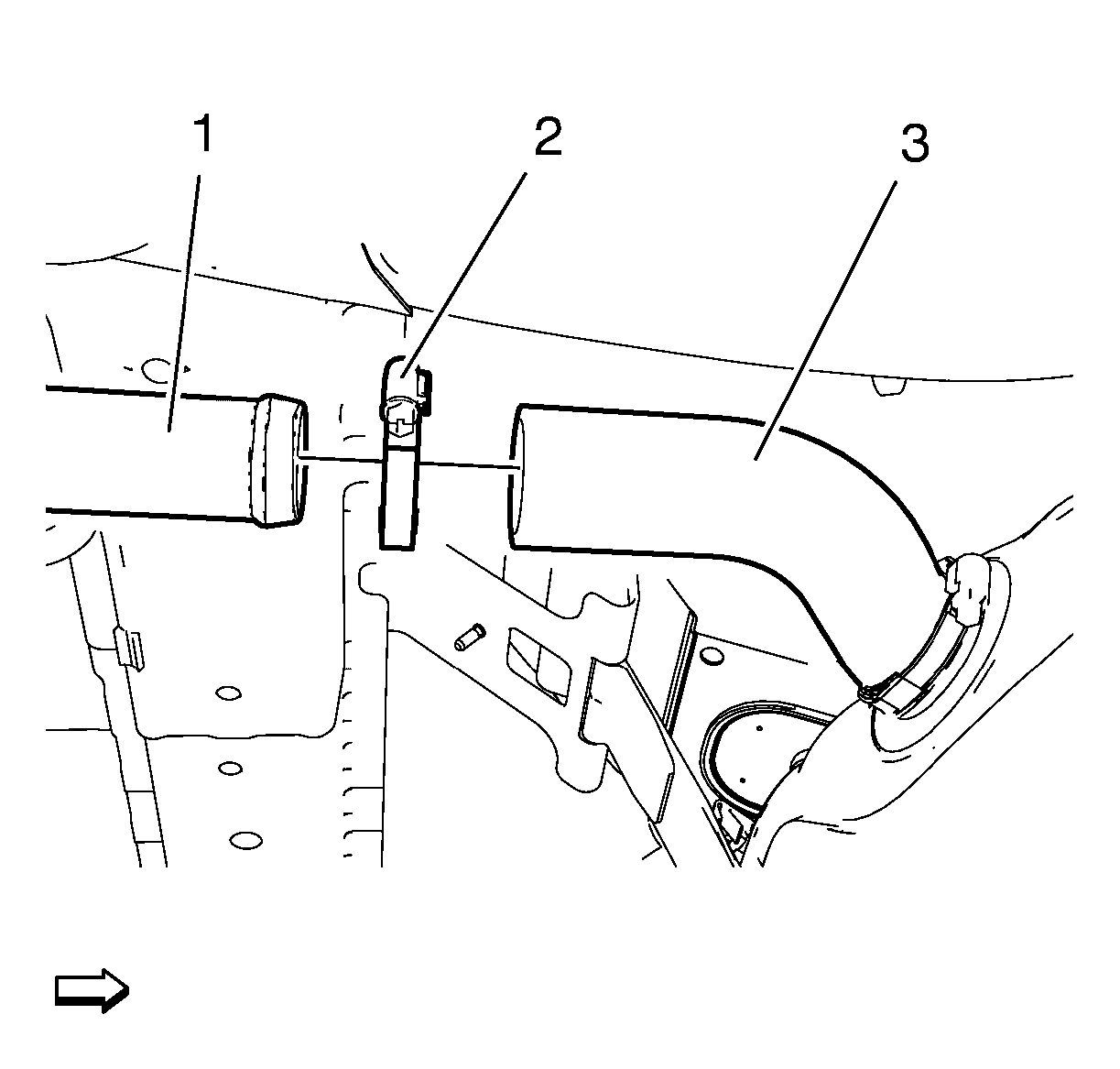

    7. Fig 3: Fuel Tank Filler Pipe
    GM2028238Courtesy of GENERAL MOTORS COMPANY
  7. Install the fuel tank filler hose (3) to the fuel tank filler pipe (1).
  8. Install the clamp (2).
  9. Lower the vehicle.
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
