Powertrain Expansion Bus (LUZ) Wiring Schematics

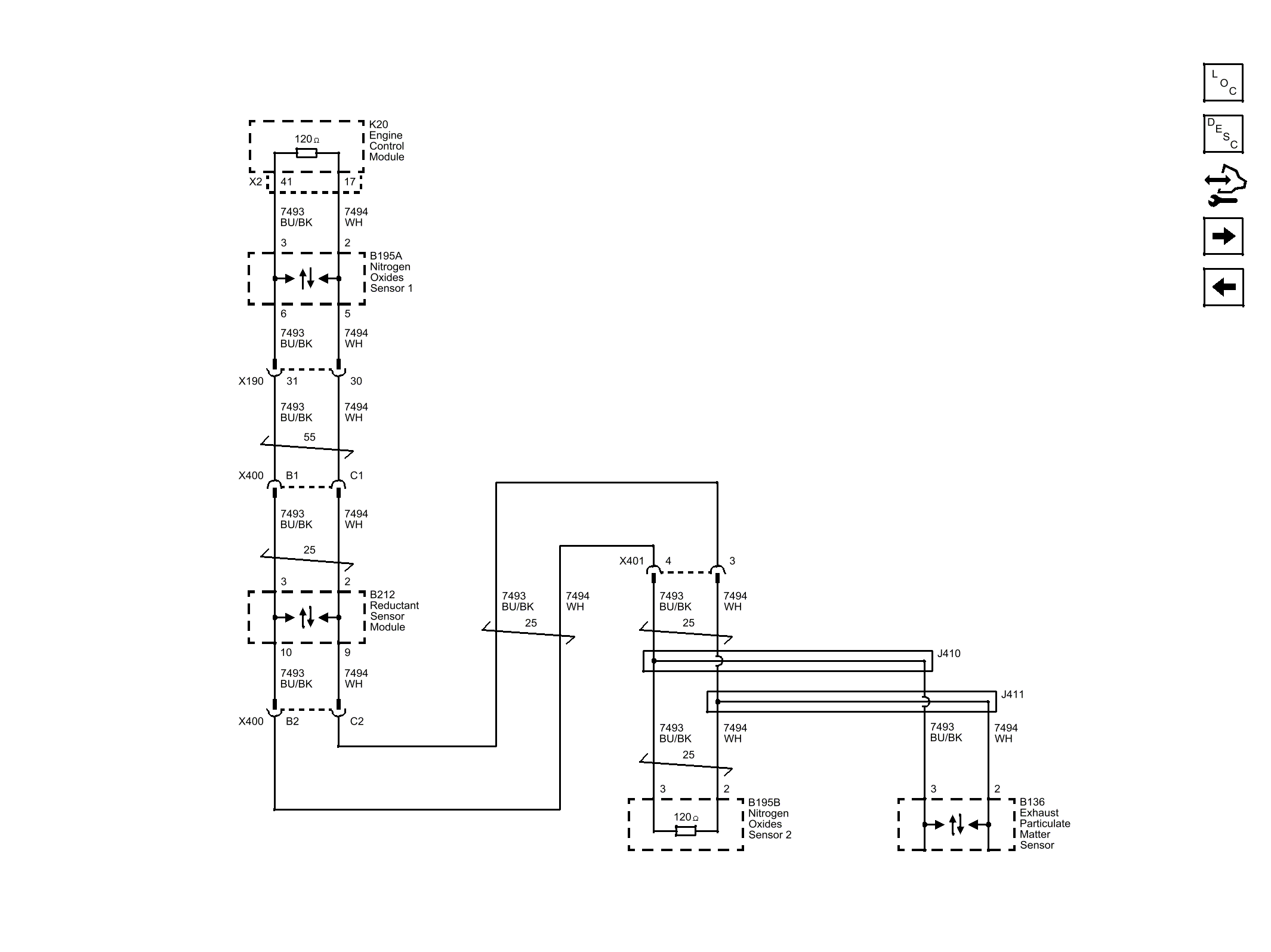

Fig 1: Powertrain Expansion Bus (LUZ) Wiring Schematic

GM3460795

Courtesy of GENERAL MOTORS COMPANY
