Low Speed GMLAN Wiring Schematics

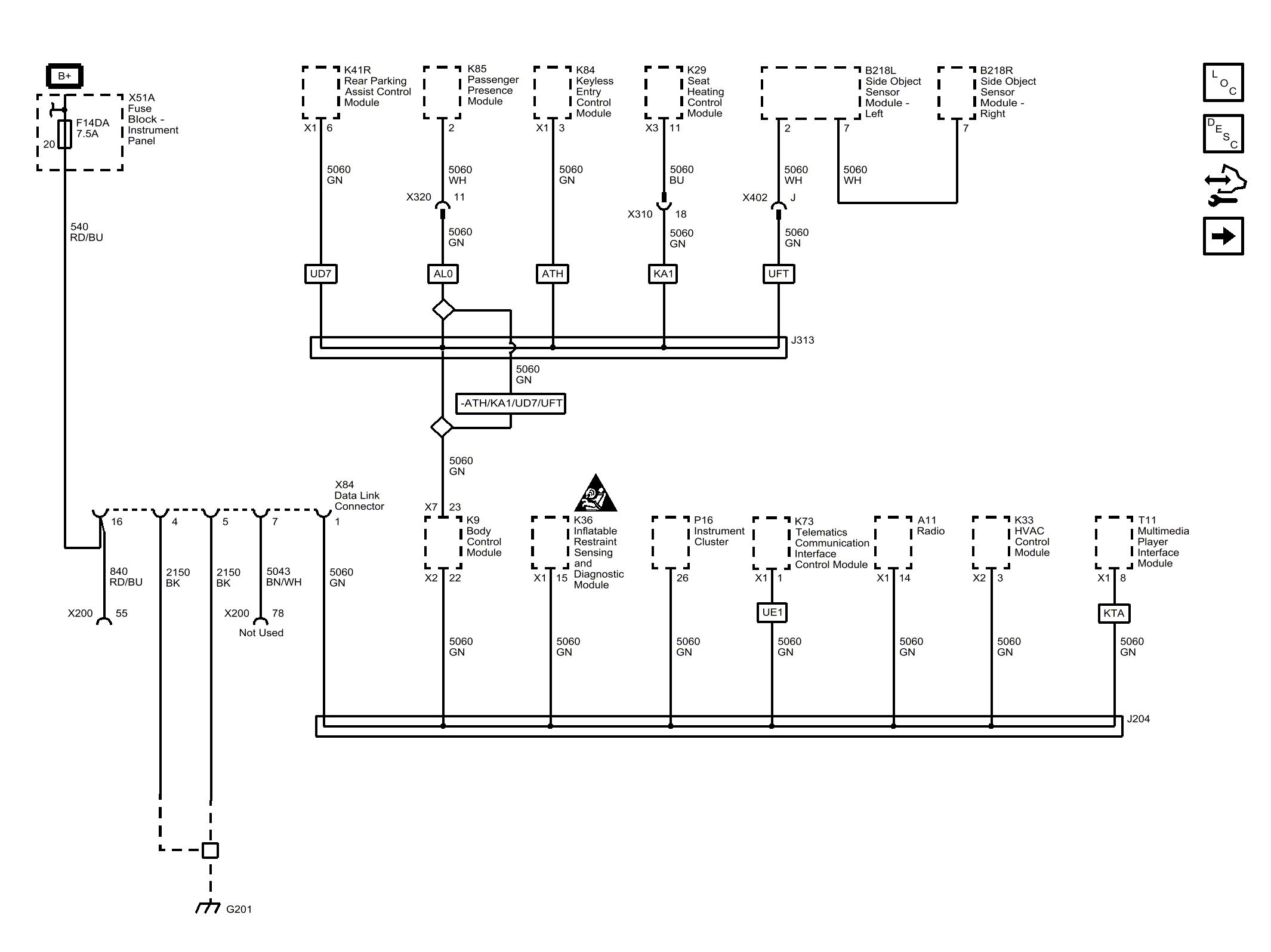

Fig 1: Low Speed GMLAN Wiring Schematic

GM3250643

Courtesy of GENERAL MOTORS COMPANY
