High Speed GMLAN Wiring Schematics

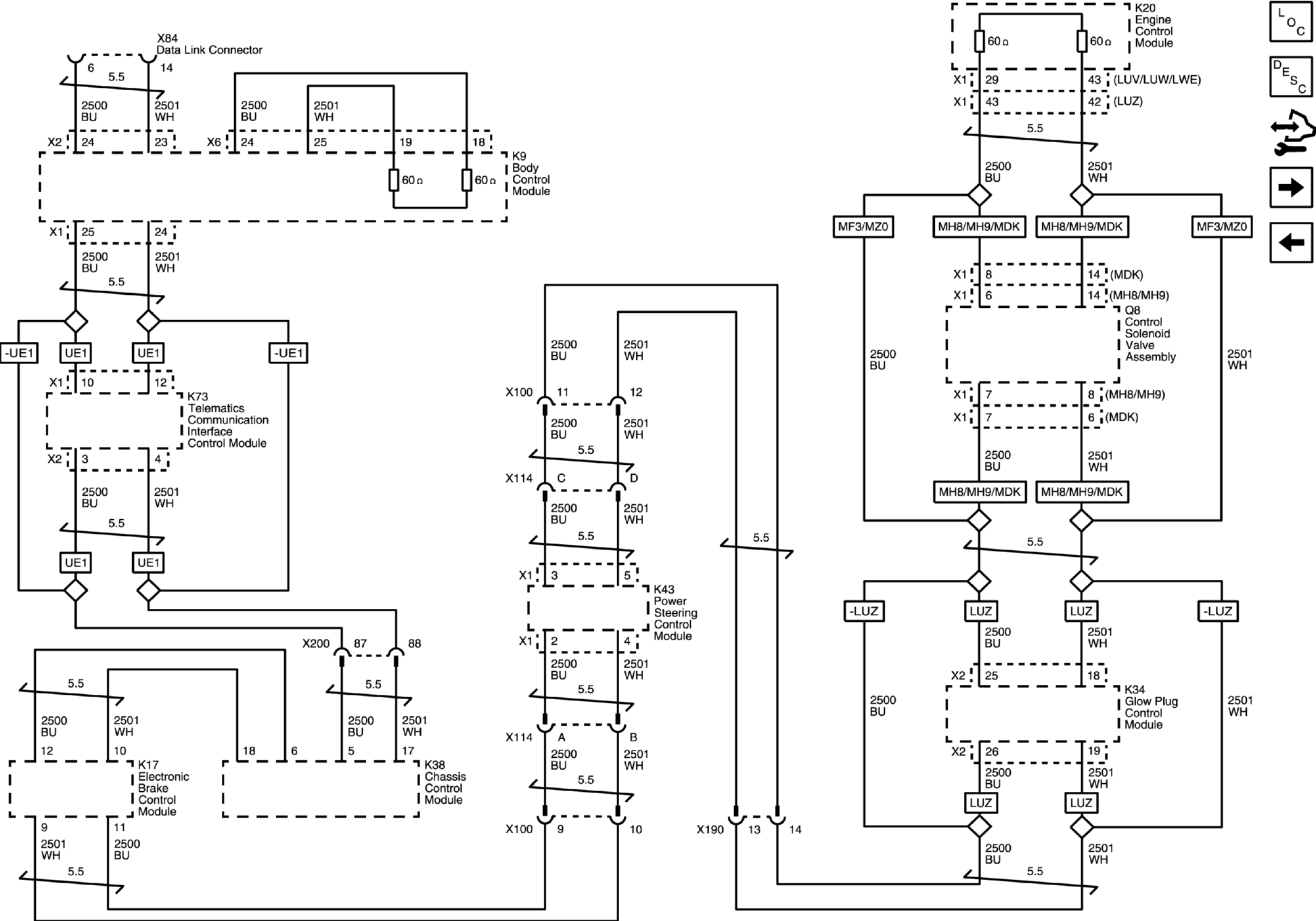

Fig 1: High Speed GMLAN Wiring Schematic

GM3250644

Courtesy of GENERAL MOTORS COMPANY
