Chassis Expansion Bus Wiring Schematics

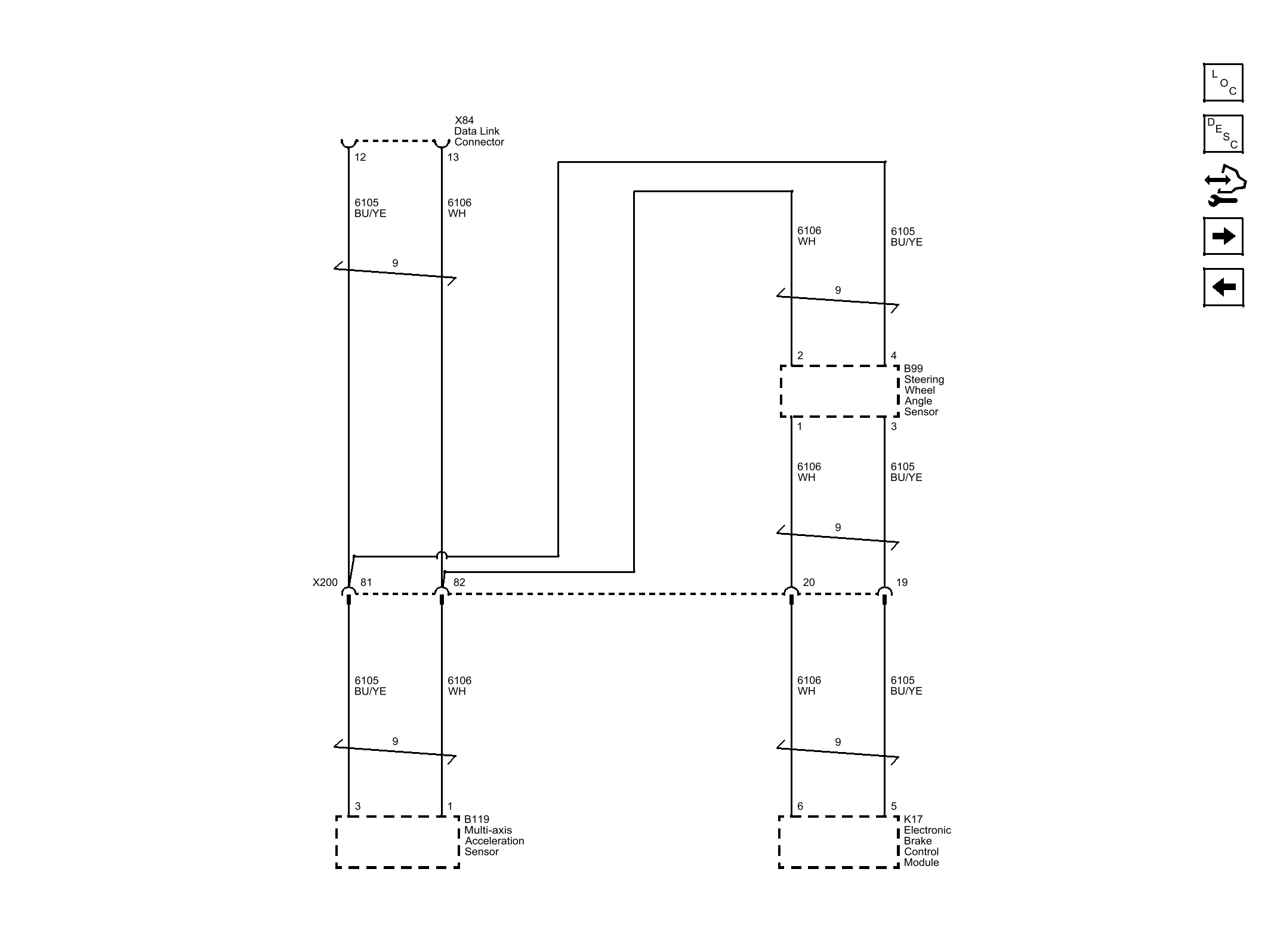

Fig 1: Chassis Expansion Bus Wiring Schematic

GM3250645

Courtesy of GENERAL MOTORS COMPANY
