Subsystem References (4 of 4) Wiring Schematics

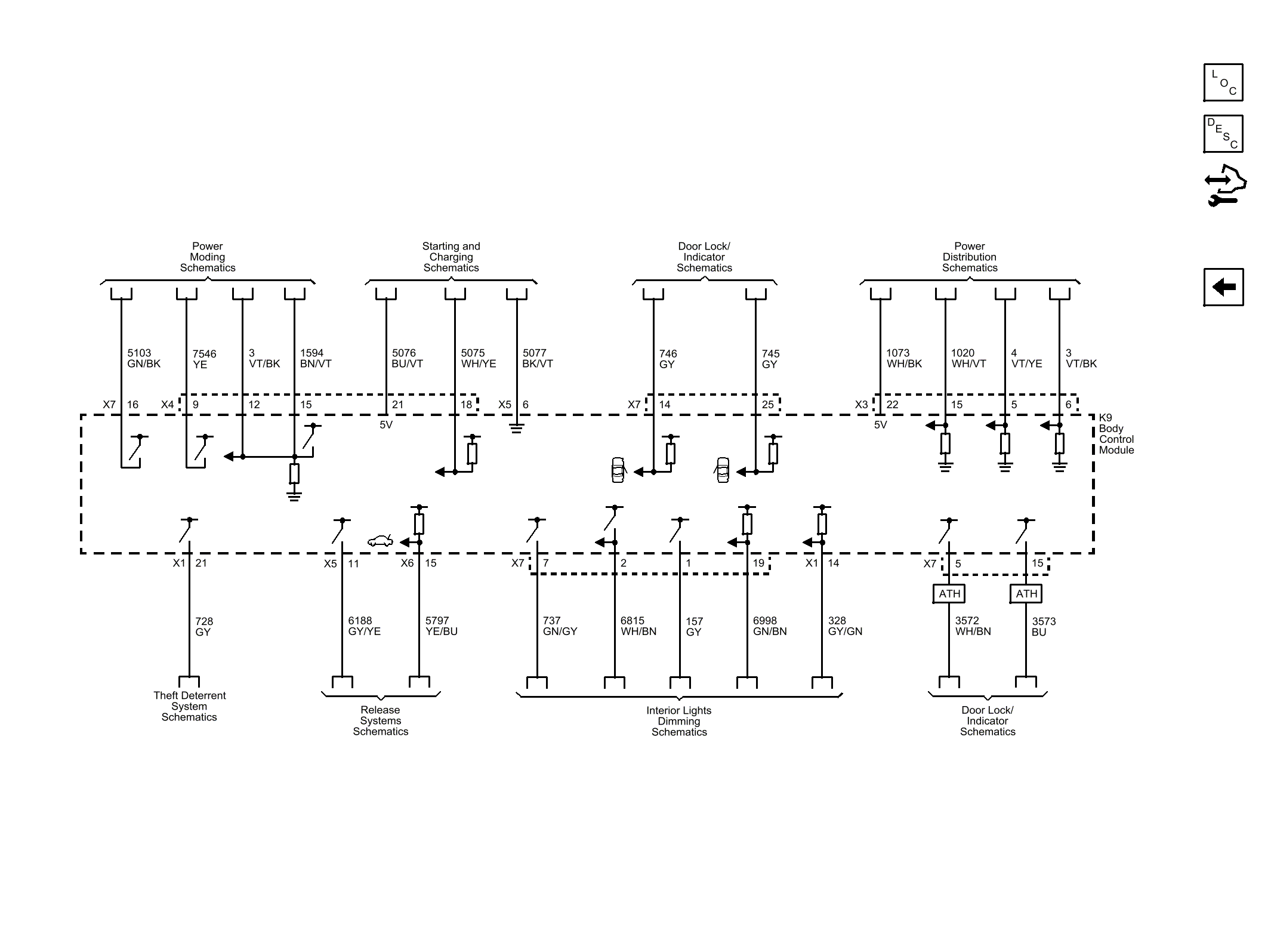

Fig 1: Subsystem References (4 of 4) Wiring Schematic

GM3250663

Courtesy of GENERAL MOTORS COMPANY
