Power, Ground, Data Communications and Subsystem References (1 of 4) Wiring Schematics

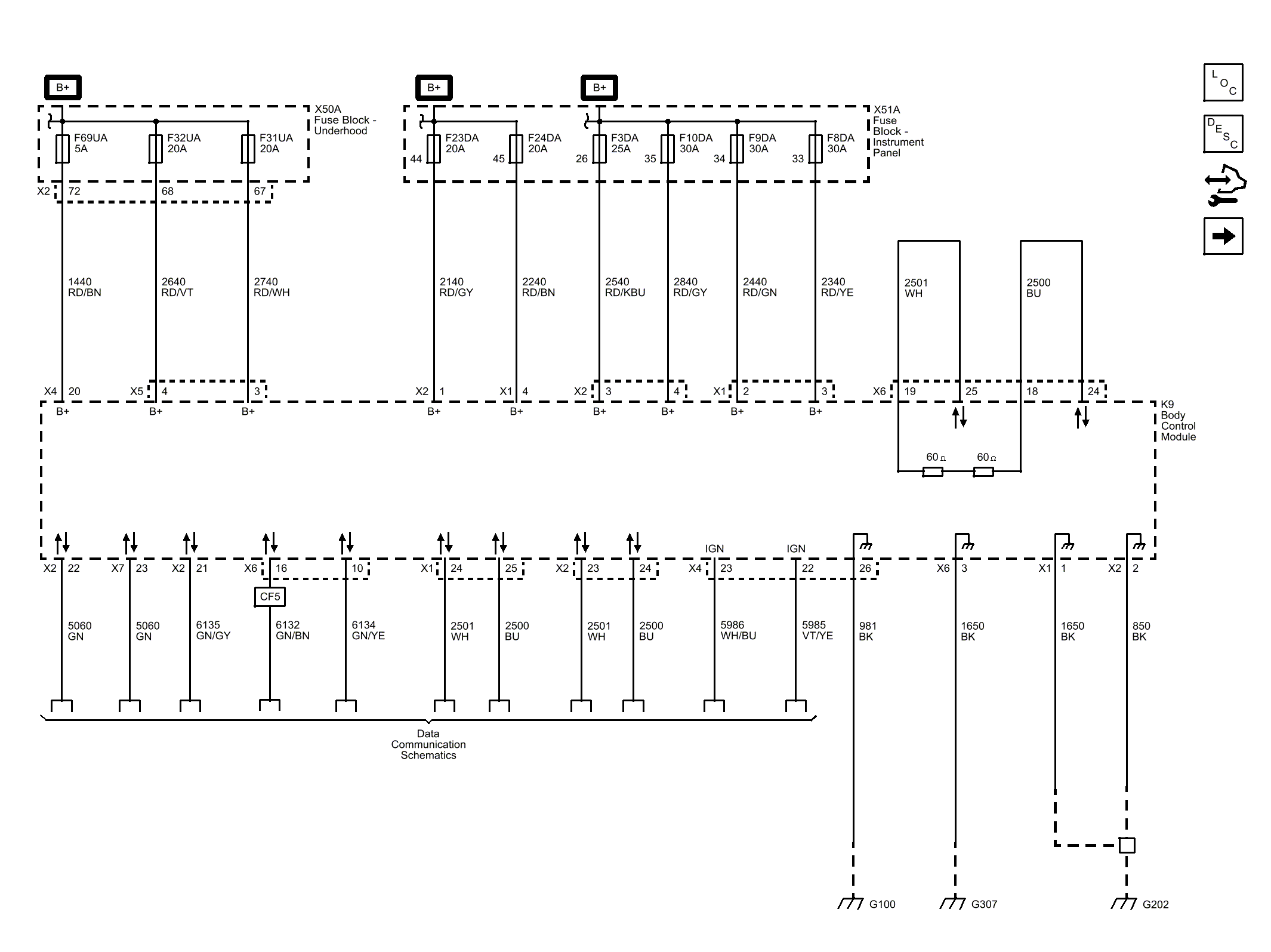

Fig 1: Power, Ground, Data Communications and Subsystem References (1 of 4) Wiring Schematic
GM3250654Courtesy of GENERAL MOTORS COMPANY
