Installation Procedure

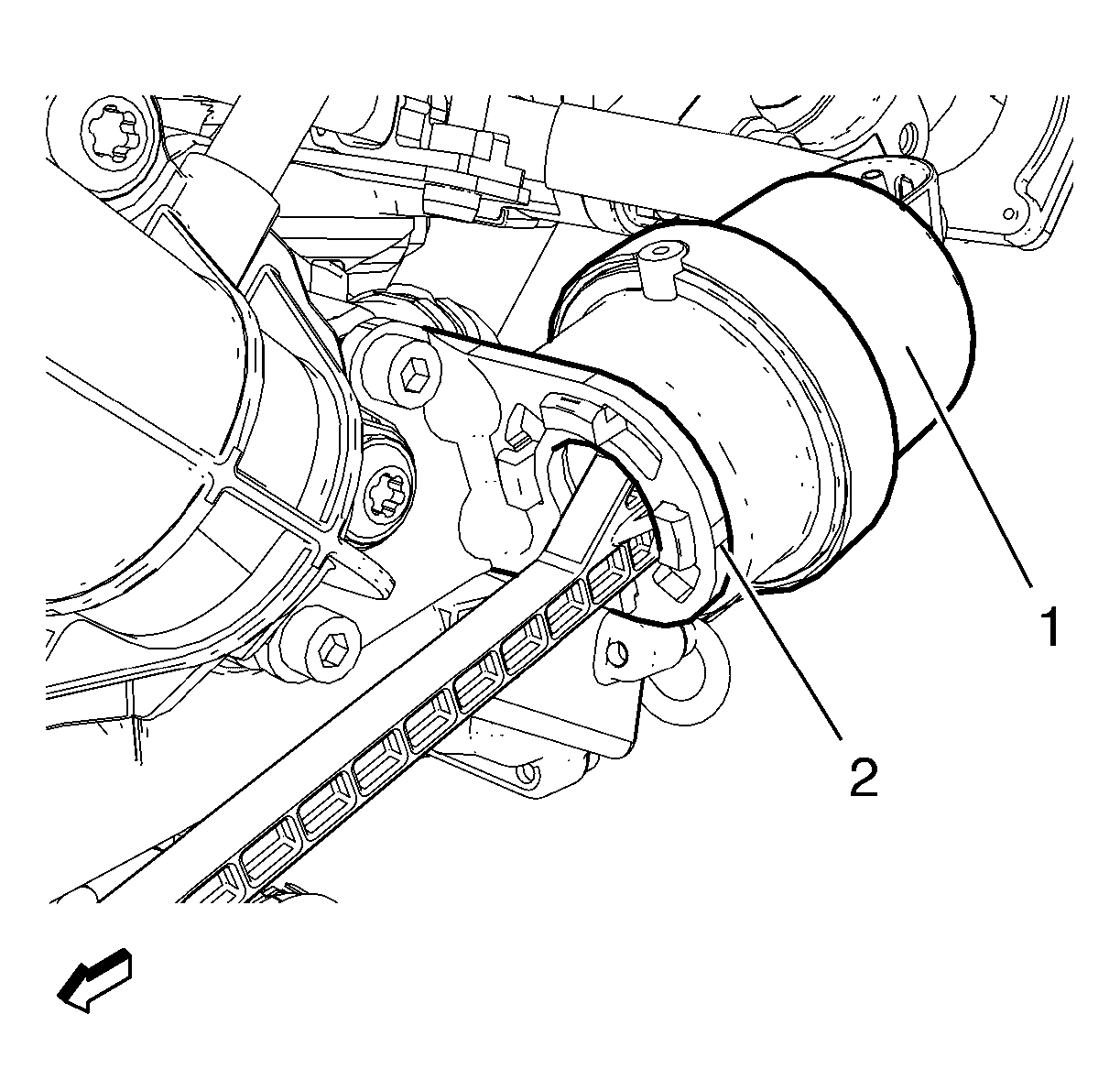

    Fig 1: Exhaust Gas Recirculation Valve Actuator
    GM2191117Courtesy of GENERAL MOTORS COMPANY
  1. Install the exhaust gas recirculation valve actuator (1) to the bracket (2).

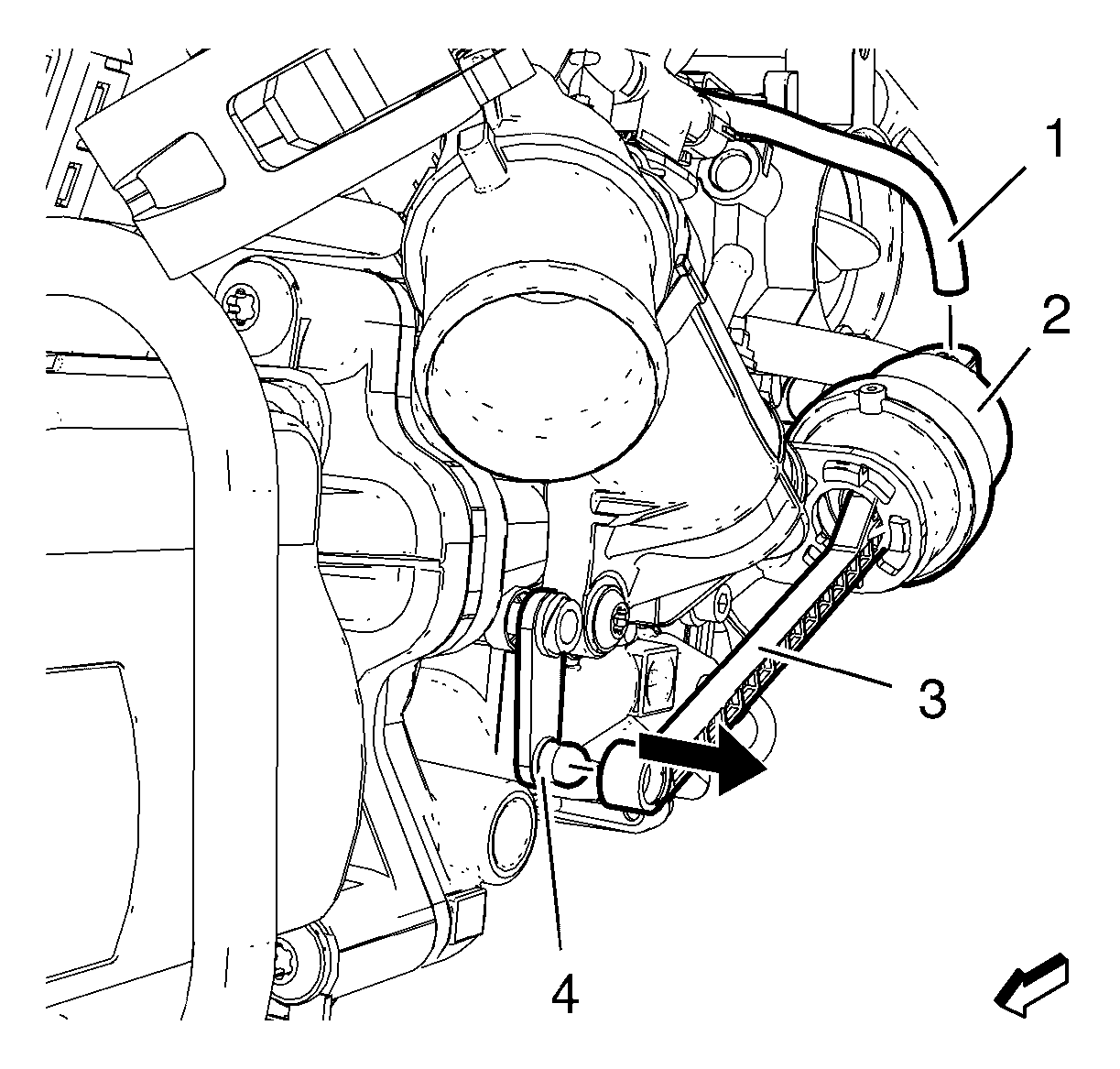

    2. Fig 2: Depression Tube And Exhaust Gas Recirculation Valve Actuator
    GM2191112Courtesy of GENERAL MOTORS COMPANY
  2. Install the depression tube (1) to the exhaust gas recirculation valve actuator (2).
  3. Clip in the exhaust gas recirculation valve actuator lever (3) to the exhaust gas recirculation valve cooler lever (4).
  4. Clip in the engine control module bracket including the engine control module.
  5. Close the hood.
