Installation Procedure

    NOTE:

    If the emission reduction fluid tank insulator - lower is damage install a new lower insulator.

  1. Install the emission reduction fluid tank insulator - lower. Refer to Emission Reduction Fluid Tank Insulator Replacement - Lower .

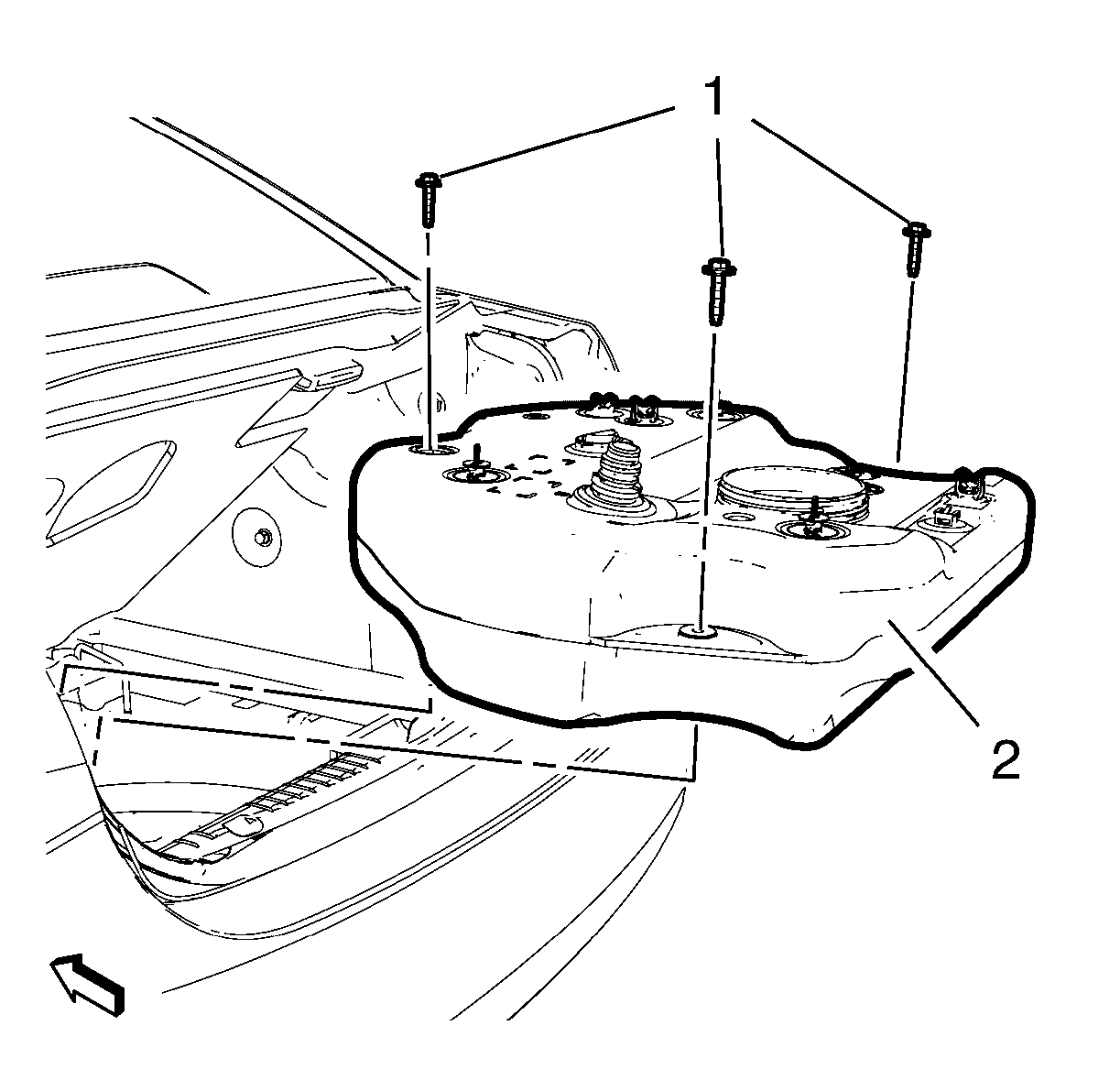

    2. Fig 1: Emission Reduction Fluid Tank Bolts
    GM3216260Courtesy of GENERAL MOTORS COMPANY
  2. Install the emission reduction fluid tank (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the 3 emission reduction fluid tank bolts (1) and tighten to 22 (16 lb ft).
    4. Fig 2: Temperature Emission Reduction Fluid Tank Module And Retainer
    GM3471681Courtesy of GENERAL MOTORS COMPANY
  4. Install the level and temperature emission reduction fluid tank module (2) to the retainer (1).
  5. Install the emission reduction fluid tank reservoir. Refer to Emission Reduction Fluid Tank Reservoir Replacement .

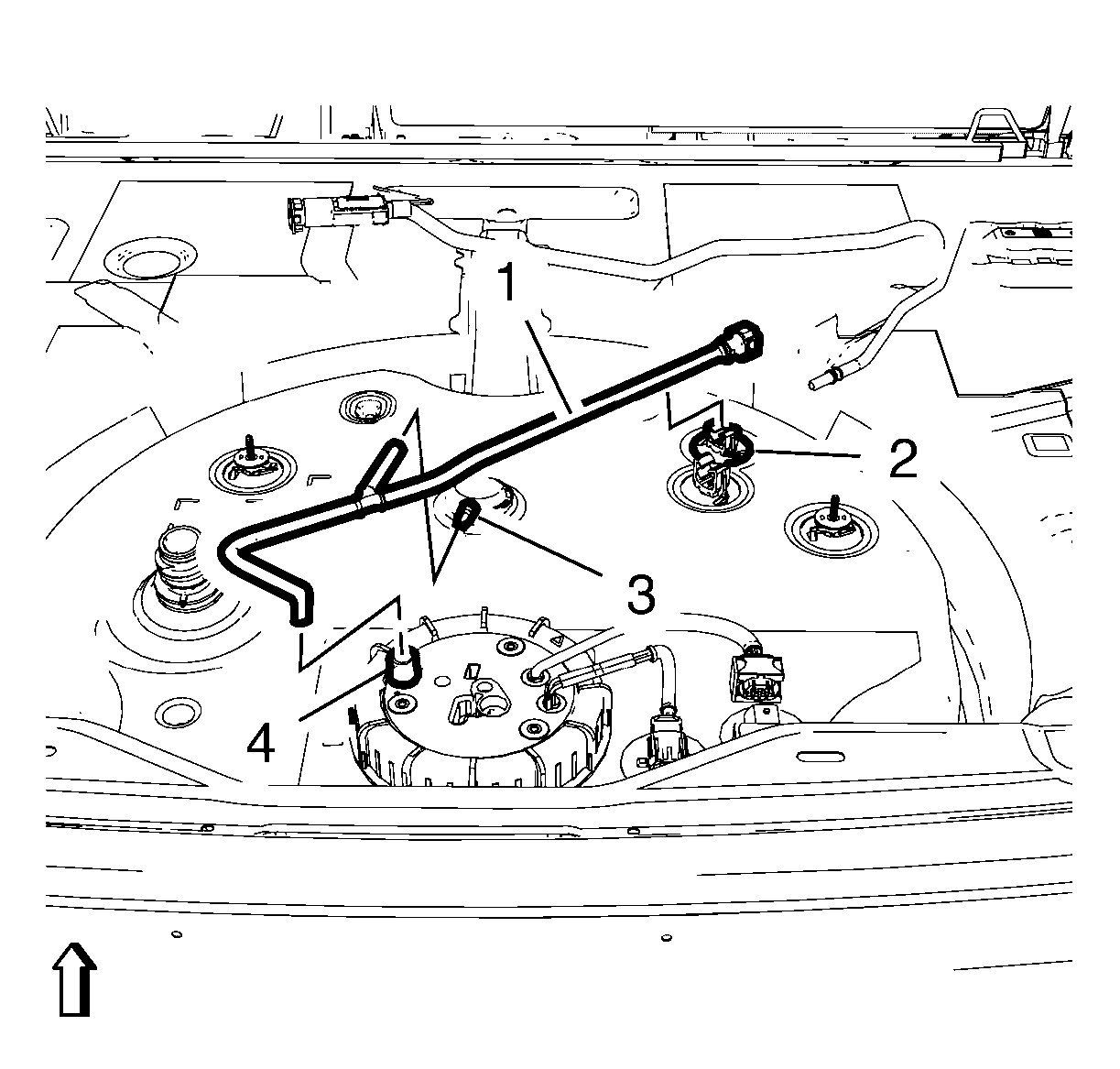

    6. Fig 3: Emission Reduction Fluid Tank Vent Elbow
    GM3216262Courtesy of GENERAL MOTORS COMPANY
  6. Connect the emission reduction fluid tank vent elbow (1) to the emission reduction fluid tank reservoir (4).
  7. Connect the emission reduction fluid tank vent elbow (1) to the emission reduction fluid vent line.

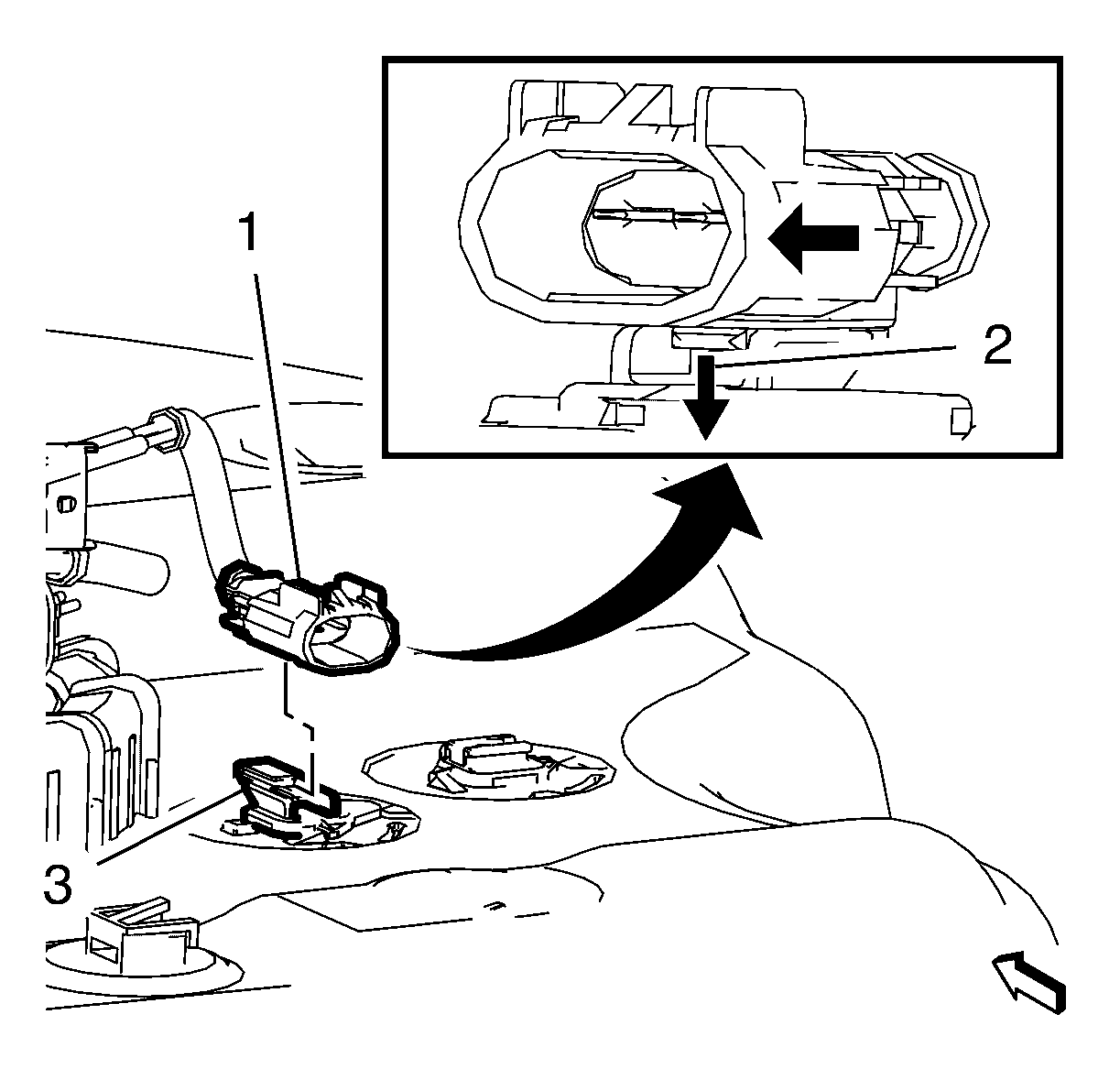

    8. Fig 4: Temperature Emission Reduction Fluid Tank Module
    GM3471687Courtesy of GENERAL MOTORS COMPANY
  8. Connect the emission reduction fluid tank reservoir wiring harness plug (1) to the retainer (3) in the direction as shown.

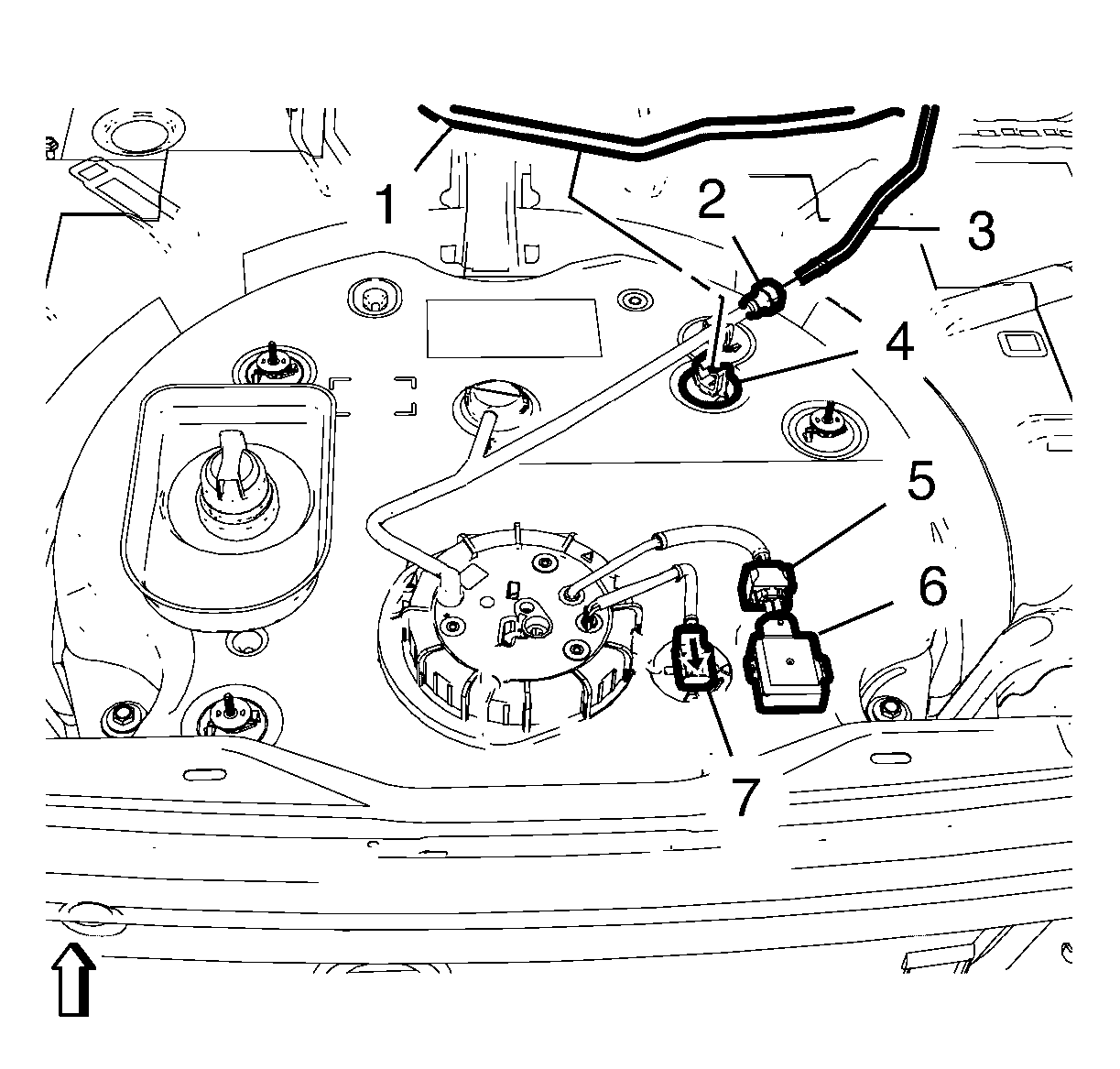

    9. Fig 5: Emission Reduction Fluid Tank Vent Elbow And Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe
    GM3216259Courtesy of GENERAL MOTORS COMPANY
  9. Position the emission reduction fluid exhaust front pipe injector supply pipe (1) into the retainer (4).
  10. Install the emission reduction fluid supply pump module. Refer to Emission Reduction Fluid Supply Pump Module Replacement .
  11. Install the emission reduction fluid pump module wiring harness. Refer to Emission Reduction Fluid Pump Module Wiring Harness Replacement .
  12. Install the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .

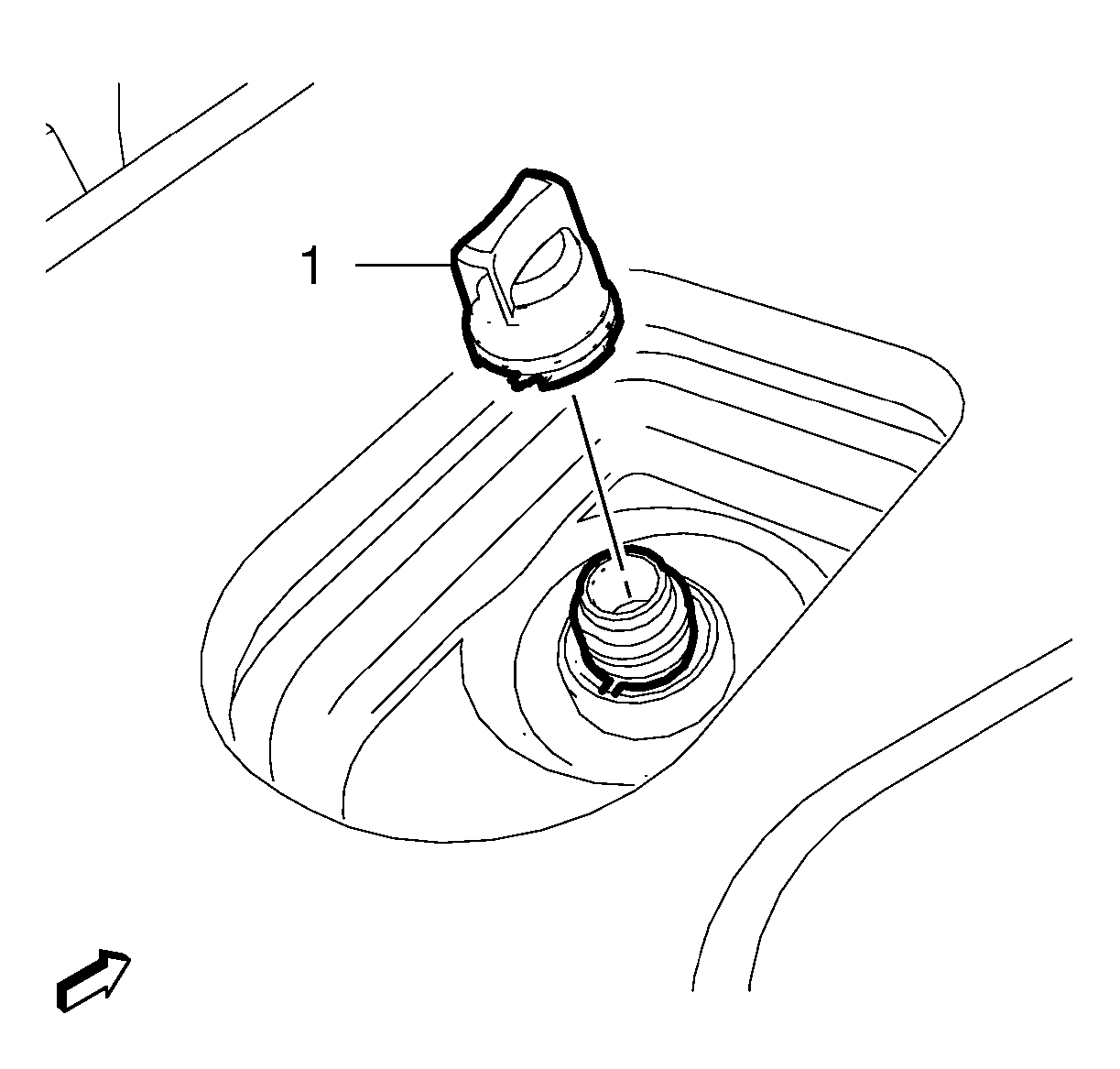

    13. Fig 6: Emission Reduction Fluid Tank Filler Cap
    GM3216236Courtesy of GENERAL MOTORS COMPANY
  13. Install the emission reduction fluid tank filler cap (1).
