Power, Ground and Low Speed GMLAN Wiring Schematics

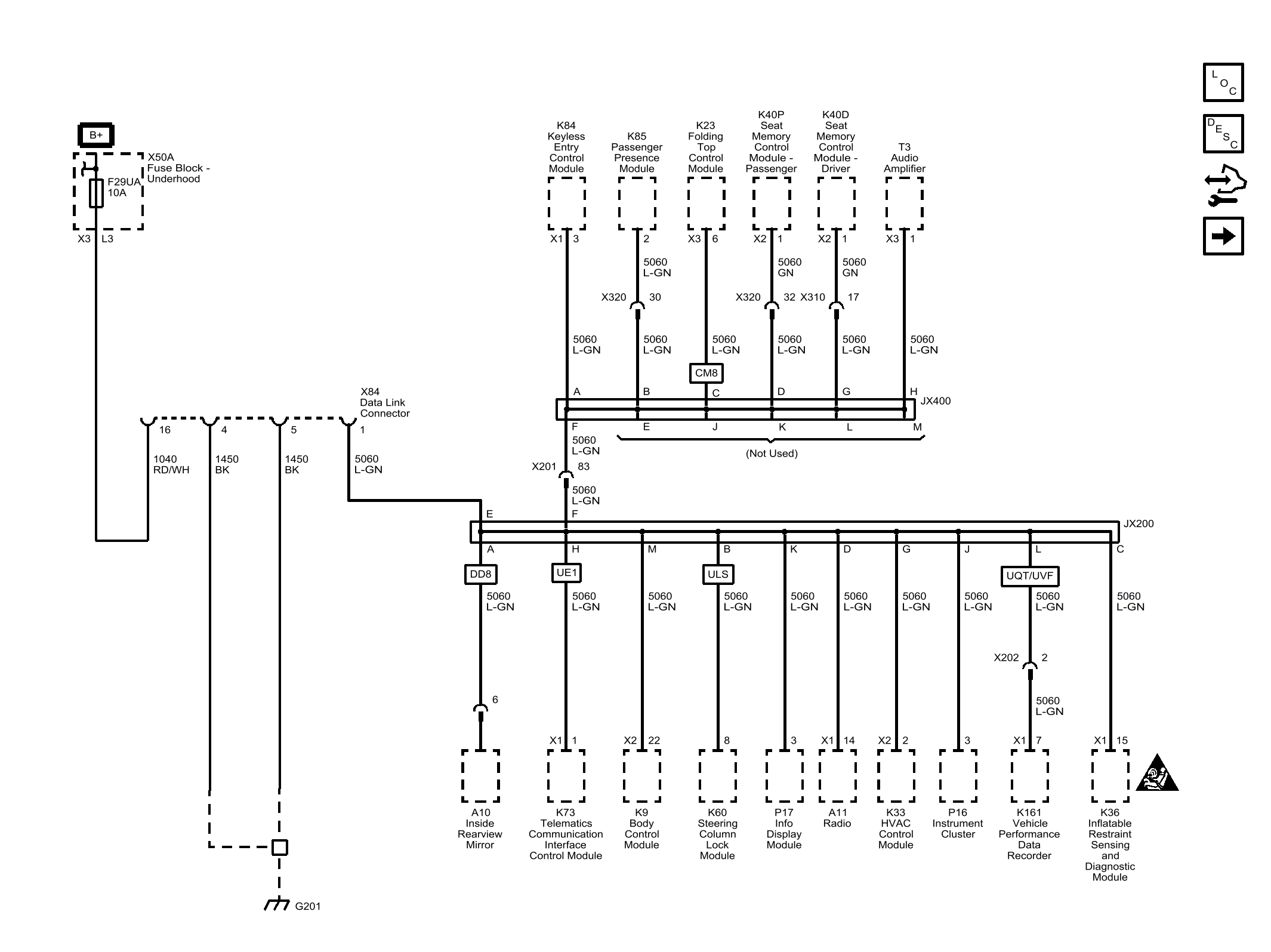

Fig 1: Power, Ground and Low Speed GMLAN Wiring Schematic

GM3396102

Courtesy of GENERAL MOTORS COMPANY
