MOST Bus and Communications Enable Wiring Schematics

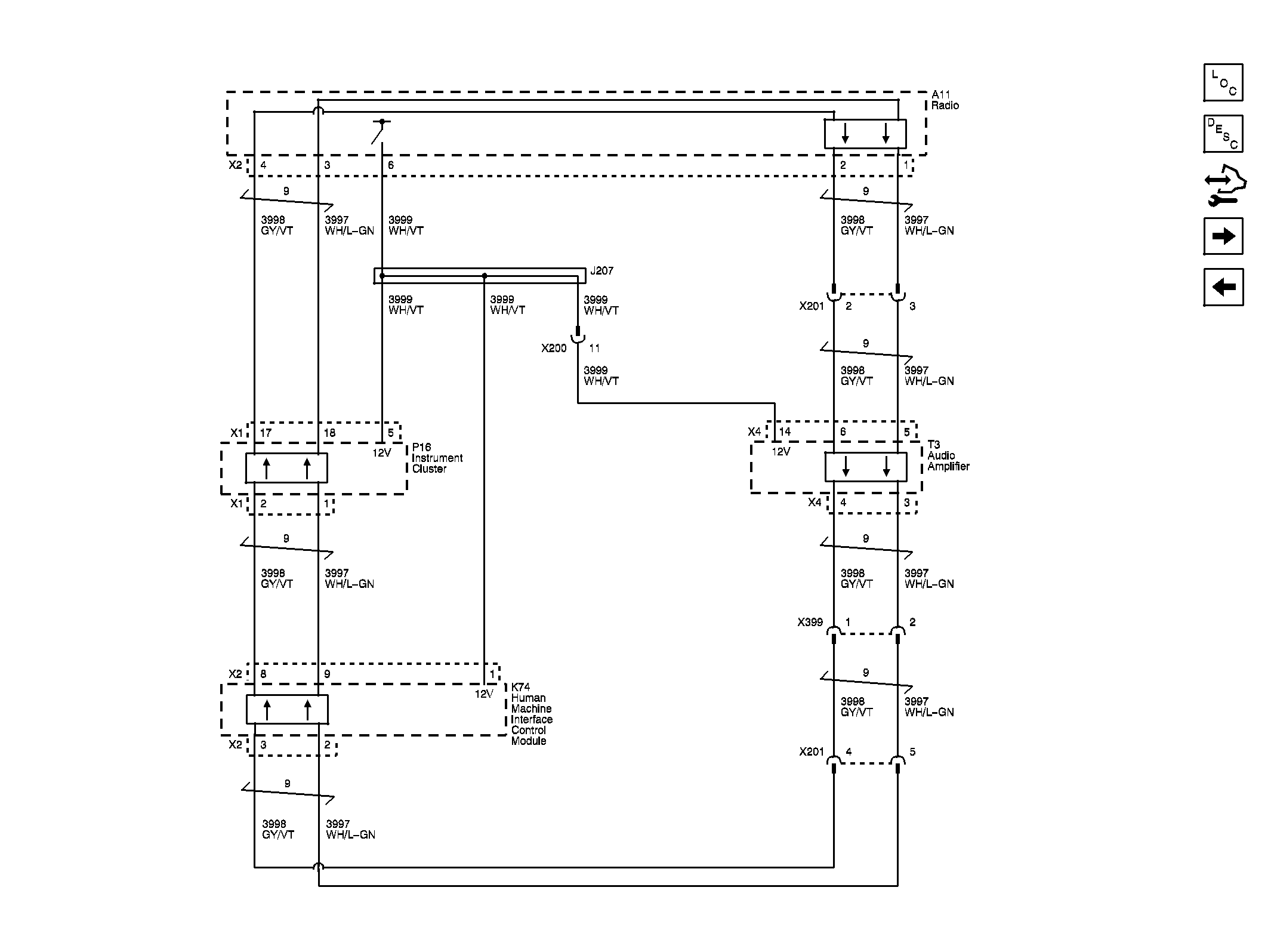

Fig 1: MOST Bus and Communications Enable Wiring Schematic

GM3396205

Courtesy of GENERAL MOTORS COMPANY
