Installation Procedure

  1. Transfer the retaining screw and nut to the replacement HUD.

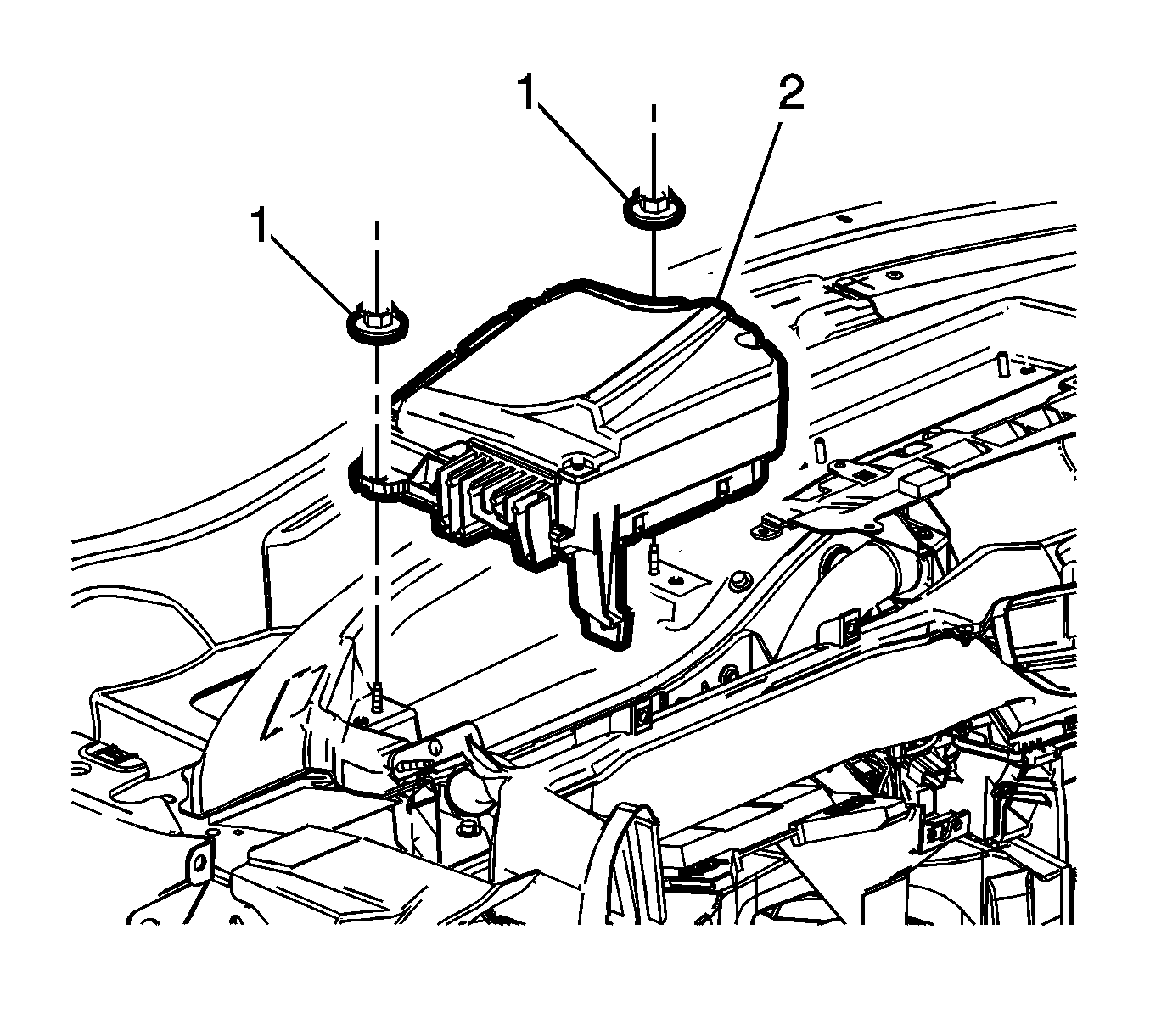

    2. Fig 1: Installing HUD
    GM3385545Courtesy of GENERAL MOTORS COMPANY
  2. Install the HUD (2) to the vehicle:
    1. Install the HUD onto the dash panel mounting studs.
    2. Slide the HUD retaining screw into the slot on the steering column bracket.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the HUD retaining nuts (1).

    Tighten

    Tighten the nuts to 5 (44 lb in).

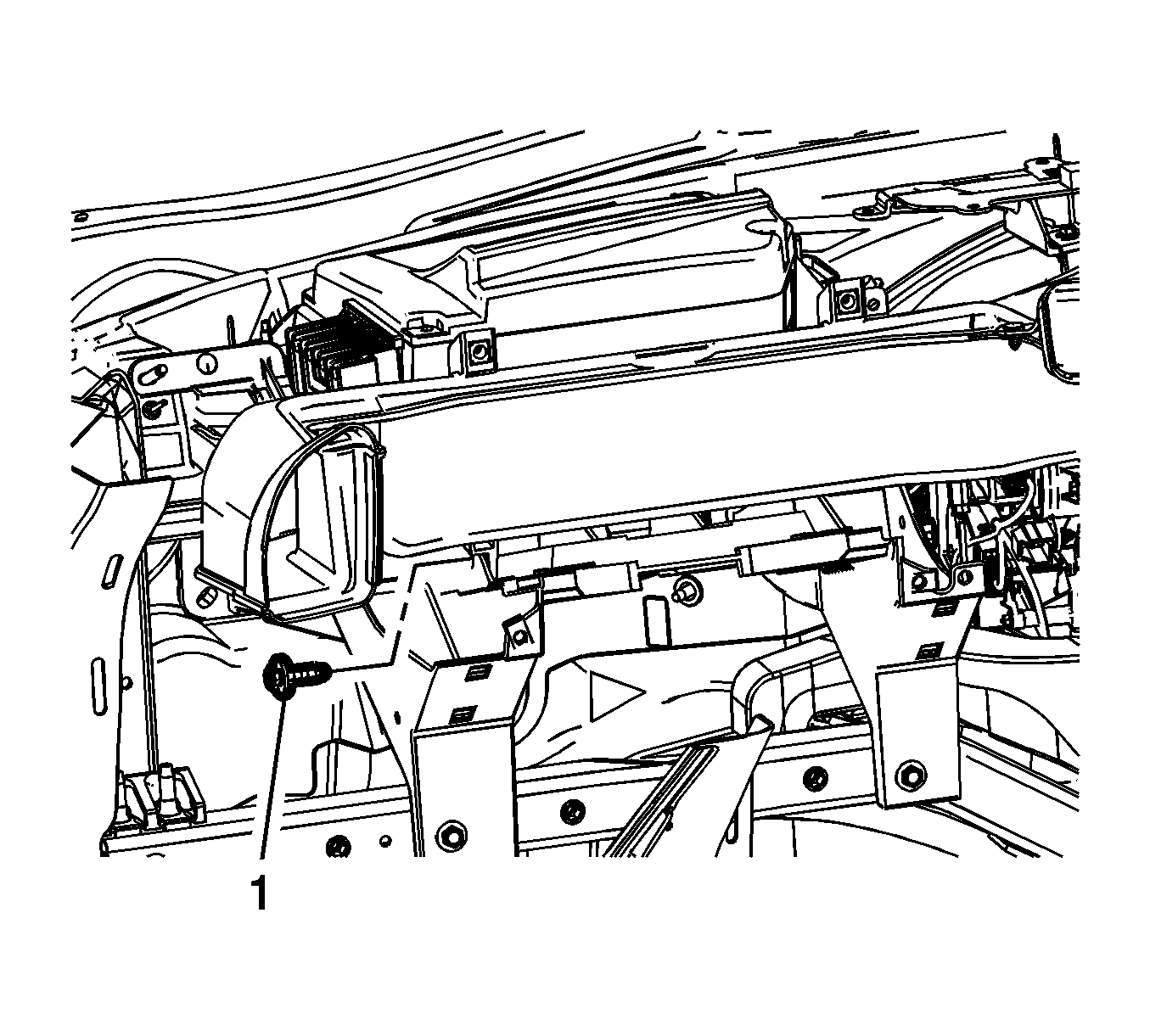

    4. Fig 2: Head-Up Bolt
    GM3385542Courtesy of GENERAL MOTORS COMPANY
  4. Tighten the screw (1) that retains the HUD to the steering column bracket.

    Tighten

    Tighten the screw to 3 (27 lb in).

  5. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement .
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  7. Refer to Control Module References for programming and setup information.
