Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the generator pulley belt. Refer to Drive Belt Replacement - Accessory .

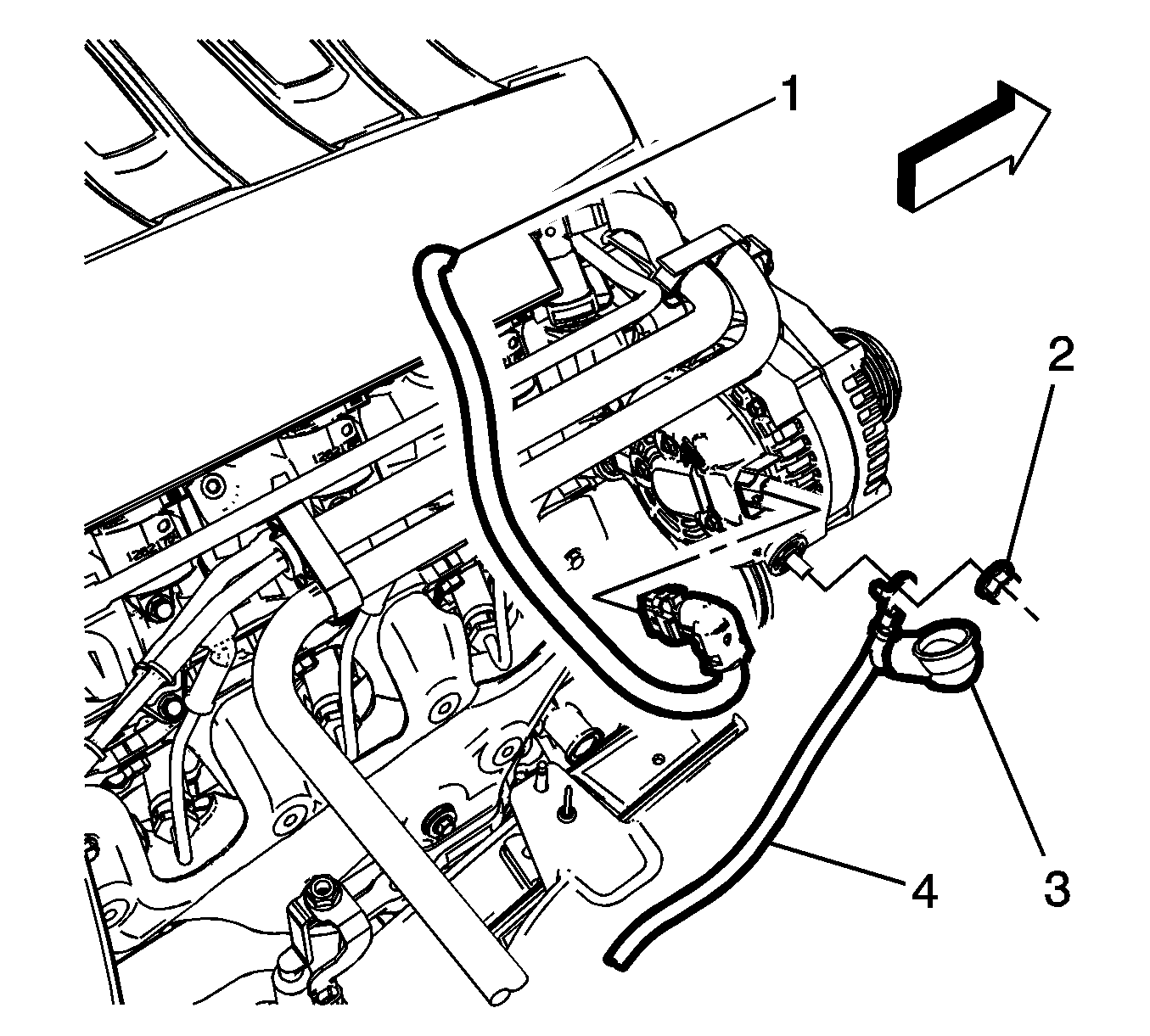

    3. Fig 1: Generator Cable Boot
    GM3407514Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the engine harness connector (1) from the generator.
  4. Remove the generator cable boot (3) and remove the generator cable fastener (2).
  5. Remove the generator cable (4) from the generator.

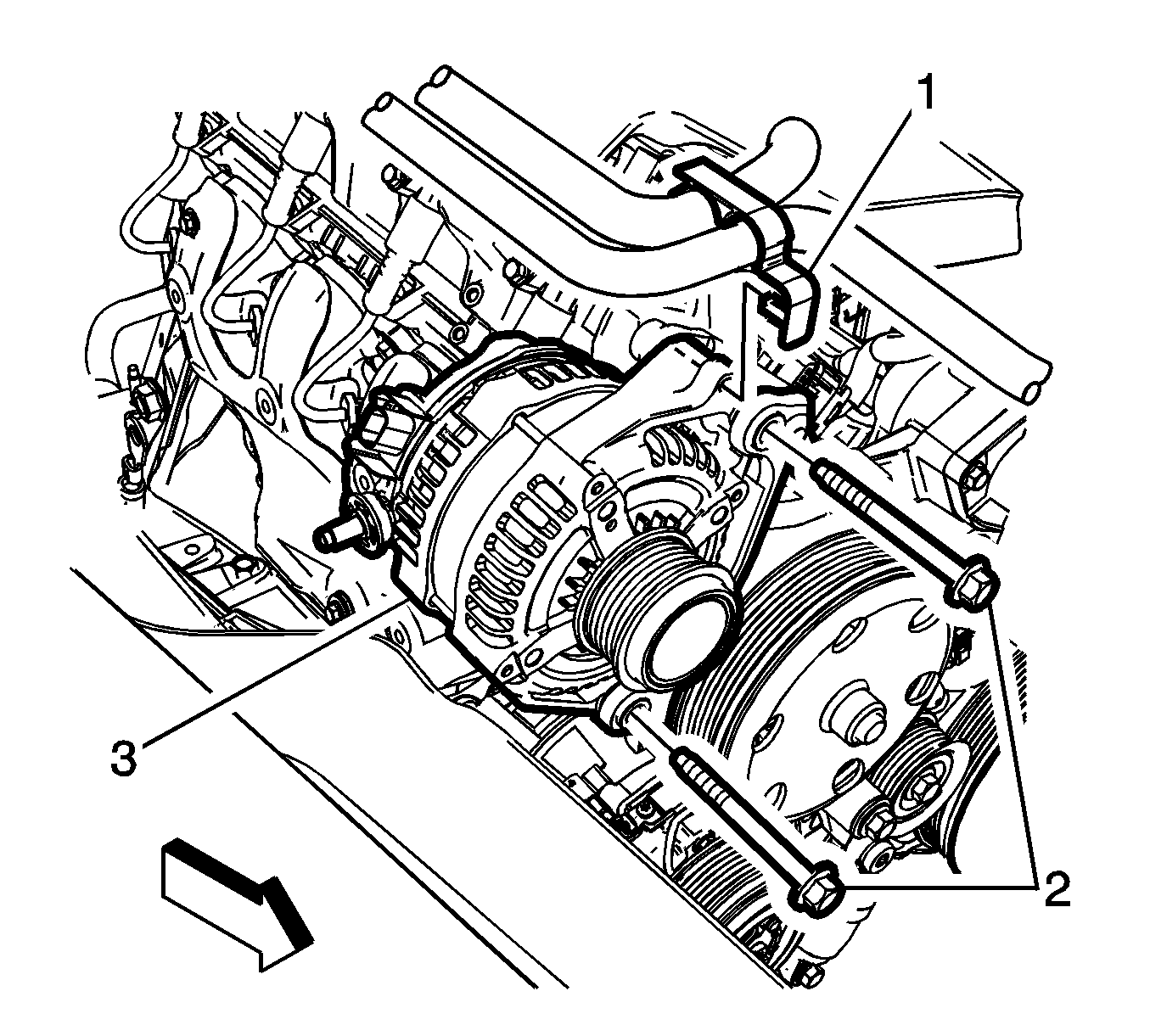

    6. Fig 2: Engine Oil Tank Hose Retainer And Generator
    GM3407515Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect the engine oil tank hose retainer (1) from the generator.
  7. Remove the generator mounting bolts (2) and remove the generator (3) from the engine compartment.
