Removal Procedure

  1. Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (North America) , Rear Compartment Floor Panel Trim Replacement (Export - CU9, CV5, CZ3, C4E) .
    2. Fig 1: Battery Insulator And Top Of Battery
    GM3407536Courtesy of GENERAL MOTORS COMPANY
  2. Remove the battery insulator (1) from the top of the battery.

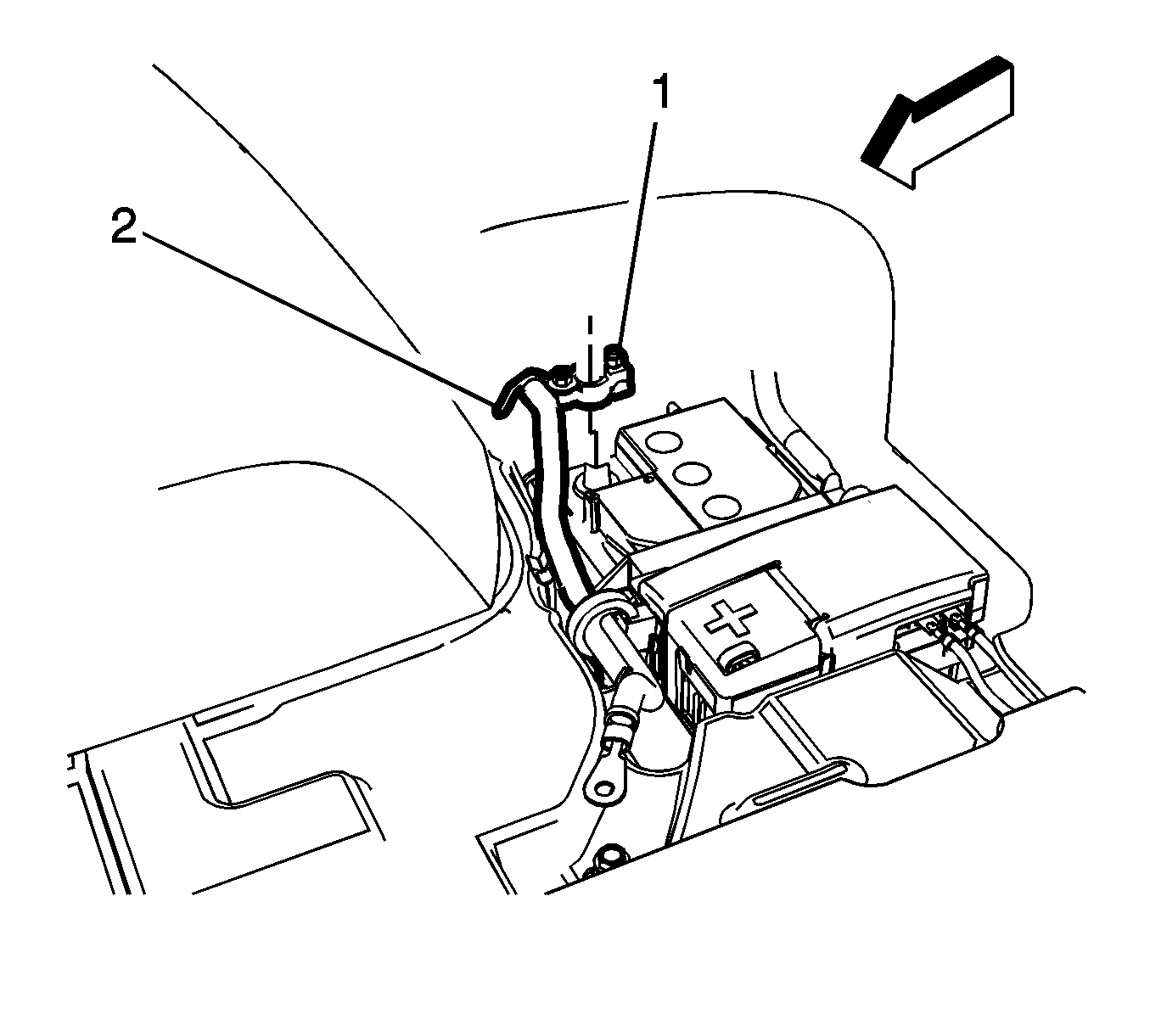

    3. Fig 2: Battery Negative Cable Clamp Fastener
    GM3355513Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Battery Disconnect Warning .

  3. Loosen the battery negative cable clamp fastener (1) and remove the battery negative cable (2) from the battery negative post.
