Front Side Door Window Inner Sealing Strip Replacement
Front Side Door Window Inner Sealing Strip Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door window weatherstrip. Refer to Front Side Door Weatherstrip Replacement . |
|

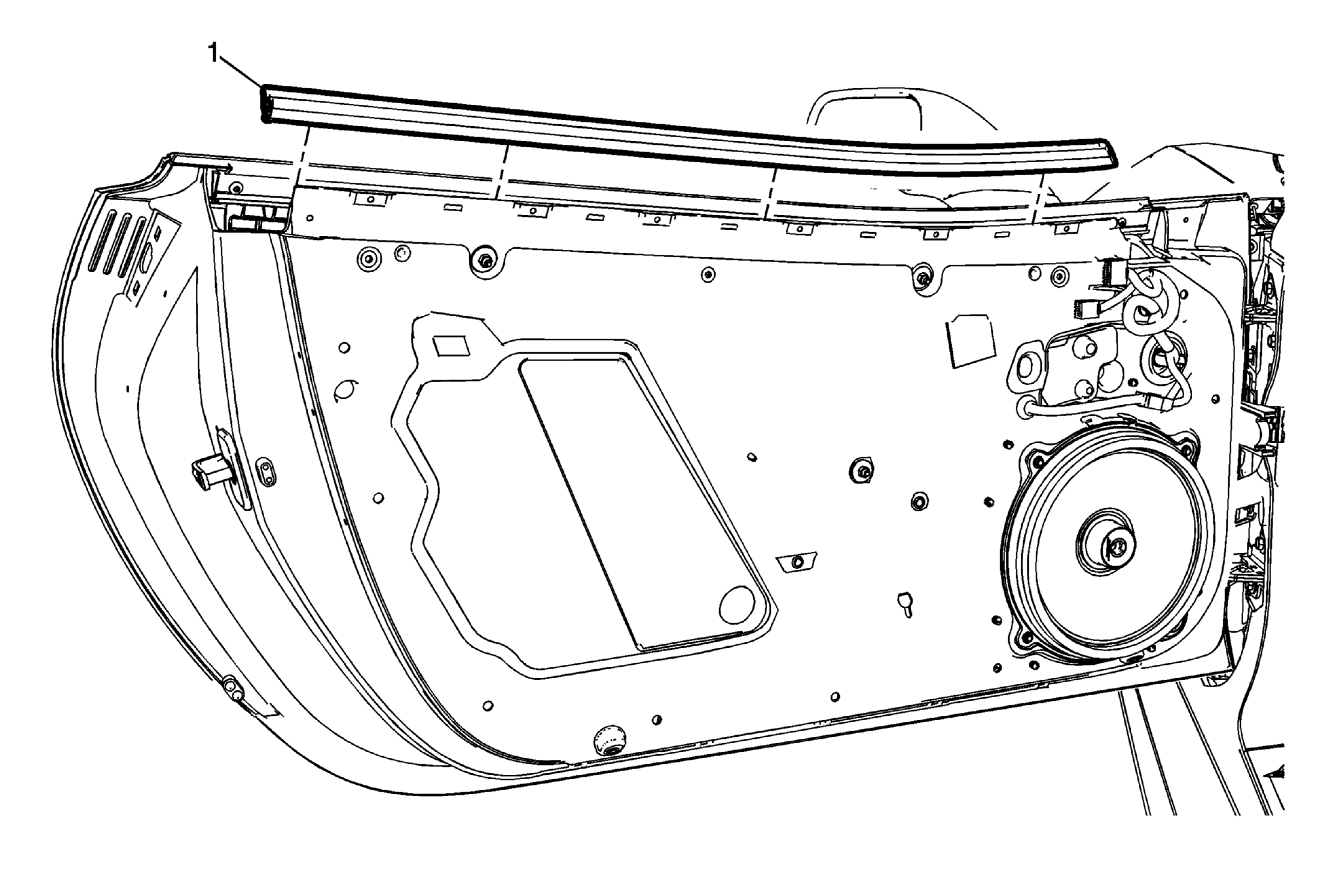

| 1 | Front Side Door Window Inner Sealing Strip Procedure Pull up and away from inner panel to remove from the door.
NOTE:
Inspect the door for proper operation before installing the door trim panel. |
