Radio Front Center Speaker Replacement
Radio Front Center Speaker Replacement

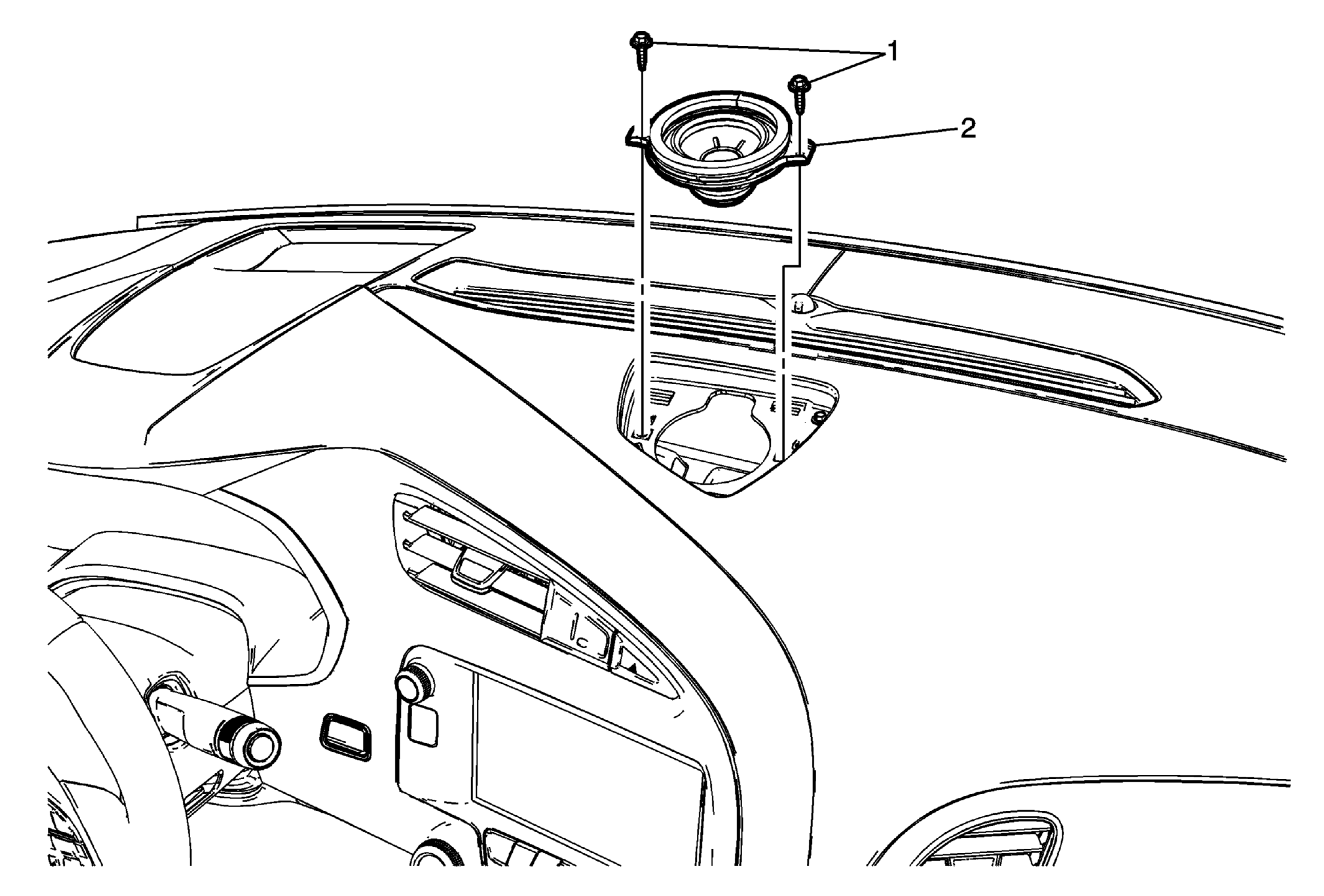

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel trim pad radio center speaker opening cover. Refer to Instrument Panel Trim Pad Radio Center Speaker Opening Cover Replacement . |
|
| 1 | Radio Front Center Speaker Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Front Center Speaker Procedure Disconnect the electrical connector. |
