Mobile Telephone Microphone Replacement

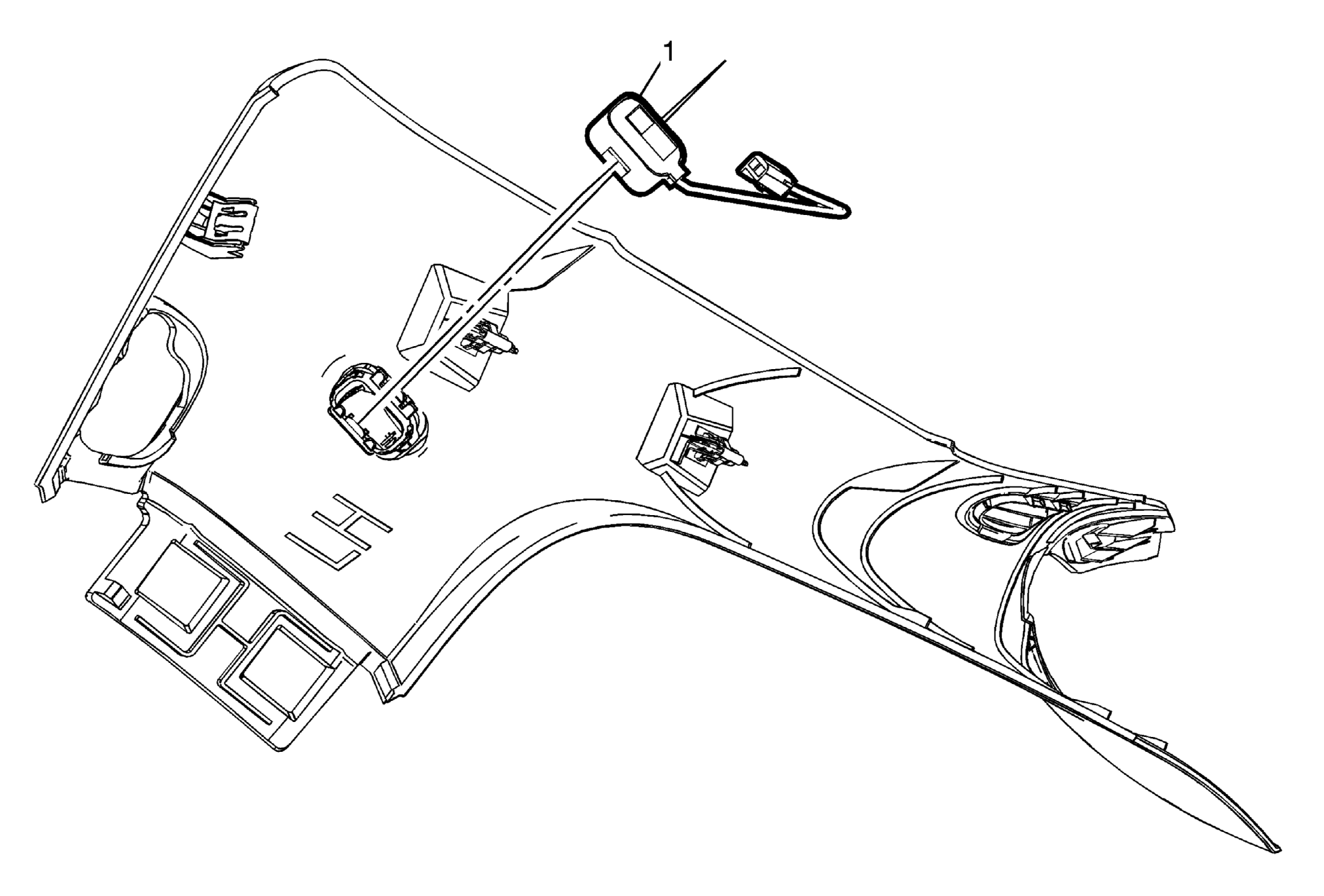

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Using the appropriate tool, depress the tabs to release the microphone.

Callout

Component Name

Preliminary Procedure
Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .

Mobile Telephone Microphone

Procedure
