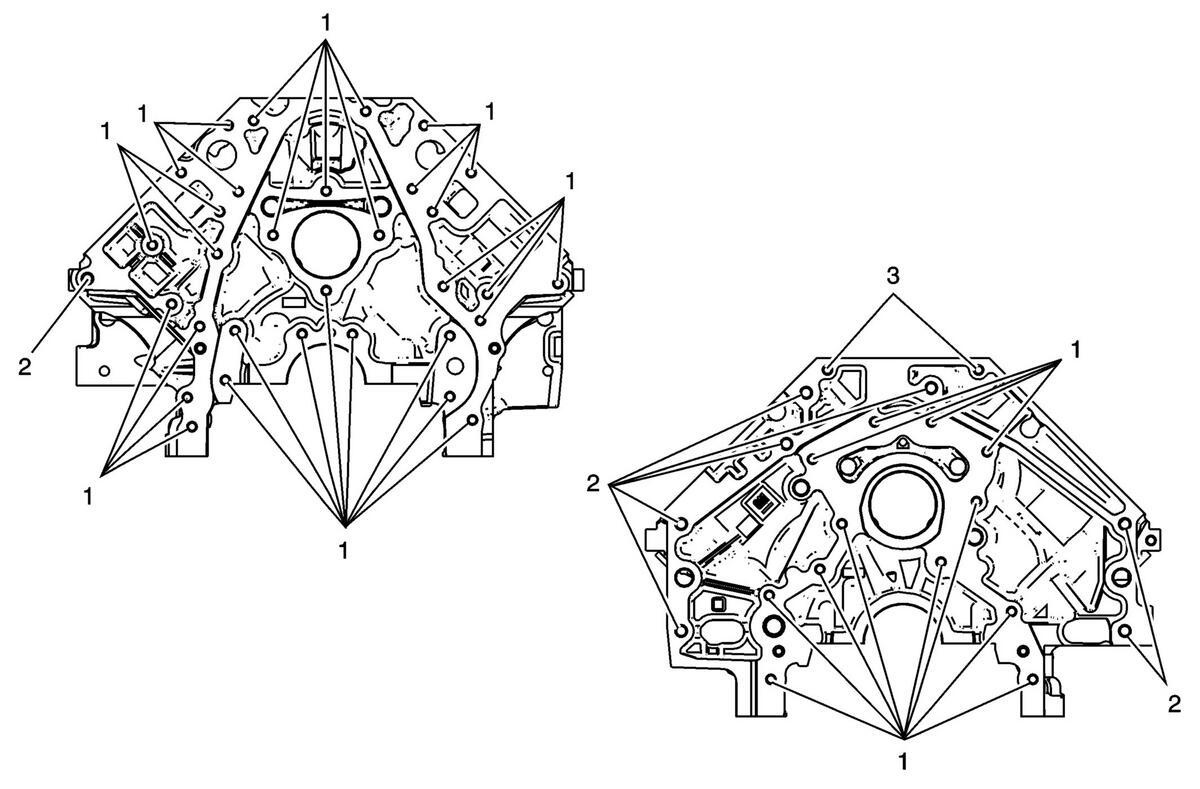

Engine Block- Front/Rear Views
Engine Block- Front/Rear Views
| Hole | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth- Maximum mm (in) | Tap Depth- Maximum mm (in) |
|---|---|---|---|---|---|---|---|---|
| J-42385- | ||||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 23.0 (0.907) | 23.0 (0.907) |
| 2 | M10 x 1.5 | 420 | 211 | 212 | 213 | 214 | 34.0 (1.35) | 34.0 (1.35) |
| 3 | M8 x 1.25 | 61 | 206 | 207 | 208 | 209 | 29.0 (1.14) | 29.0 (1.14) |
