Right Rear Engine Components (LFW)

Items
1: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor
2: T8E Ignition Coil 5 (LFW) T8E Ignition Coil 5 (LFW)
3: T8C Ignition Coil 3 T8C Ignition Coil 3
4: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LEA)Q12 Evaporative Emission Purge Solenoid Valve (LFW)
5: Q38 Throttle Body Q38 Throttle Body
6: B23B Camshaft Position Sensor - Bank 1 Intake (LFW) B23B Camshaft Position Sensor - Bank 1 Intake (LFW)
7: B23D Camshaft Position Sensor - Bank 2 Intake (LFW) B23D Camshaft Position Sensor - Bank 2 Intake (LFW)
8: Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFW) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFW)
9: Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFW) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFW)
10: B23C Camshaft Position Sensor - Bank 2 Exhaust (LFW) B23C Camshaft Position Sensor - Bank 2 Exhaust (LFW)
11: Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFW) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFW)
12: Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFW) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFW)
13: B23A Camshaft Position Sensor - Bank 1 Exhaust (LFW) B23A Camshaft Position Sensor - Bank 1 Exhaust (LFW)
14: B68A Knock Sensor 1 (LFW) B68A Knock Sensor 1 (LFW)
15: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LEA)B26 Crankshaft Position Sensor (LFW)
16: T8A Ignition Coil 1 T8A Ignition Coil 1

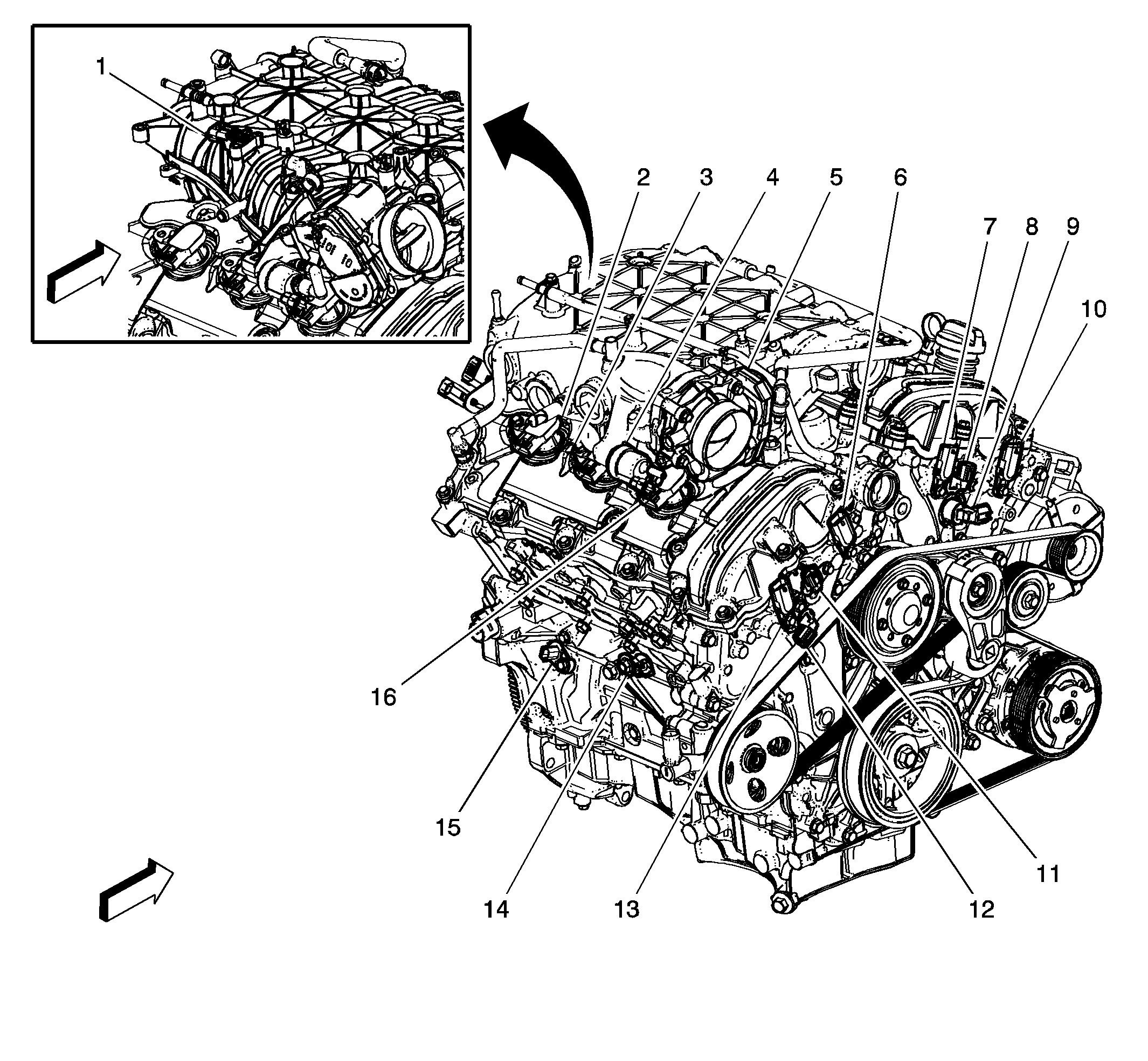

Fig 1: Right Rear Engine Components (LFW)

Courtesy of GENERAL MOTORS COMPANY
