Subsystem References Wiring Schematics (3 of 3)

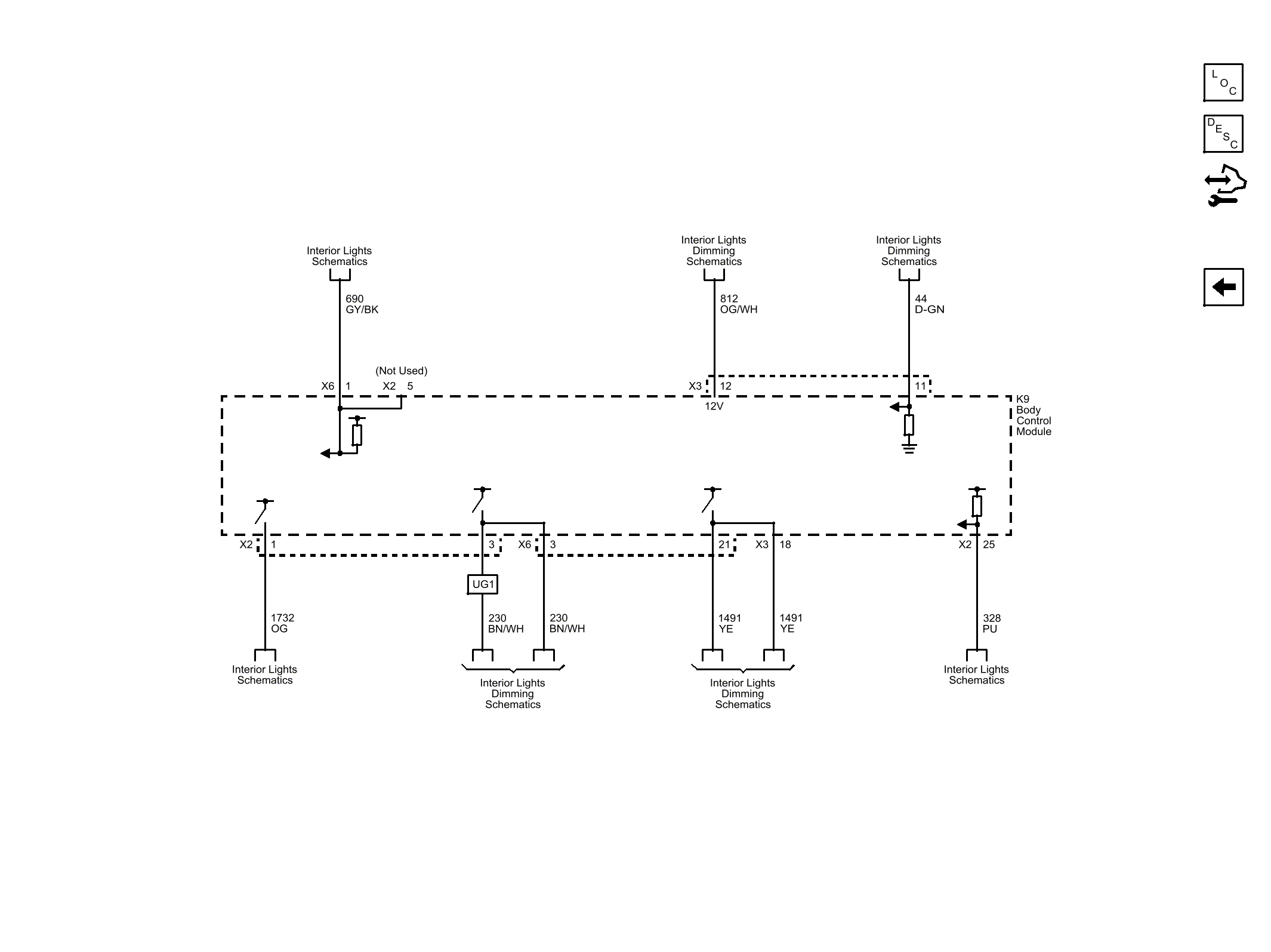

Fig 1: Subsystem References Wiring Schematic (3 of 3)

GM3330522

Courtesy of GENERAL MOTORS COMPANY
