Subsystem References Wiring Schematics (2 of 3)

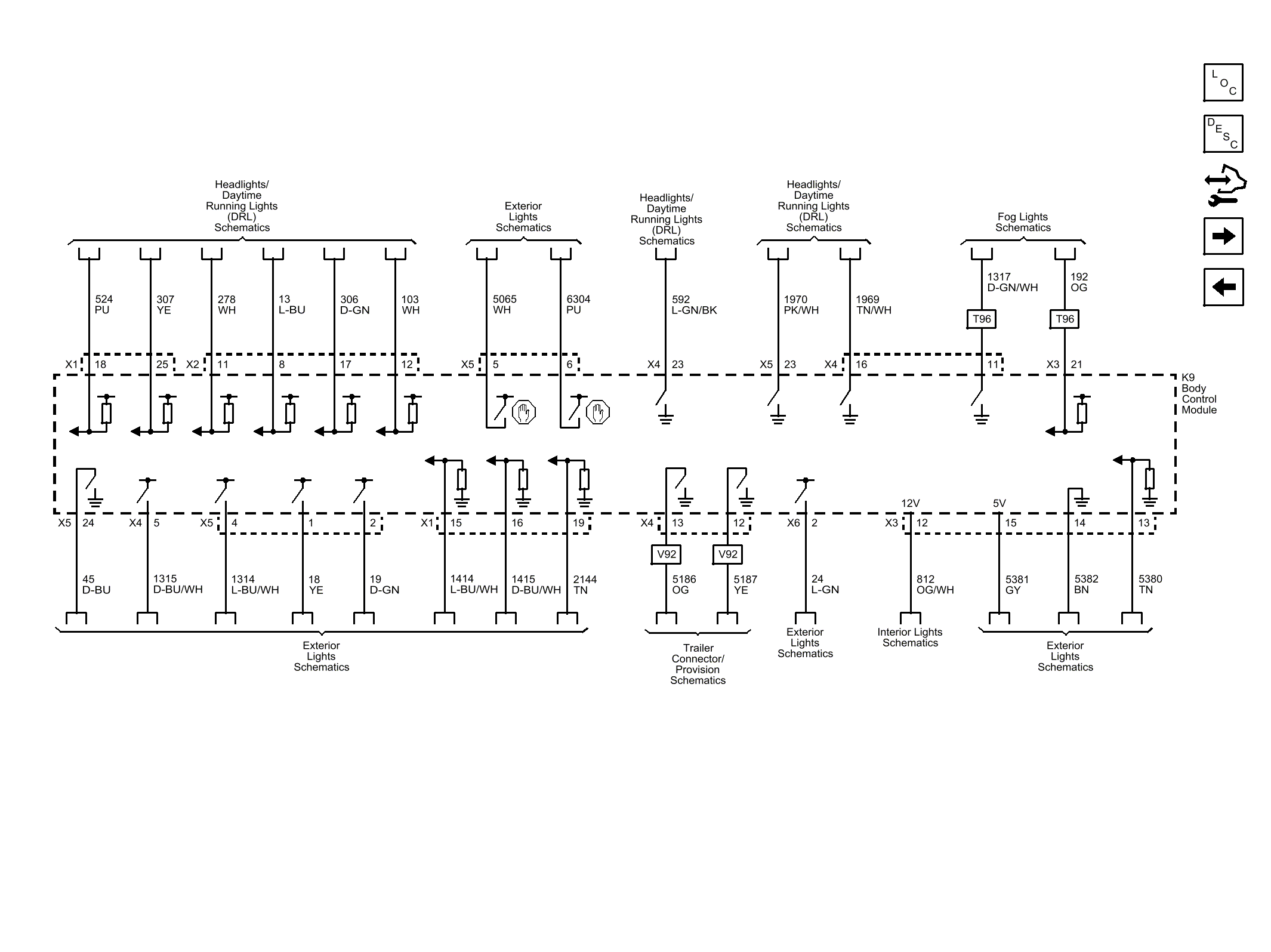

Fig 1: Subsystem References Wiring Schematic (2 of 3)

GM3330520

Courtesy of GENERAL MOTORS COMPANY
