Subsystem References Wiring Schematics (1 of 3)

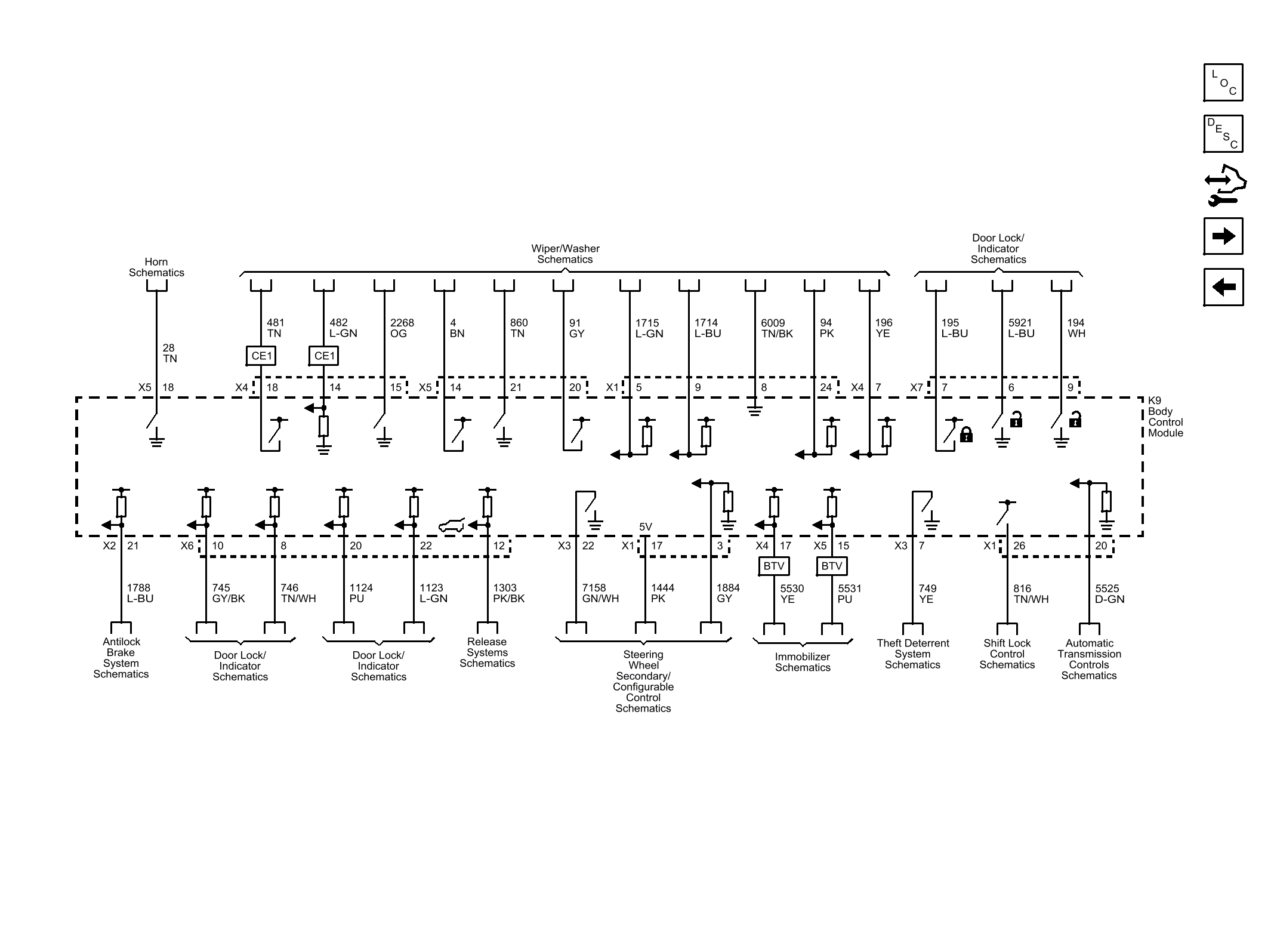

Fig 1: Subsystem References Wiring Schematic (1 of 3)

GM3330519

Courtesy of GENERAL MOTORS COMPANY
