Chassis Expansion BUS

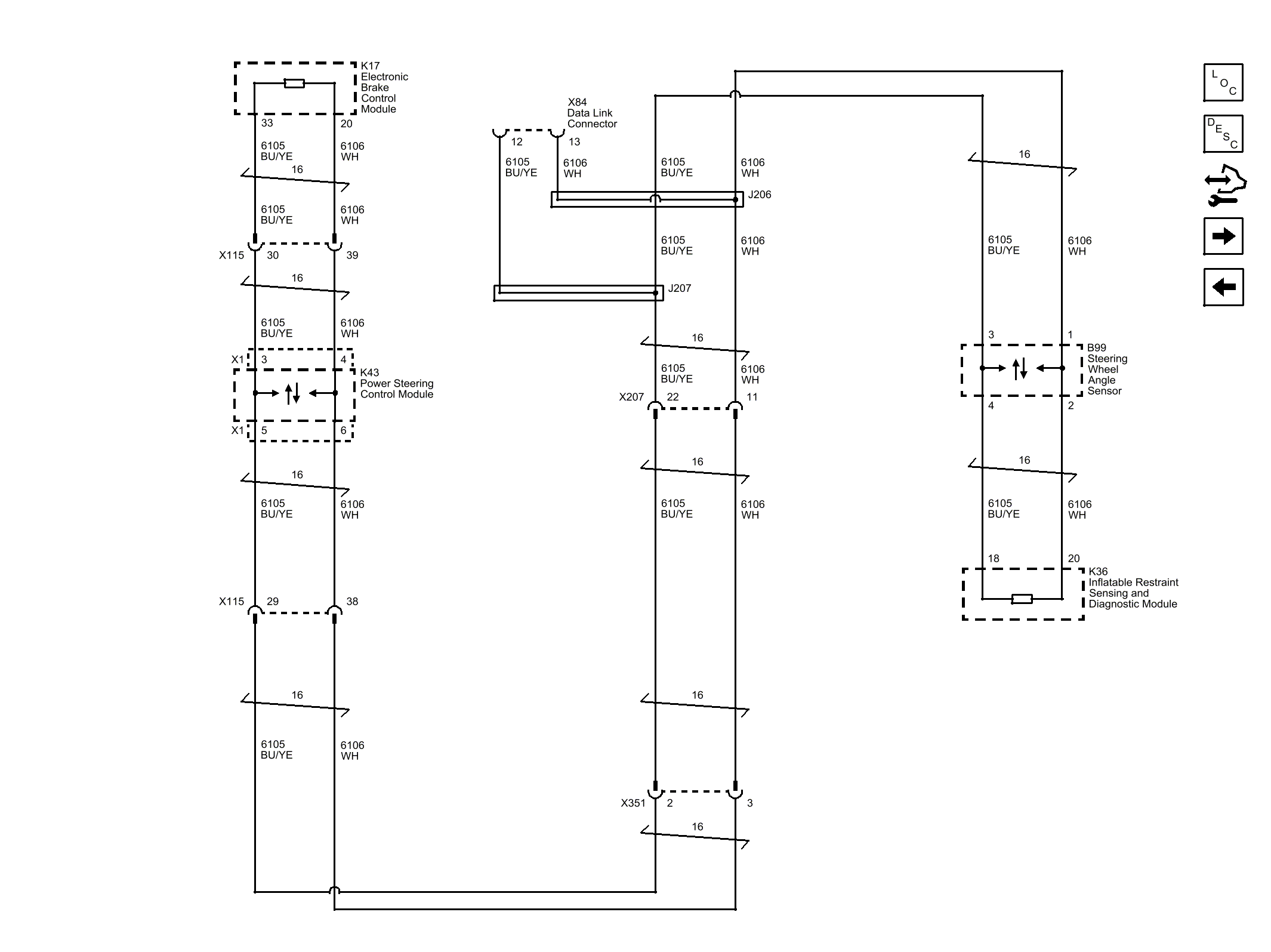

Fig 1: Chassis Expansion BUS Wiring Schematic

GM3601851

Courtesy of GENERAL MOTORS COMPANY
