Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LS7)

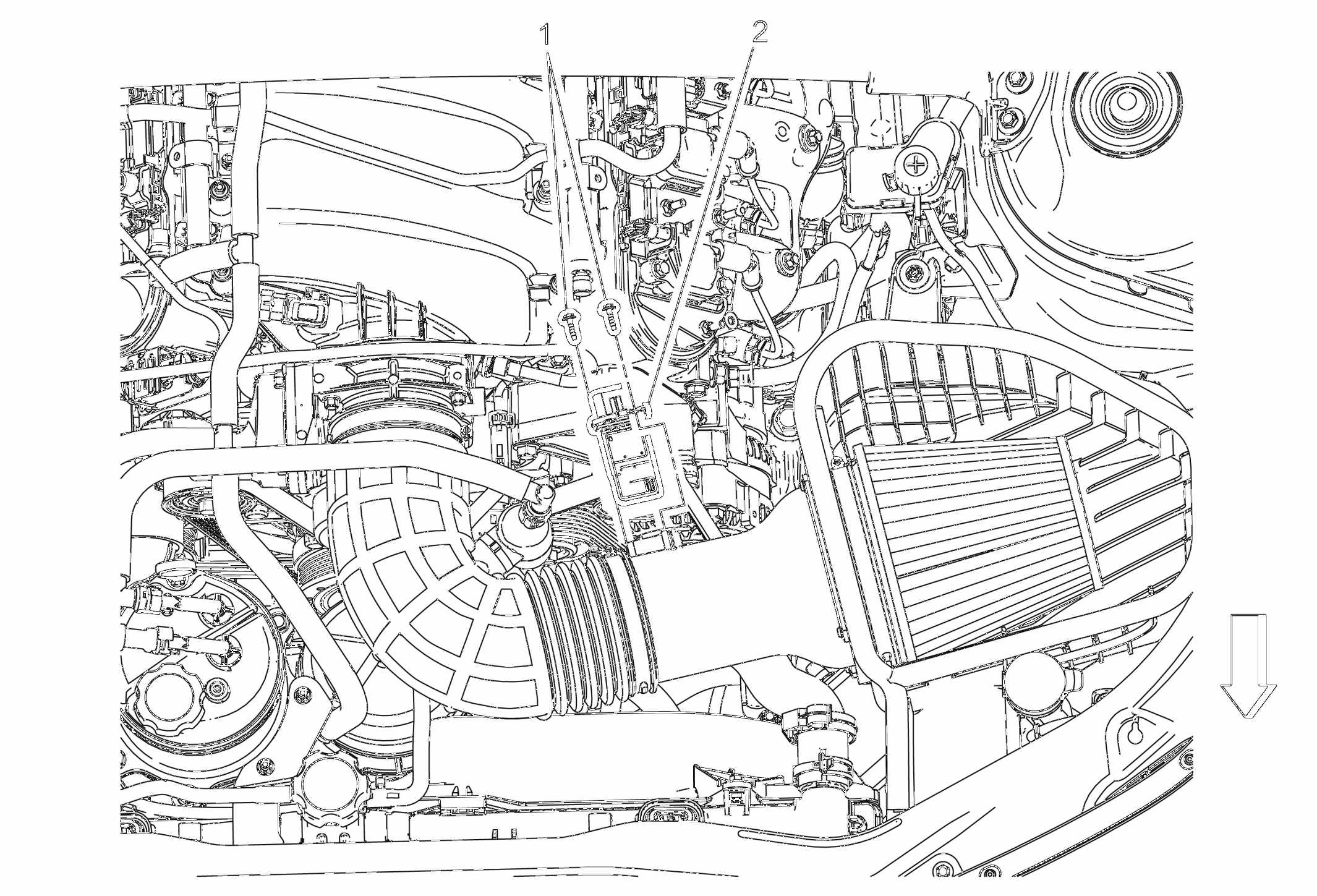

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor (LS7)
GM3654727Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow with Intake Air Temperature Sensor Fasteners (Qty:2)
CAUTION:

Refer to Fastener Caution .
2 Mass Airflow with Intake Air Temperature Sensor
Procedure
Disconnect the electrical connector.
