Home >> Chevrolet >> 2014 >> Camaro LS, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 3.6L - Wiring Schematic Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics (LFX) >> Module Power, Ground, Serial Data, and MIL

Module Power, Ground, Serial Data, and MIL

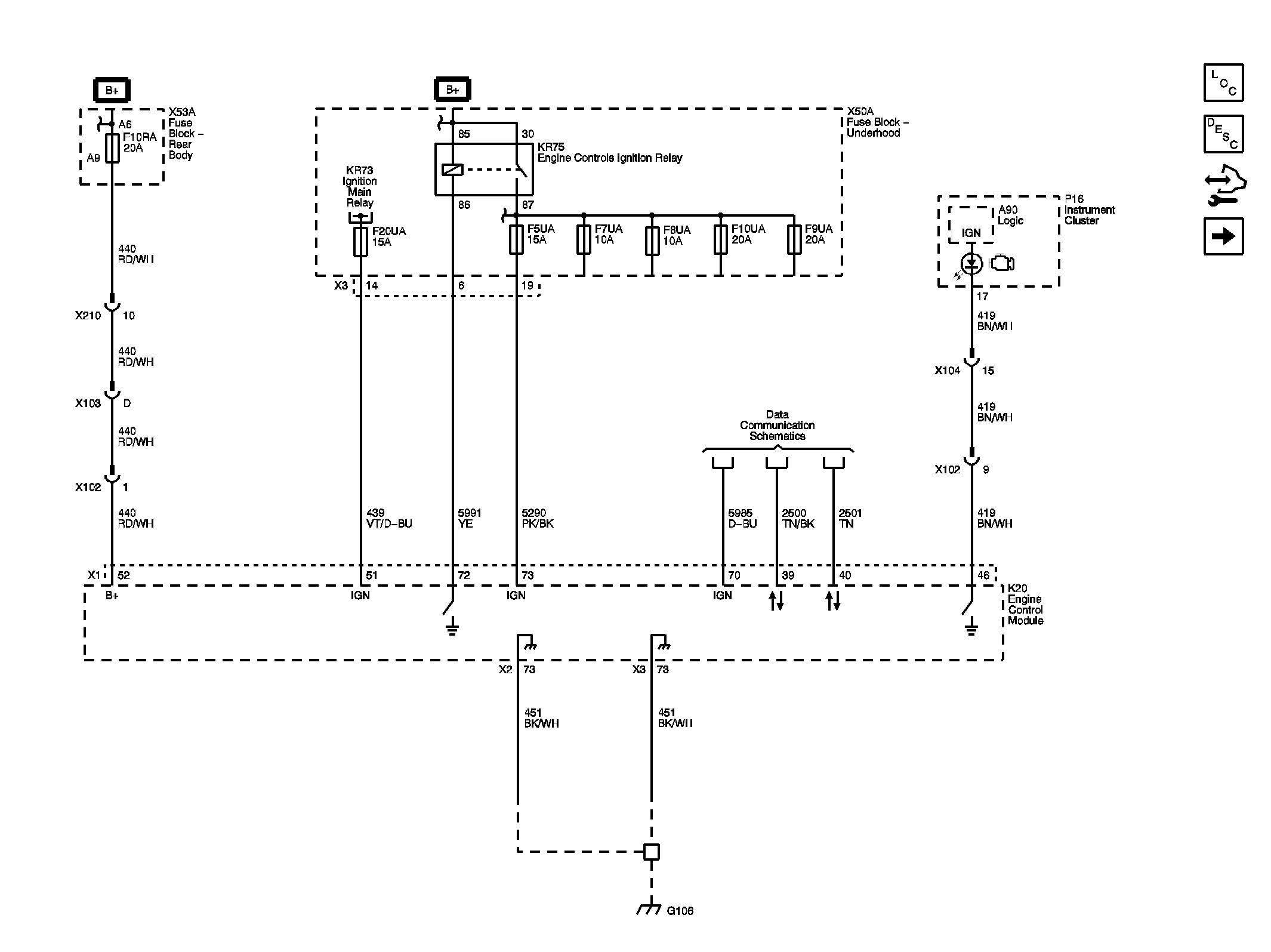

Fig 1: Module Power, Ground, Serial Data, and MIL

GM3339115

Courtesy of GENERAL MOTORS COMPANY
