Front Side Door Window Inner Sealing Strip Replacement

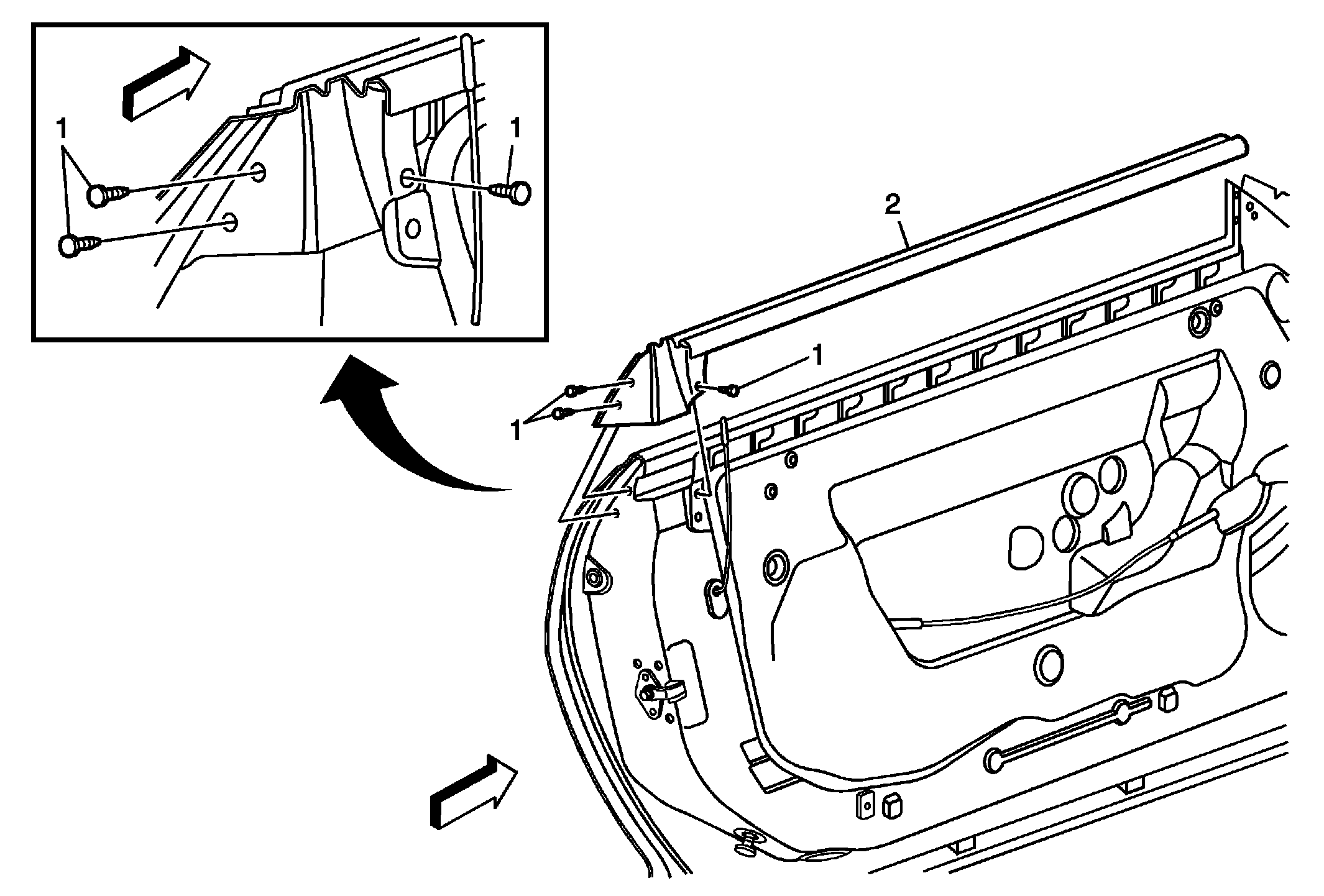

Fig 1: Front Side Door Window Inner Sealing Strip And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Window Inner Sealing Strip Retainers (Qty:3)
2	Front Side Door Window Inner Sealing Strip Procedure  Inspect the door for proper operation before installing the door trim panel. TIP:  Pull up and away from inner panel to remove from the door.
