Charger Door Release Switch Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

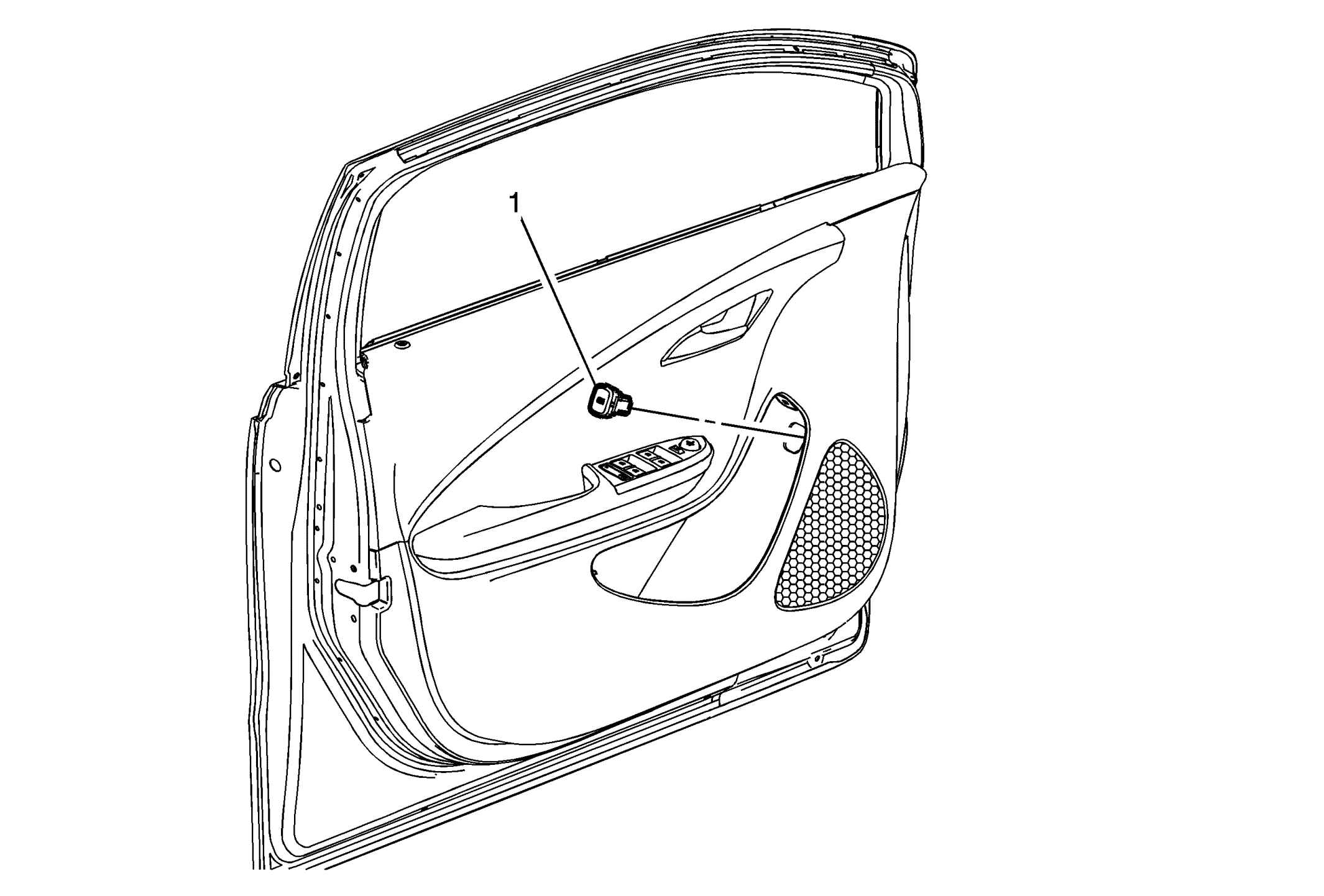

Fig 1: Charger Door Release Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver door trim panel. Refer to Front Side Door Trim Replacement
1	Charger Door Release Switch Procedure Push in on the integral tabs from the inside of the door trim panel. Push outward to release the switch from the door trim panel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the driver door trim panel. Refer to Front Side Door Trim Replacement

Charger Door Release Switch

Procedure

Push in on the integral tabs from the inside of the door trim panel. Push outward to release the switch from the door trim panel.
Disconnect the electrical connector.
