Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

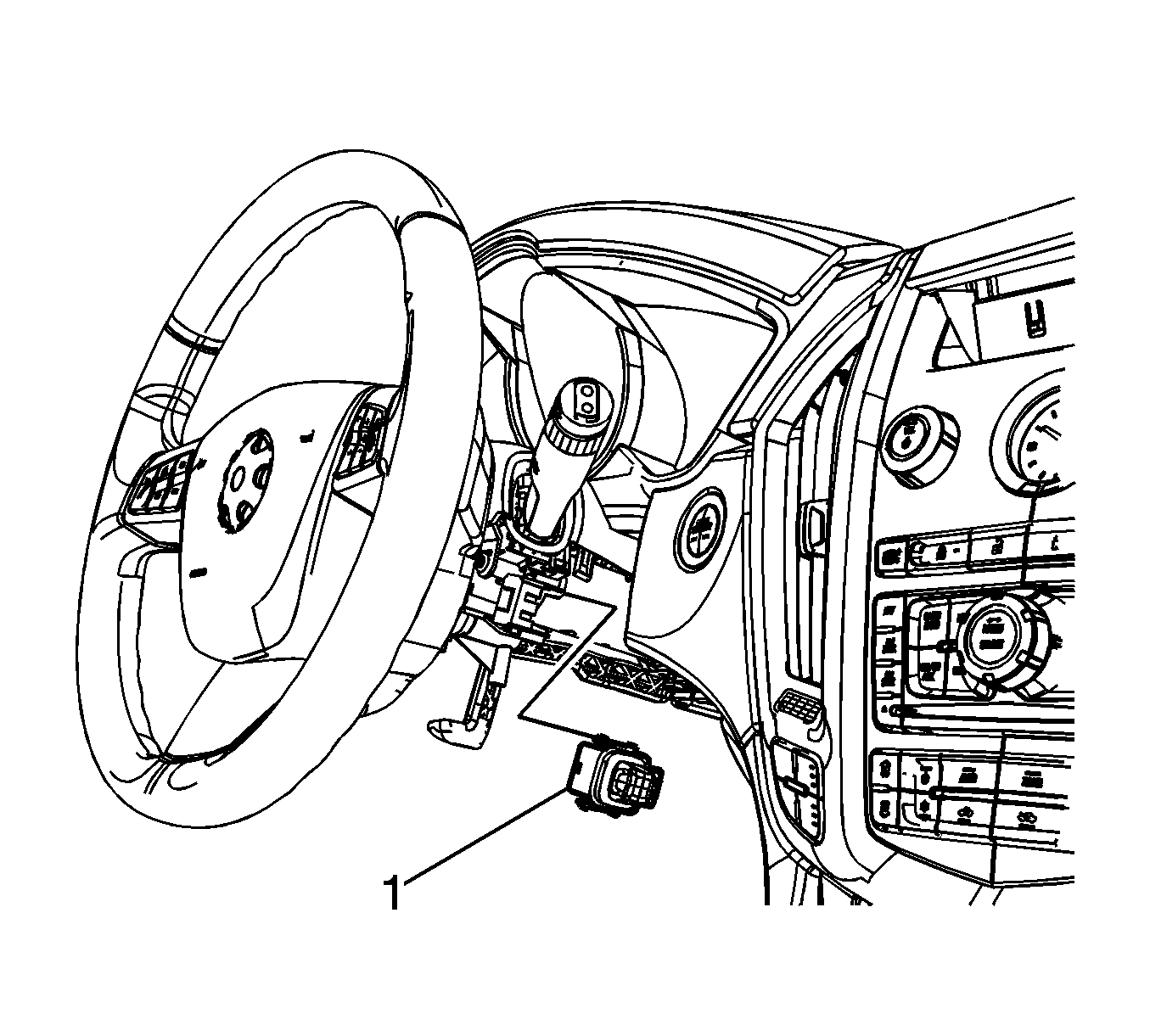

    Fig 1: Identifying Brake & Accelerator Pedal Adjuster Switch Electrical Connector
    GM2247889Courtesy of GENERAL MOTORS CORP.
  1. Install the adjuster switch (1) to the steering column.
    2. NOTE: Ensure the brake and accelerator pedal adjuster switch harness is correctly routed and secure.
  2. Connect the brake and accelerator pedal adjuster switch electrical connector.

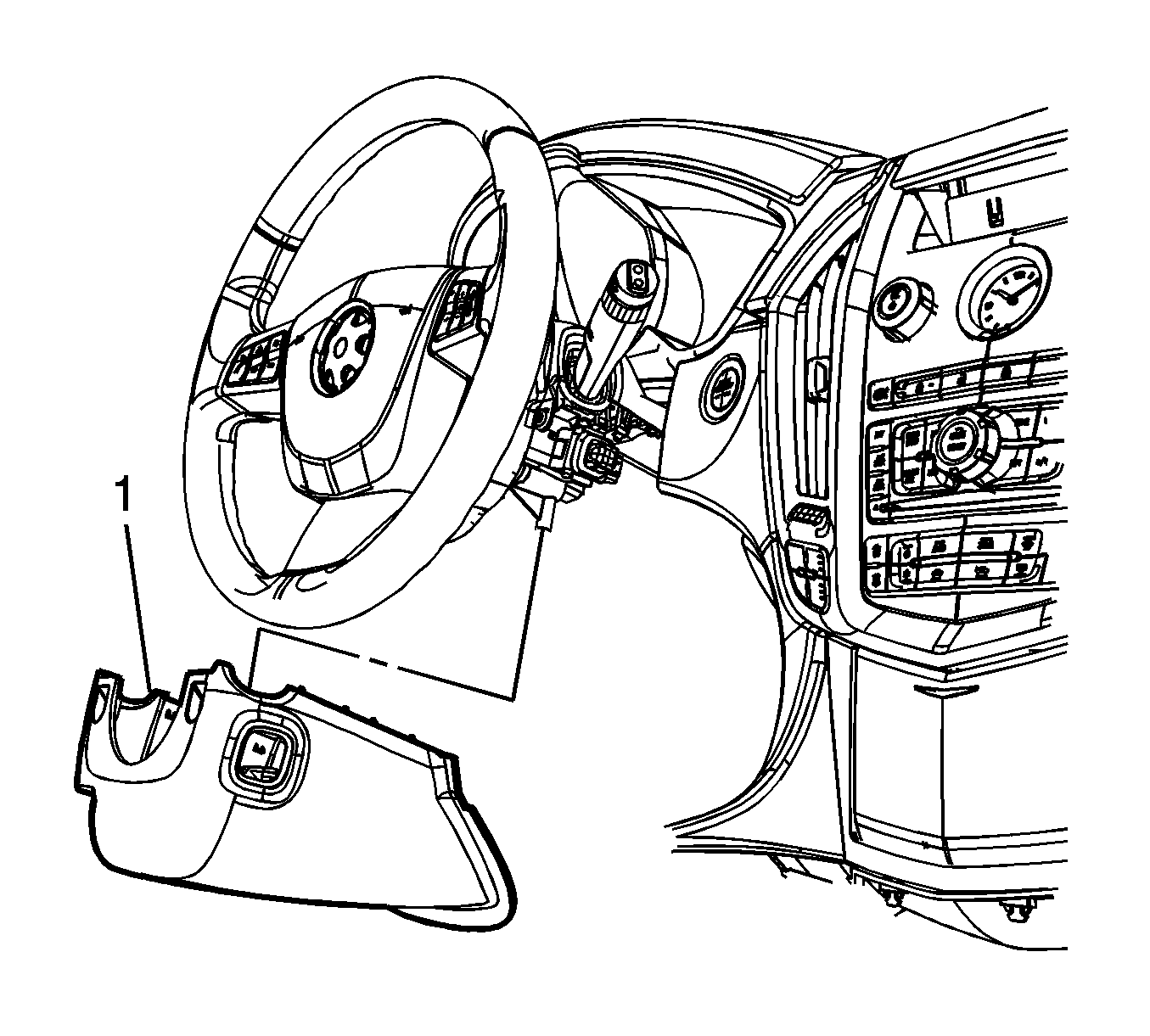

    3. Fig 2: Identifying Lower Steering Column Shroud
    GM2247885Courtesy of GENERAL MOTORS CORP.
  3. Install the lower steering column shroud (1). Refer to Steering Column Shroud Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
