Engine Cooling Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

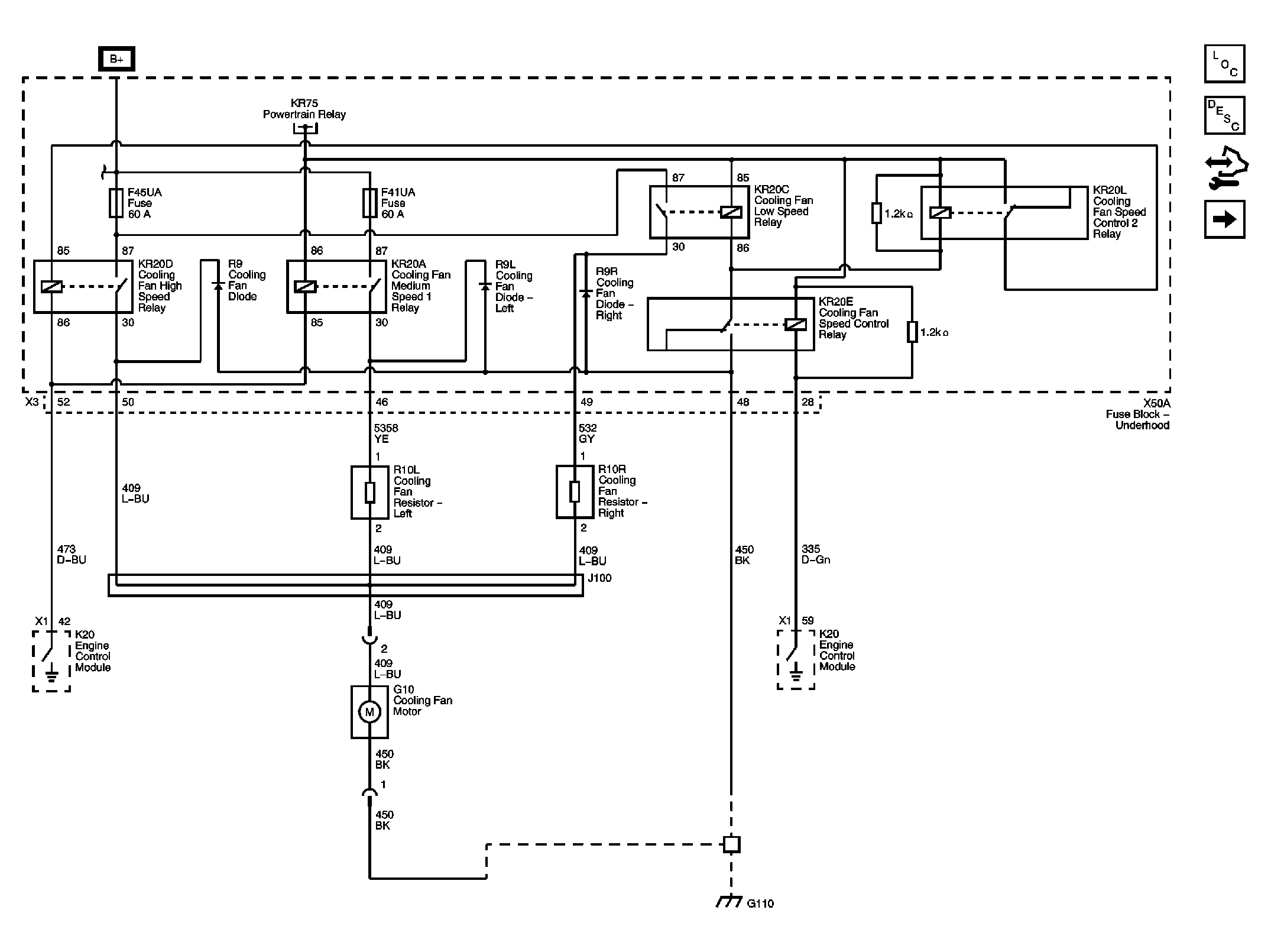

Fig 1: Cooling Fan Circuit Schematic (LF1)

Courtesy of GENERAL MOTORS CORP.

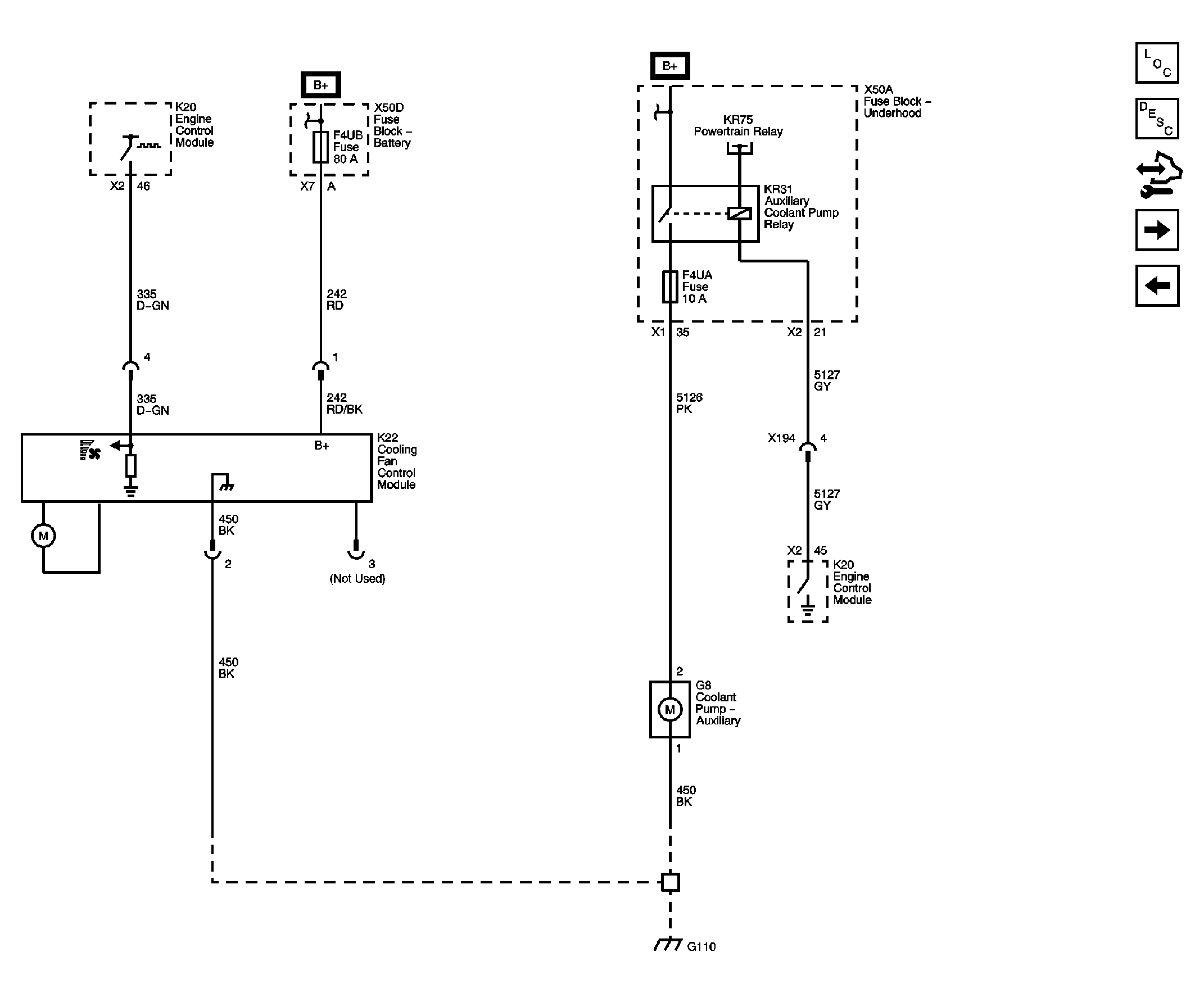

Fig 2: Cooling Fan Circuit Schematic (LAU)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Coolant Level Switch Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
