Stability Control

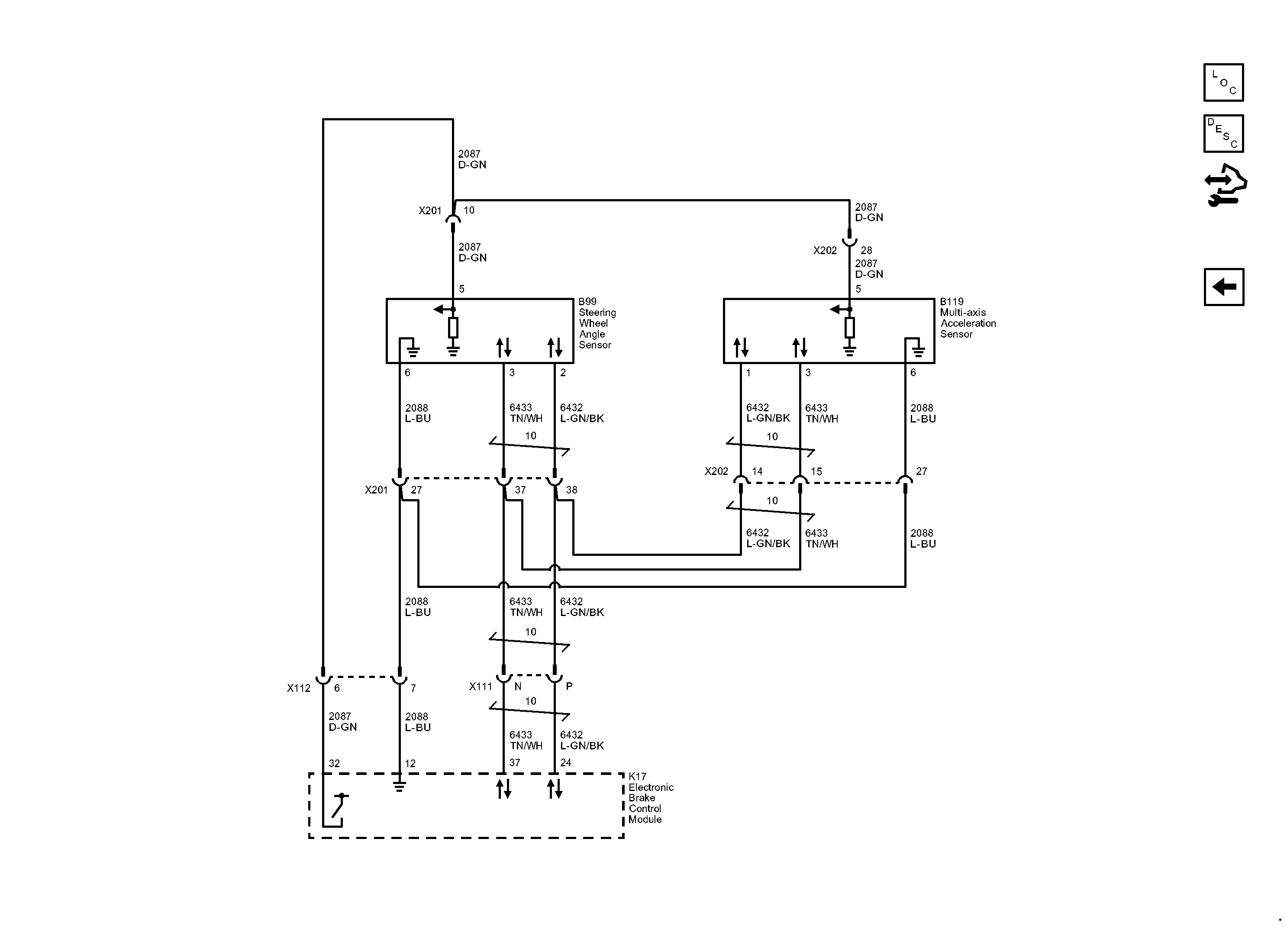

Fig 1: Stability Control Wiring Schematic

GM2867206

Courtesy of GENERAL MOTORS COMPANY
