Memory Module Power and Serial Data, and Driver Switches (AG3)

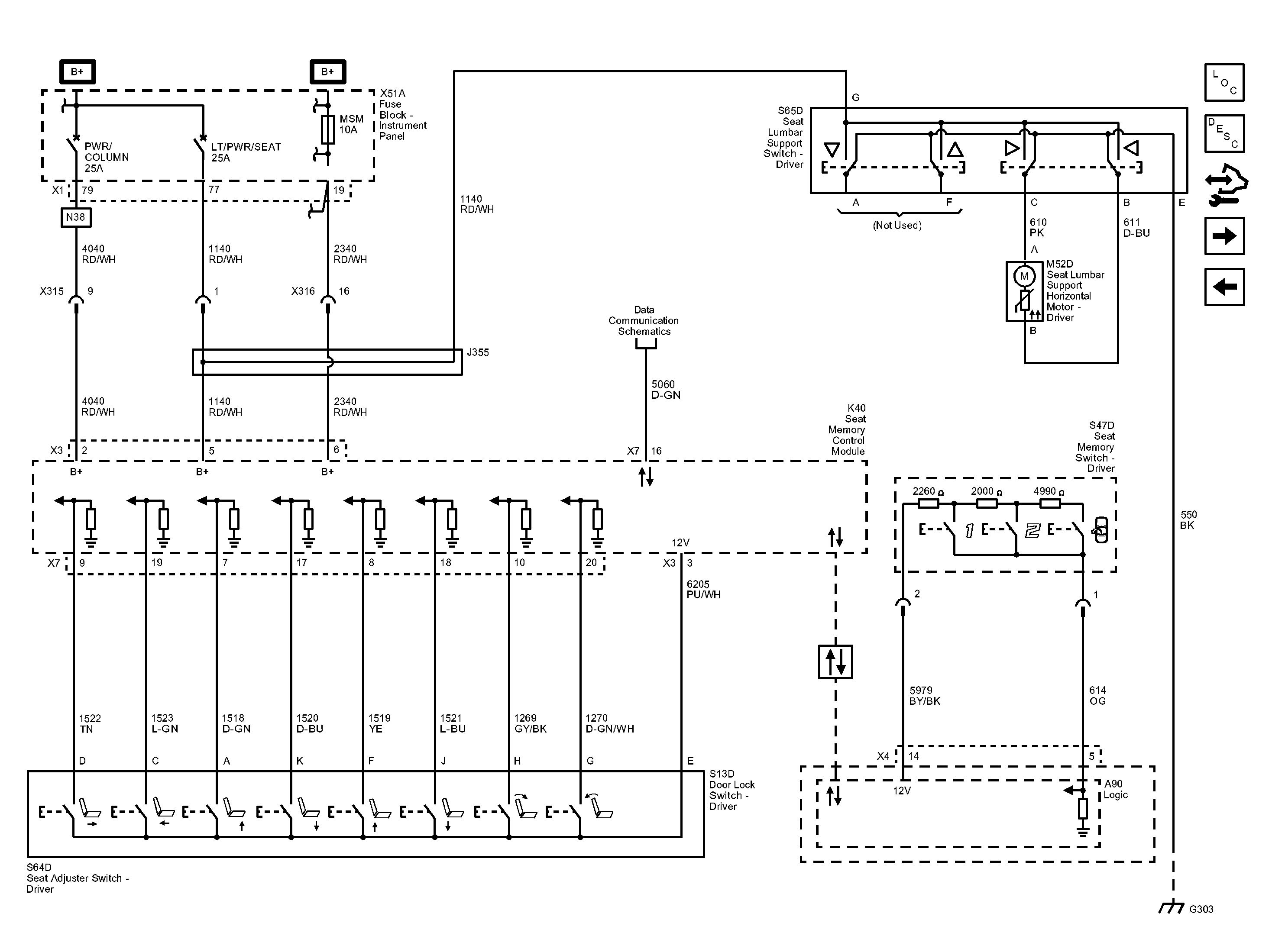

Fig 1: Memory Module Power And Serial Data And Driver Switches (AG3) Wiring Schematic

GM2868173

Courtesy of GENERAL MOTORS COMPANY
