Home >> Chevrolet >> 2013 >> Traverse LS, AWD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic and Routing Diagrams >> Immobilizer Schematics >> Immobilizer

Immobilizer Schematics: Immobilizer

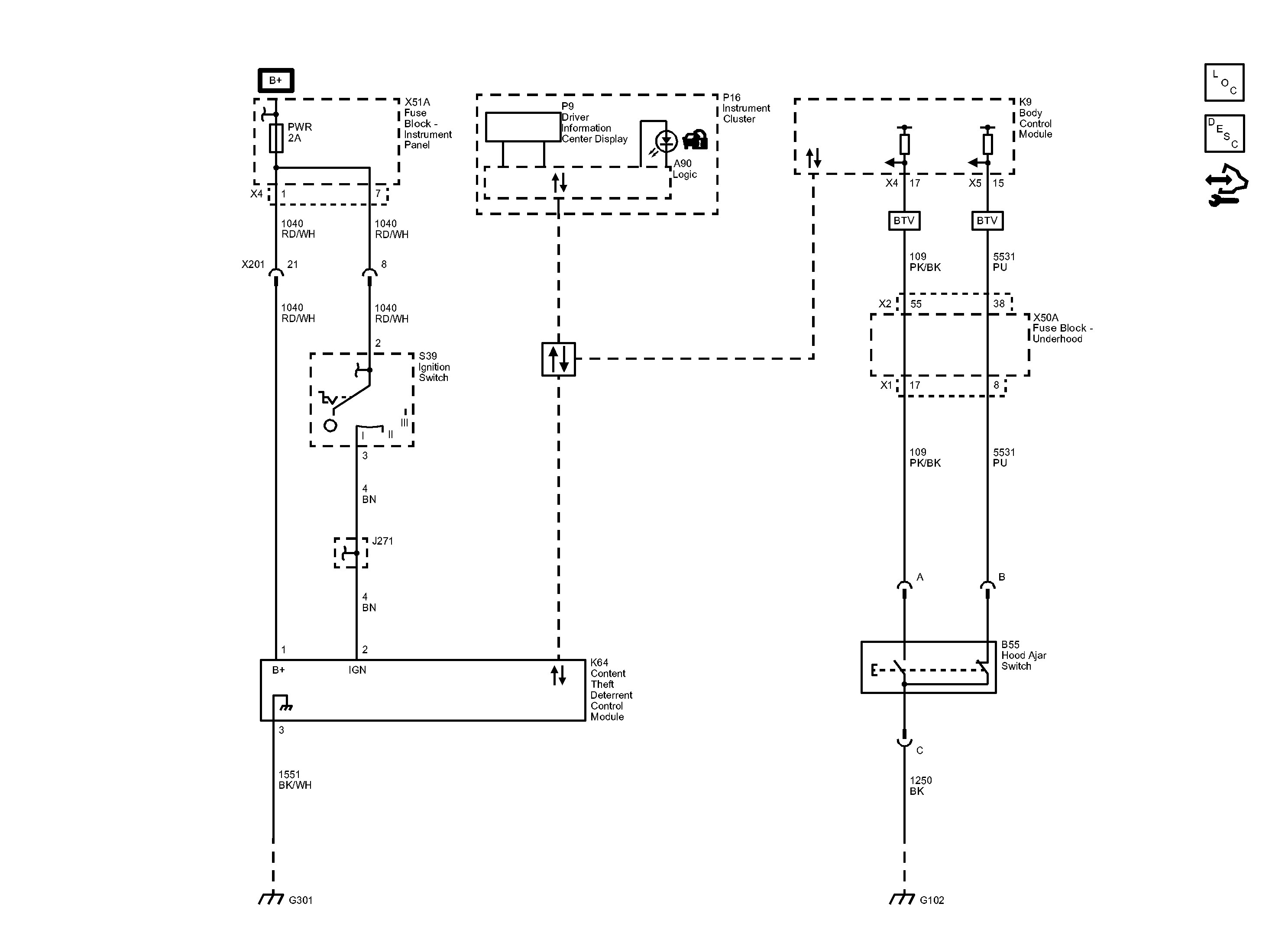

Fig 1: Immobilizer Wiring Schematic

GM2868130

Courtesy of GENERAL MOTORS COMPANY
