Input Speed Sensor Replacement

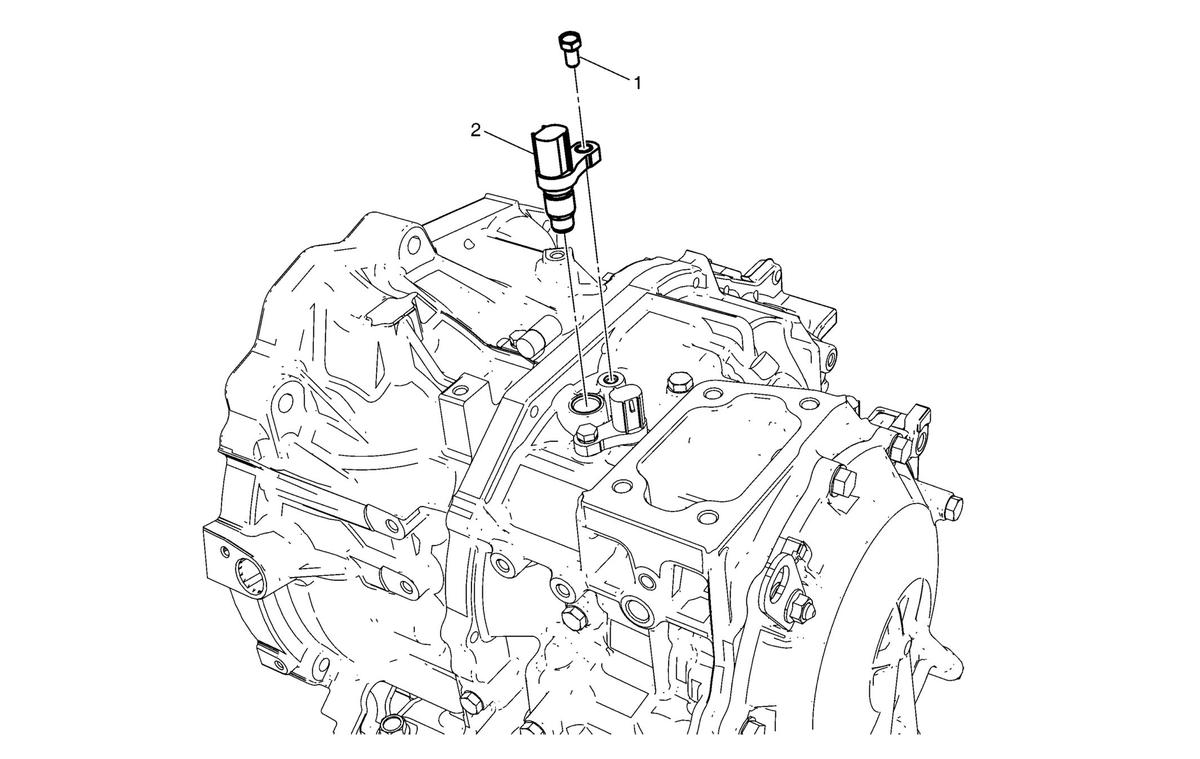

Fig 1: Input Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Input Speed Sensor Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Procedure Disconnect the input speed sensor electrical connector. Tighten 5 (44 lb in)
2	Input Speed Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

Input Speed Sensor Bolt (Qty: 1)

CAUTION:

Procedure
Disconnect the input speed sensor electrical connector.
Tighten
5 (44 lb in)

Input Speed Sensor
