High Mount Stop Lamp Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY High Mount Stop Lamp Replacement

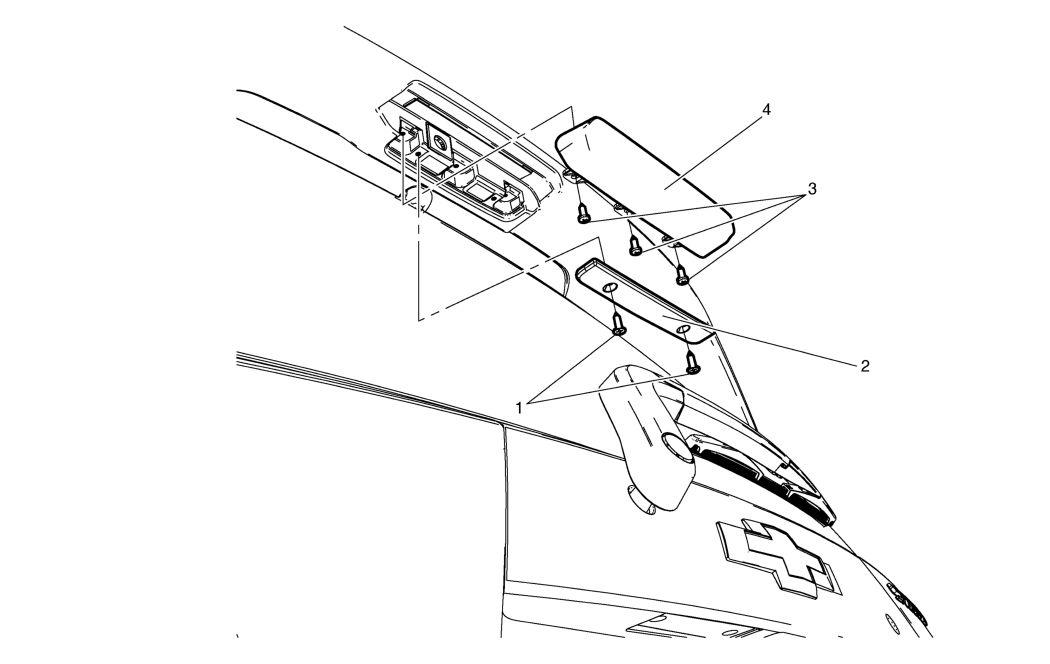

| Callout |
Component Name |
| 1 |
High Mount Stop Lamp Cover Screw (Qty: 2) |
| 2 |
High Mount Stop Lamp Cover |
| 3 |
High Mount Stop Lamp Screw (Qty: 3) |
| 4 |
High Mount Stop Lamp Assembly
Procedure
Disconnect the electrical connector at the high mount stop lamp. |
