Airbag Sensing and Diagnostic Module Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

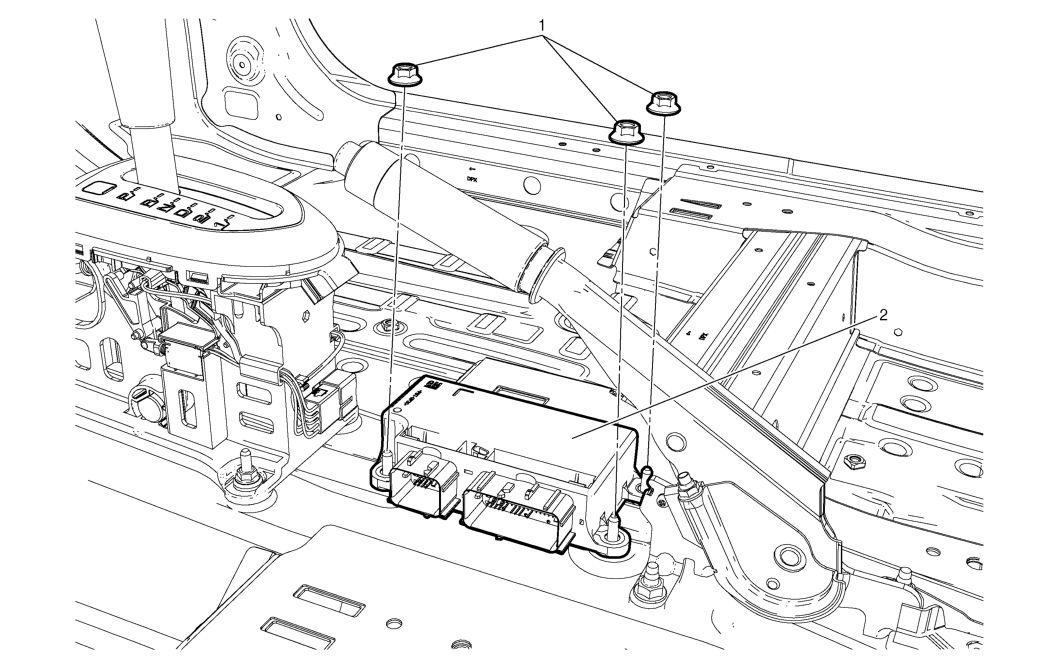

Fig 1: Airbag Sensing and Diagnostic Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the instrument panel lower trim panel. Refer to Front Floor Console Replacement . Disconnect the electrical connector.
1	Inflatable Restraint Sensing and Diagnostic Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the instrument panel lower trim panel. Refer to Front Floor Console Replacement .
Disconnect the electrical connector.

Inflatable Restraint Sensing and Diagnostic Module Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
