Power, Ground, and Low Speed GMLAN Wiring Schematics

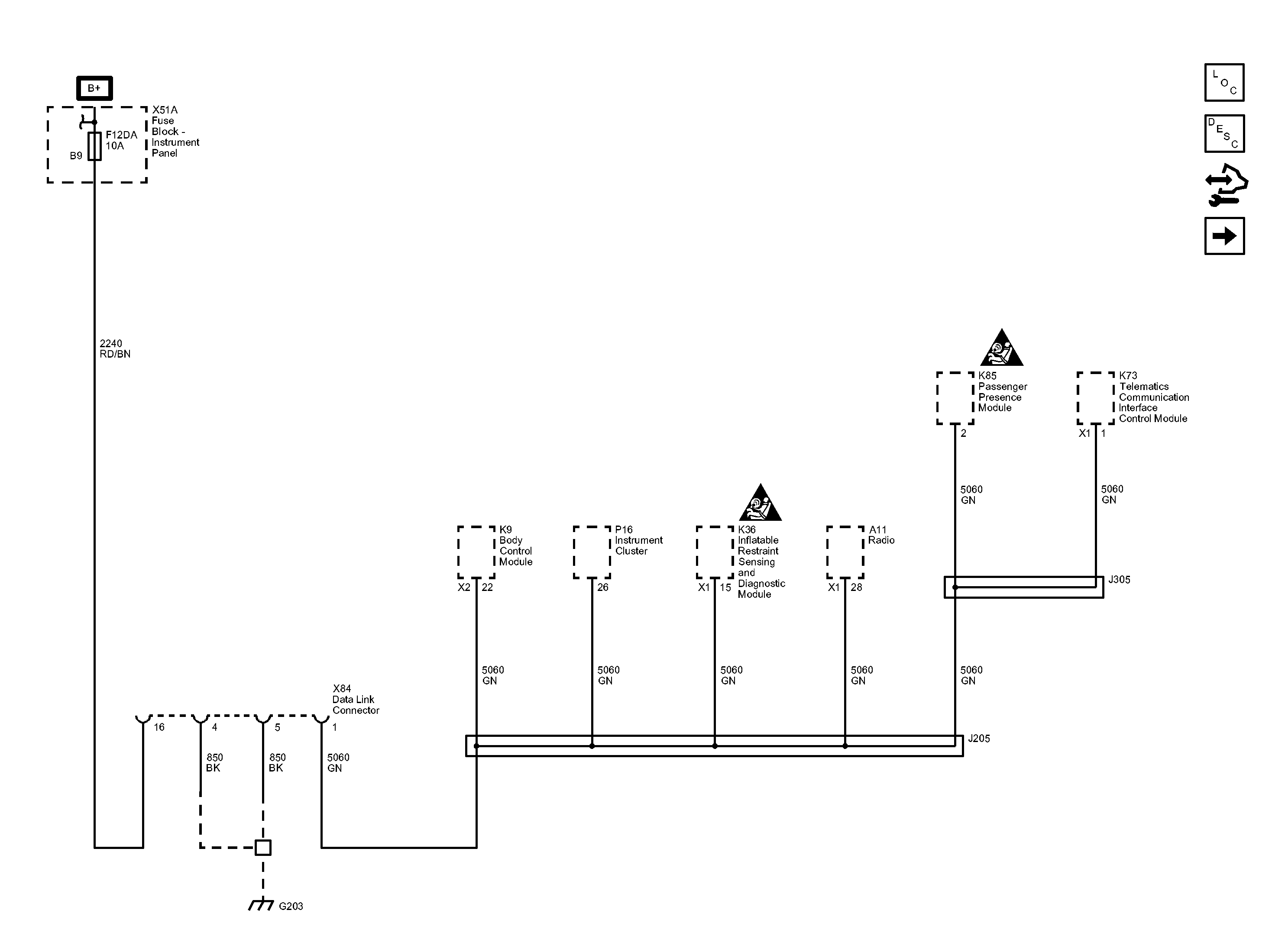

Fig 1: Power, Ground, and Low Speed GMLAN Wiring Schematics

GM2742969

Courtesy of GENERAL MOTORS COMPANY
