Module Power, Ground, and Subsystem References Wiring Schematics

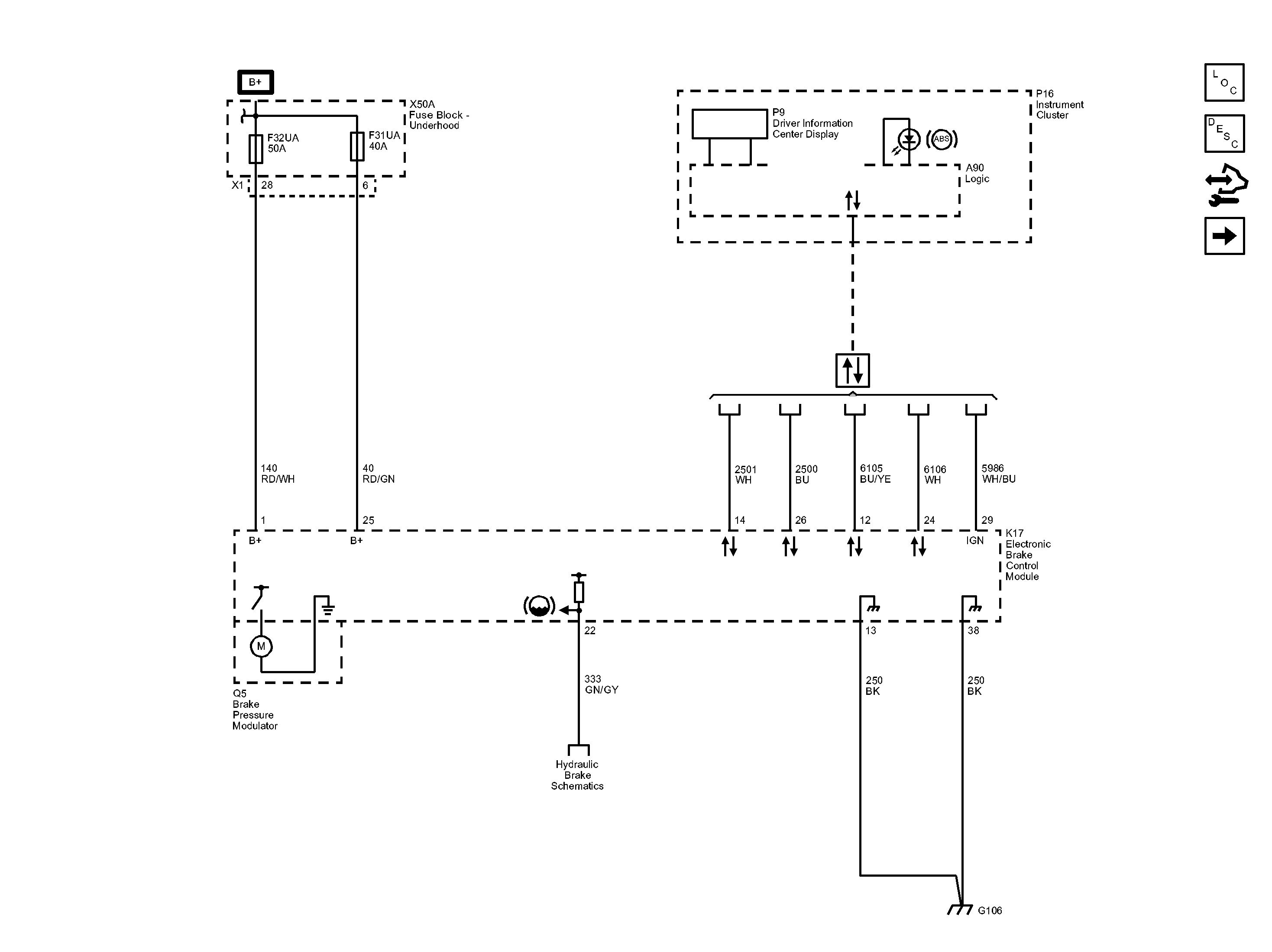

Fig 1: Module Power, Ground, and Subsystem References Wiring Schematics

GM2742878

Courtesy of GENERAL MOTORS COMPANY
