Ignition and Start Switch Replacement

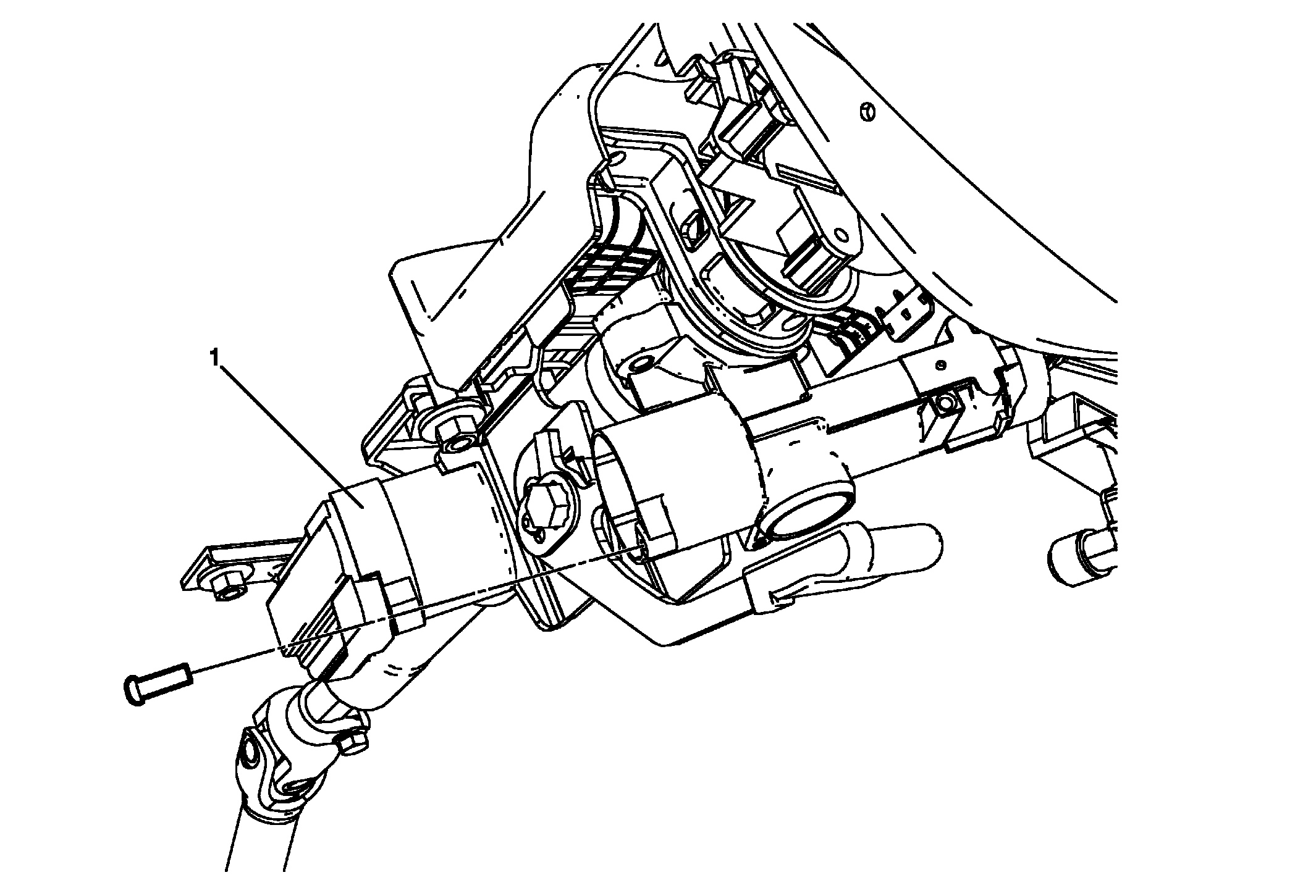

Fig 1: Ignition And Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column lower cover trim. Refer to Steering Column Lower Trim Cover Replacement .
1	Ignition and Start Switch WARNING: Refer to Battery Disconnect Warning . Procedure Disconnect the electrical connections. Remove screw of ignition switch and then remove ignition switch.

Callout

Component Name

Preliminary Procedure
Remove the steering column lower cover trim. Refer to Steering Column Lower Trim Cover Replacement .

Ignition and Start Switch

WARNING:

Procedure
