Radio Replacement (With U58)

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

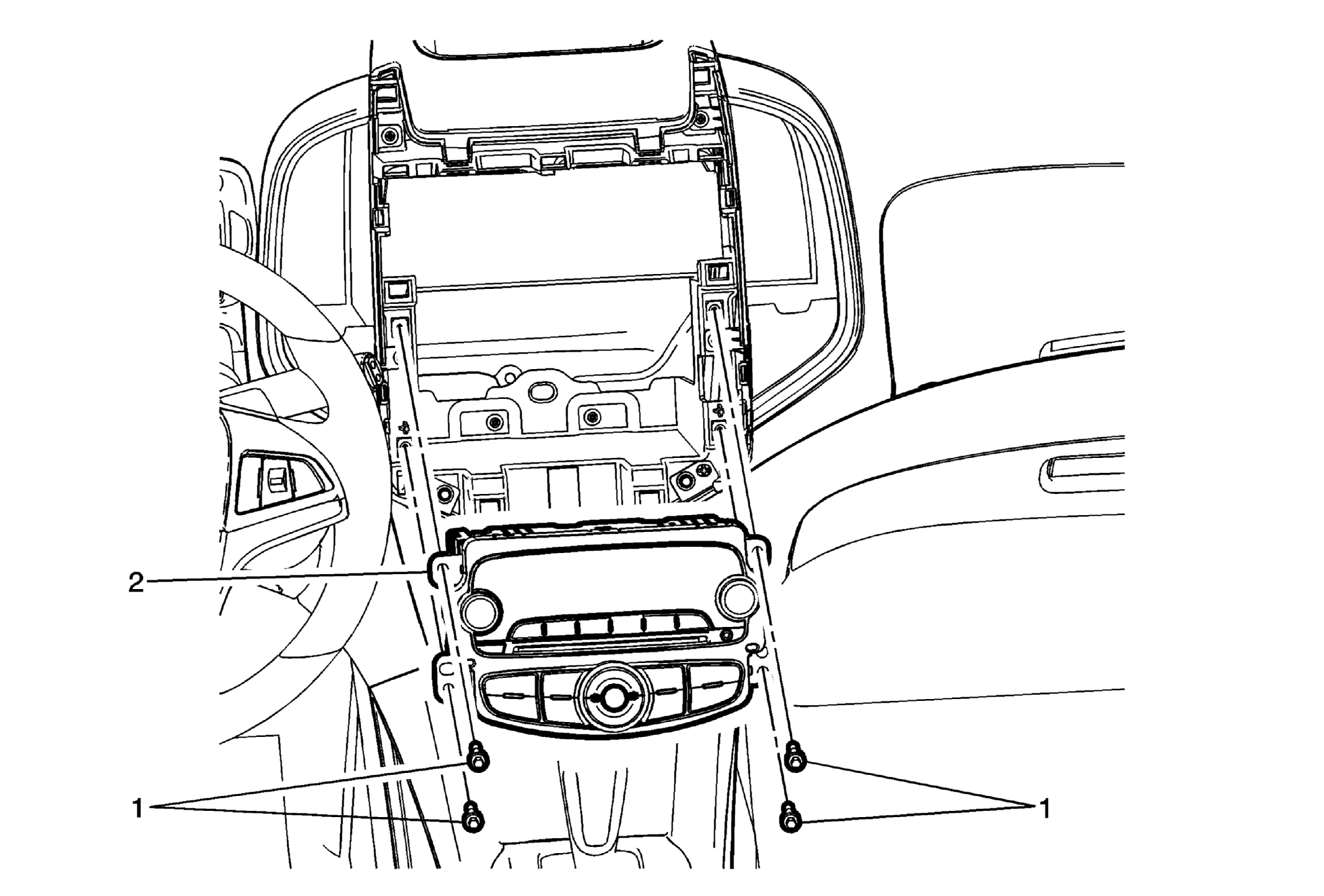

Fig 1: Radio & Bolts (With U58)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement (With U58) .
1	Radio Bolts (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement (With U58) .

Radio Bolts (Qty: 4)

CAUTION: Refer to Fastener Caution .

Radio Assembly

Procedure

Disconnect the electrical connections.
Refer to Control Module References for programming and setup information.
