Door Lock Switch Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

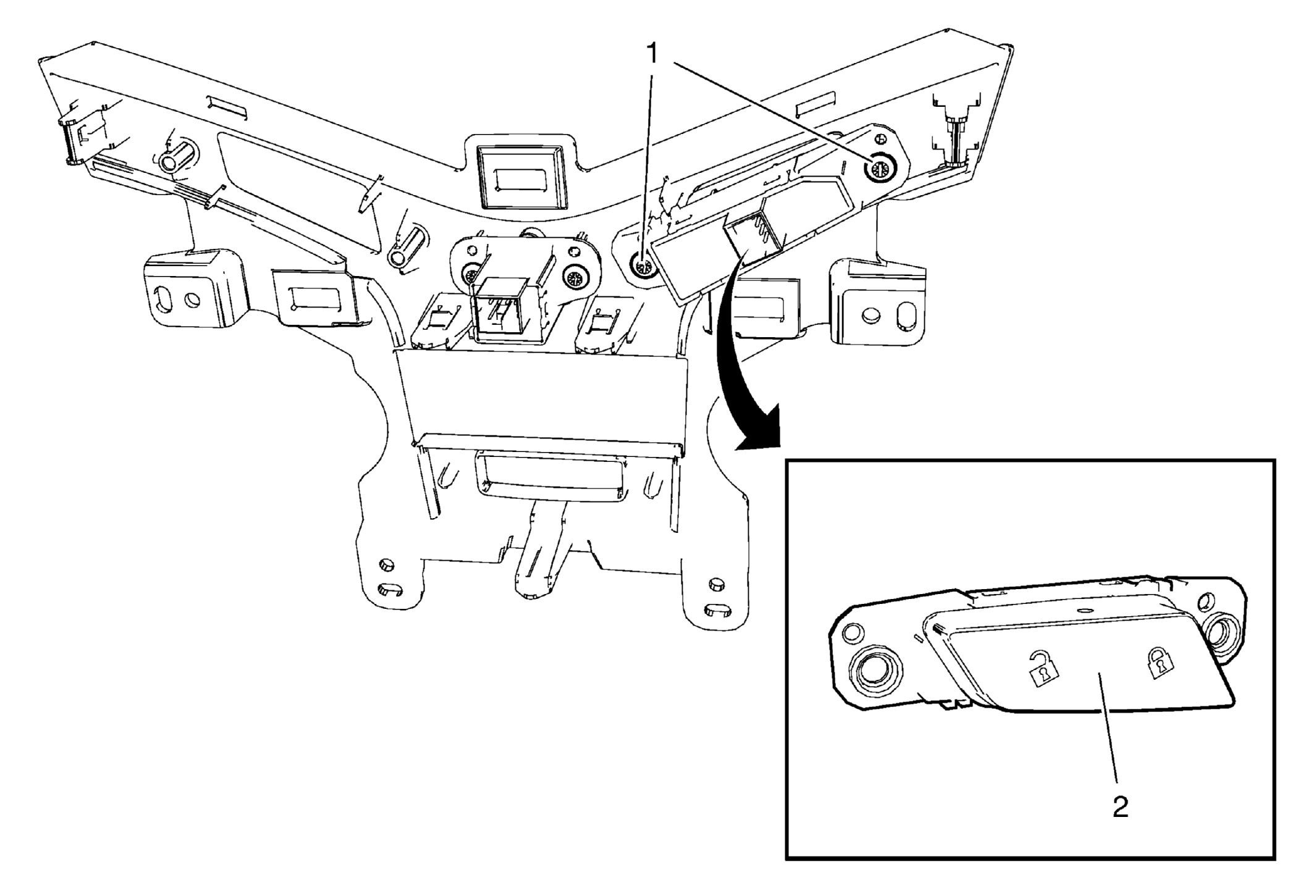

Fig 1: Door Lock Switch And Screws
GM2027207Courtesy of GENERAL MOTORS COMPANY
Door Lock Switch Replacement

Callout Component Name
Preliminary Procedures
Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1 Door Lock Switch Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Door Lock Switch
Procedure
Disconnect electrical connector.
