Power, Ground, Data Communications and Subsystem References (1 of 5)

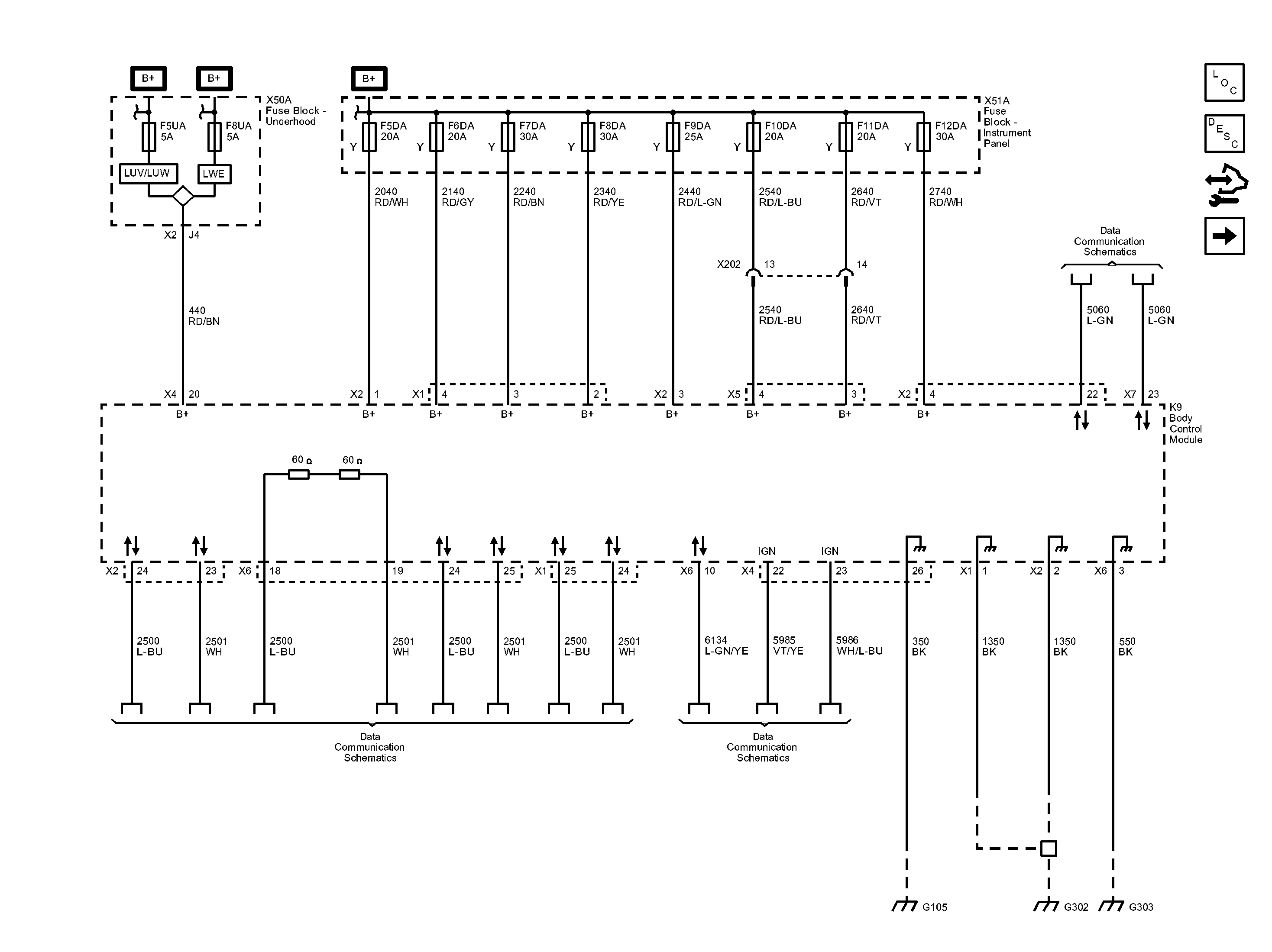

Fig 1: Power, Ground, Data Communications and Subsystem References Wiring Schematic (1 of 5)

GM2782330

Courtesy of GENERAL MOTORS COMPANY
