Charge Air Cooler Replacement

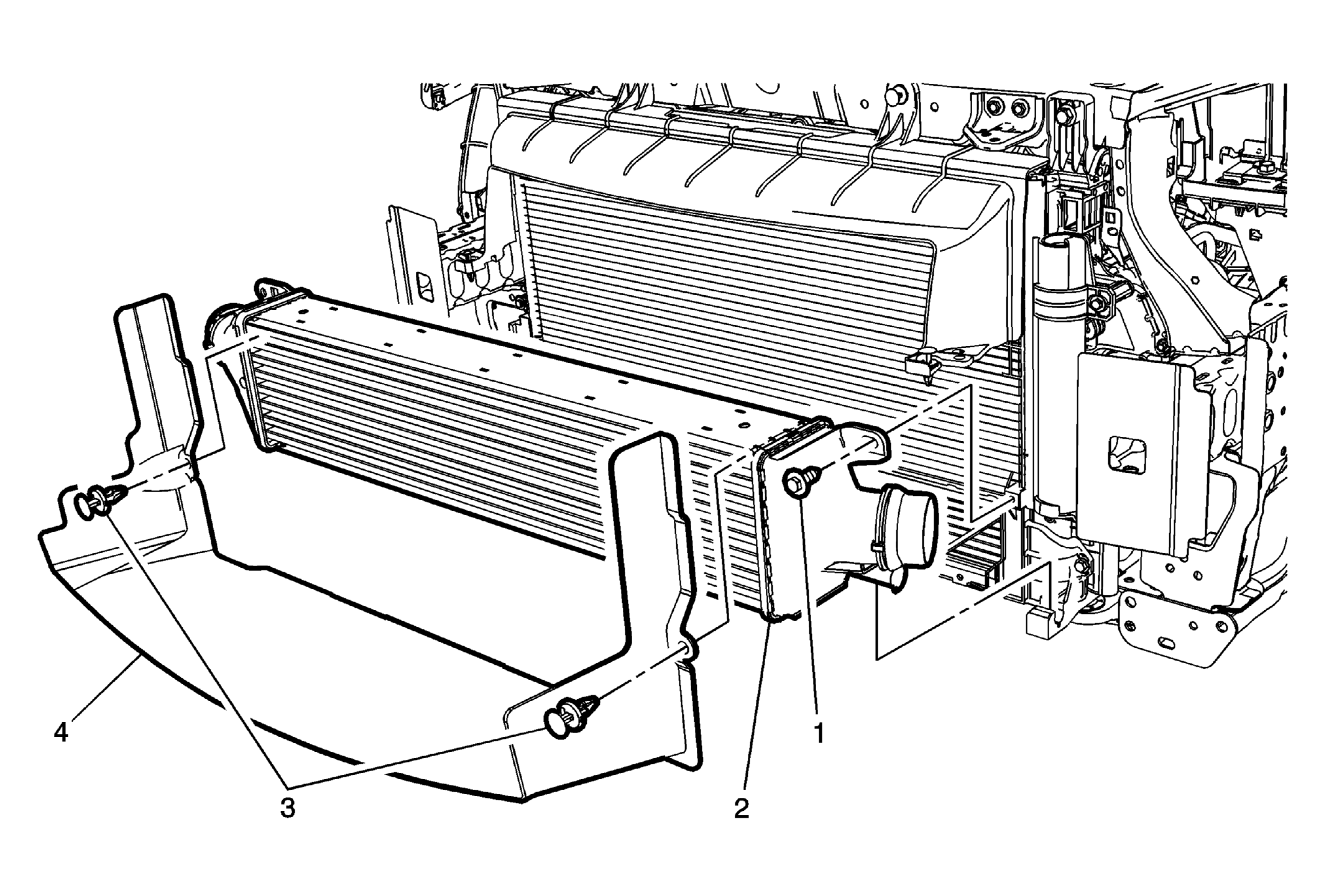

Fig 1: Charge Air Cooler & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front fascia. Refer to Front Bumper Fascia Replacement . Disconnect the charge air cooler inlet duct from the charge air cooler. Refer to Charge Air Cooler Inlet Air Hose Replacement . Disconnect the charge air cooler outlet front duct from the charge air cooler. Refer to Charge Air Cooler Outlet Air Hose Replacement .
1	Charge Air Cooler Fastener (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Cooler Procedure Pull the charge air cooler upward to release the cooler from the rubber grommets.
3	Charge Air Cooler Air Deflector Fasteners (Qty 2) Procedure Remove the charge air cooler air deflector fasteners.
4	Charge Air Cooler Air Deflector
