Rear Side Door Window Rear Guide Replacement

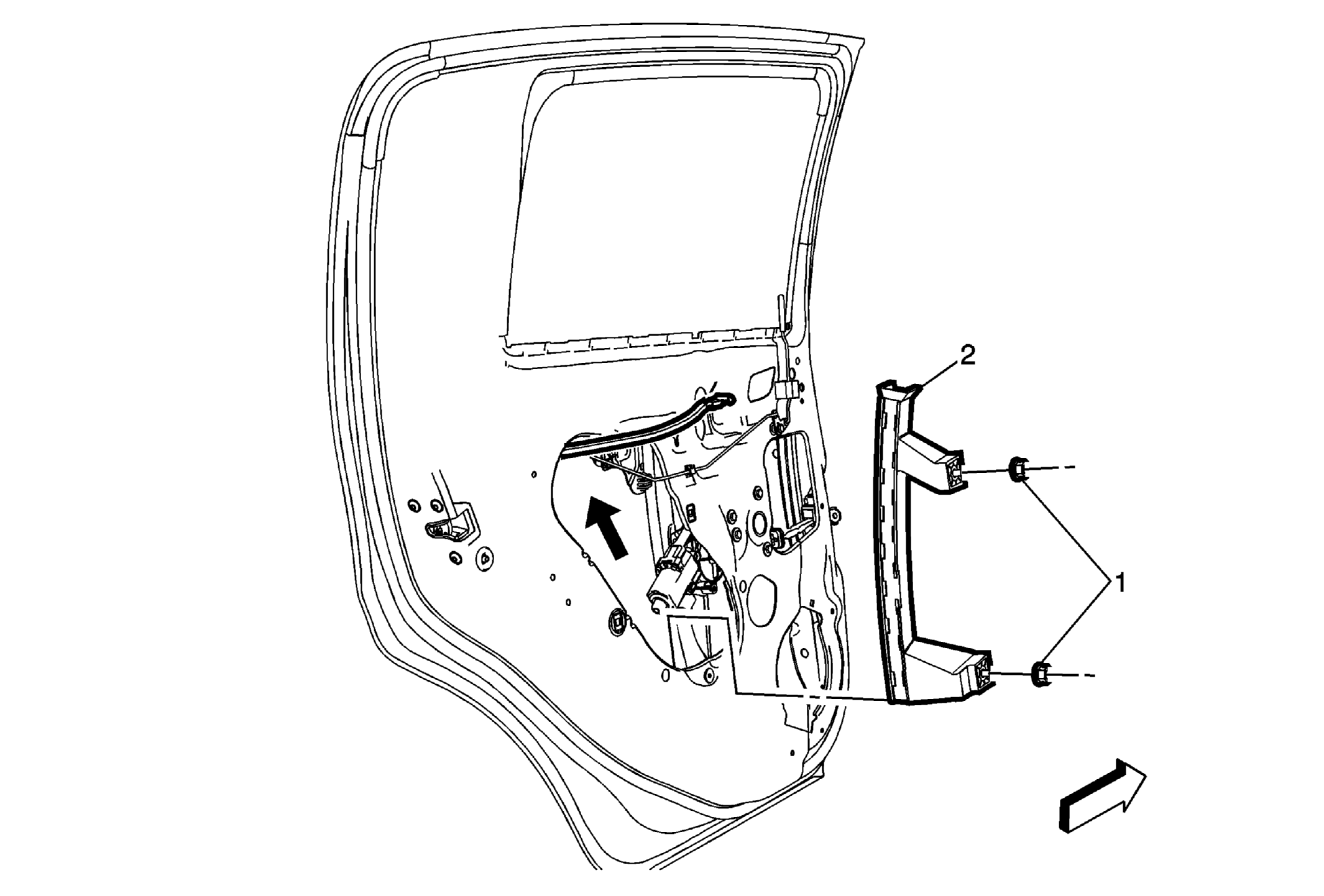

Fig 1: Rear Side Door Window Rear Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement (Sedan) , Rear Side Door Trim Replacement (Hatchback) .
1	Rear Side Door Window Rear Guide Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Do Not remove the window from the vehicle, raise the window to the fully up position. Pull the weatherstrip out from the inner channel of the guide. Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Rear Guide TIP: Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

Rear Side Door Window Rear Guide Nut (Qty: 3)

CAUTION:

Procedure

Remove the rear side door water deflector.
Do Not remove the window from the vehicle, raise the window to the fully up position.
Pull the weatherstrip out from the inner channel of the guide.

Tighten
11 N.m (97 lb in)

Rear Side Door Window Rear Guide
TIP: Inspect the door window for proper operation before installing the door trim panel.
