Blower Motor Control Module Replacement

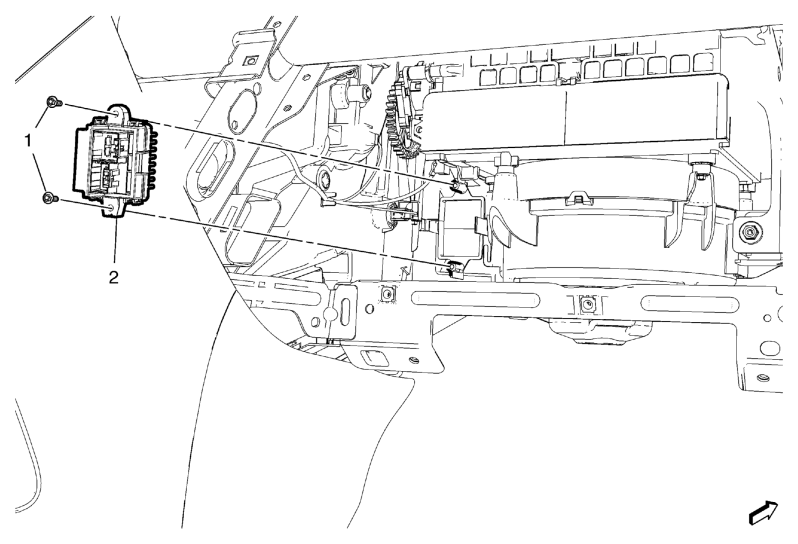

Fig 1: Blower Motor Control Module (Left Hand Drive)
GM2501272Courtesy of GENERAL MOTORS COMPANY
Blower Motor Control Module Replacement

Callout Component Name
Preliminary Procedures
Remove the floor front air outlet duct - right side. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
1 Blower Motor Control Module Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Blower Motor Control Module
Procedure
Disconnect electrical connector.
