Subsystem References (2 of 3) Wiring Schematics

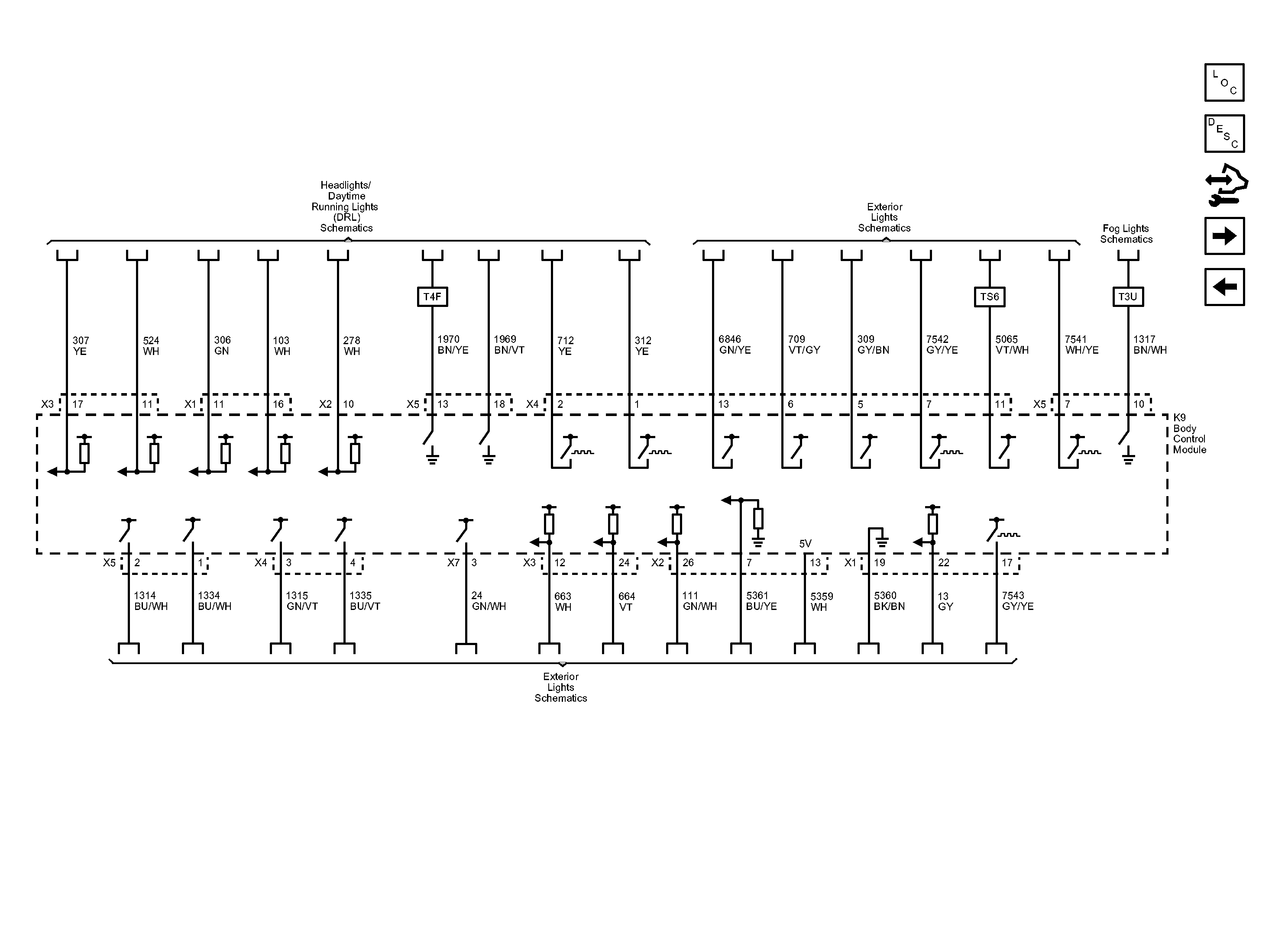

Fig 1: Subsystem References (2 of 3) Wiring Schematics

GM2727303

Courtesy of GENERAL MOTORS COMPANY
